RN120L-GKPSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN12#,VZN120..JPP

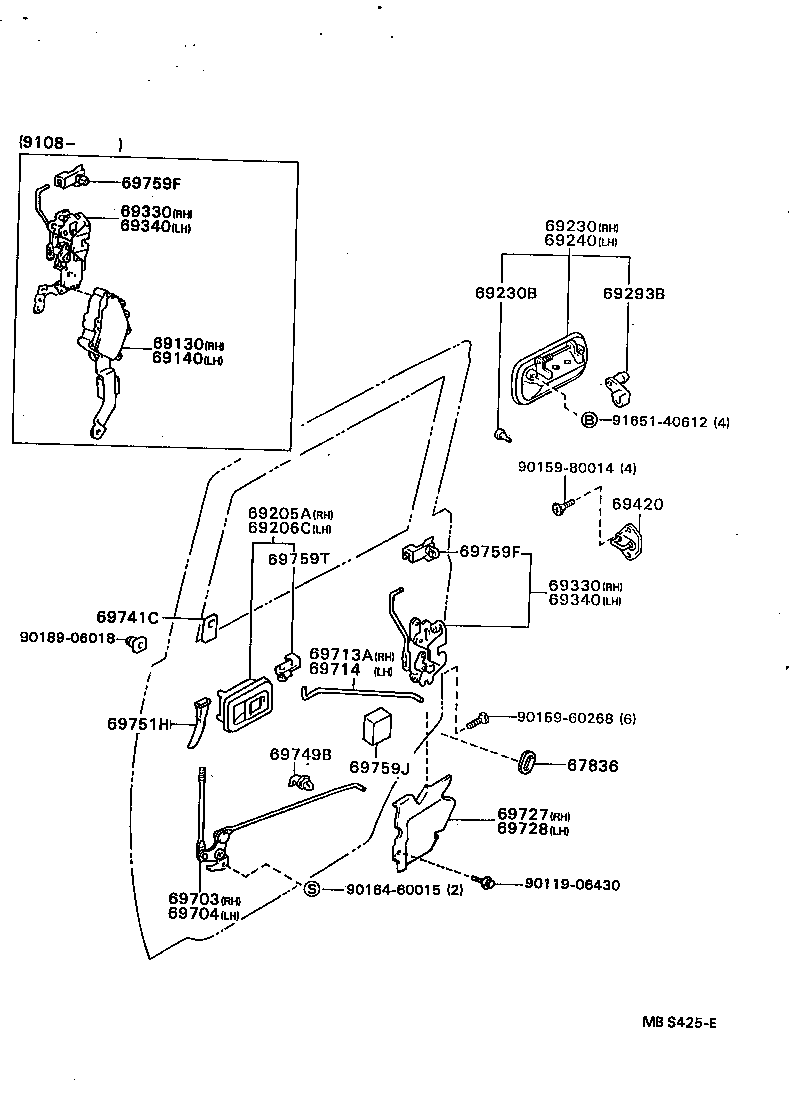

Click highlighted areas on diagram

diagram 67836 69130 69140 69205A 69206C 69230 69230B 69240 69293B 69330 69330 69340 69340 69420 69703 69704 69713A 69714 69727 69728 69741C 69749B 69751H 69759F 69759F 69759J 69759T 9011906430 9015960268 9015980014 9016460015 9018906018 9165140612
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-8910704

RN12#,VZN120

BLUE,TRIM8#

 1
69205-8910702

RN12#,VZN120

RED,TRIM3#

 1
69205-8910706

RN12#,VZN120

BROWN,TRIM4#

 1
69205-8910703

RN12#,VZN120

GRAY,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-8910704

RN12#,VZN120

BLUE,TRIM8#

 1
69206-8910702

RN12#,VZN120

RED,TRIM3#

 1
69206-8910703

RN12#,VZN120

GRAY,TRIM1#

 1
69206-8910706

RN12#,VZN120

BROWN,TRIM4#

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-89106

RN12#,VZN120

W(POWER WINDOW)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-89106

RN12#,VZN120

W(POWER WINDOW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-89106

RN12#,VZN120

W(POWER WINDOW)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-89106

RN12#,VZN120

W(POWER WINDOW)

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-90K0012

RN12#,VZN120

RED,TRIM3#

 2
69741-8910403

RN12#,VZN120

GRAY,TRIM1#

 2
69741-8910404

RN12#,VZN120

BLUE,TRIM8#

 2
69741-90K00J1

RN12#,VZN120

MEDIUM BLUE,TRIM8#

 2
69741-90K00B1

RN12#,VZN120

MEDIUM GRAY,TRIM1#

 2
69741-8910402

RN12#,VZN120

RED,TRIM3#

 2
69741-90K00E1

RN12#,VZN120

BROWN,TRIM4#

 2
69741-8910406

RN12#,VZN120

BROWN,TRIM4#

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20110

RN12#,VZN120

W(POWER WINDOW),NATURAL

 1
69759-20100

RN12#,VZN120

W(POWER WINDOW),RED

 1
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-20110

RN12#,VZN120

W(POWER WINDOW),NATURAL

 1
69759-20100

RN12#,VZN120

W(POWER WINDOW),RED

 1
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-20060

RN12#,VZN120

RH

 1
69759-20070

RN12#,VZN120

LH

 1
Common parts
90119-06430
90159-60268
90159-80014
90164-60015
90189-06018
91651-40612
