RN120L-GKPSEA (1989)

Toyota 4-Runner Truck (Jpp)

Production Apr 1989 - Aug 1991
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )RN12#,VZN120..JPP

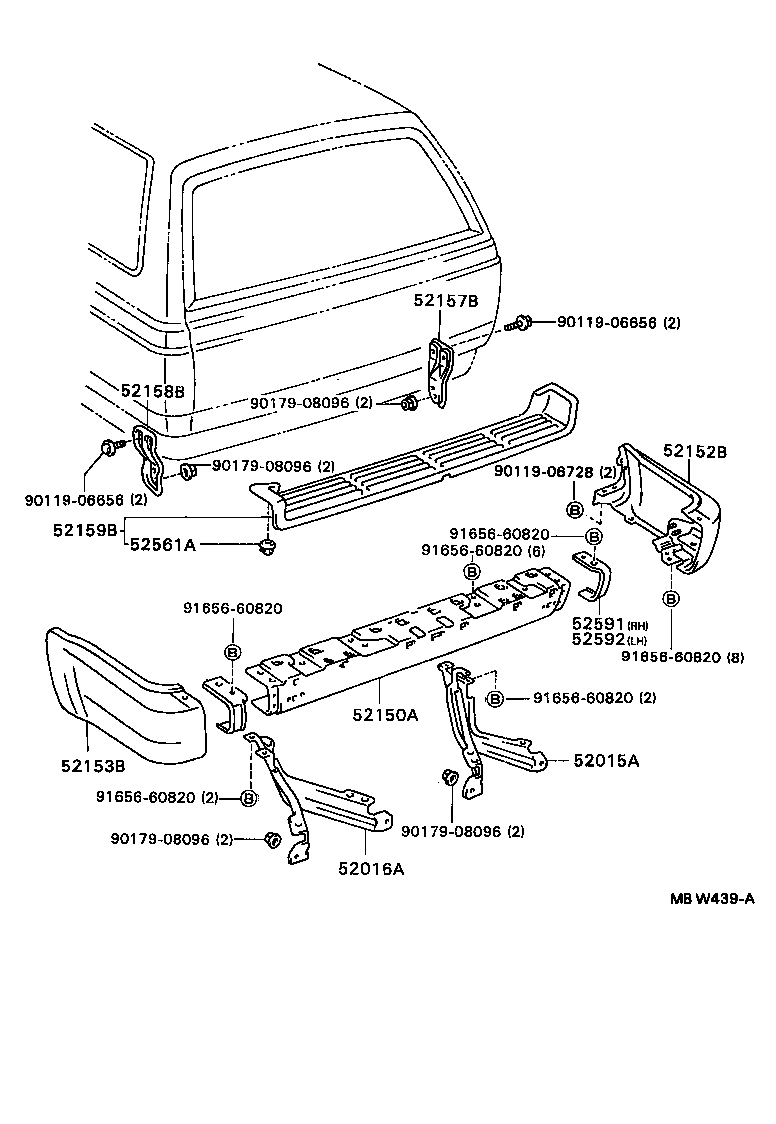

Click highlighted areas on diagram

diagram 52015A 52016A 52150A 52152B 52153B 52157B 52158B 52159B 52561A 52591 52592 9011906656 9011906656 9011906728 9017908096 9017908096 9017908096 9017908096 9165660820 9165660820 9165660820 9165660820 9165660820 9165660820
Part # Description Qty Price
52150A - BUMPER ASSY, REAR
52105-8912006

RN12#,VZN120

O.GOLD.M,29L

 1
52105-8912013

RN12#,VZN120

D.GRAY.M,28L

 1
52105-89117

RN12#,VZN120

CHROME PLATED PACKAGE

 1
52105-8912003

RN12#,VZN120

SILVER.M,27L

 1
52105-89116

RN12#,VZN120

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-8910706

RN12#,VZN120

O.GOLD.M,29L

 1
52106-89105

RN12#,VZN120

 1
52106-8910703

RN12#,VZN120

SILVER.M,27L

 1
52106-8910713

RN12#,VZN120

D.GRAY.M,28L

 1
52106-89106

RN12#,VZN120

CHROME PLATED PACKAGE

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-89103

RN12#,VZN120

 1
52107-8910506

RN12#,VZN120

O.GOLD.M,29L

 1
52107-89104

RN12#,VZN120

CHROME PLATED PACKAGE

 1
52107-8910503

RN12#,VZN120

SILVER.M,27L

 1
52107-8910513

RN12#,VZN120

D.GRAY.M,28L

 1
Common parts
90119-06656
90119-06728
90179-08096
91656-60820
