RN110L-CRPSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

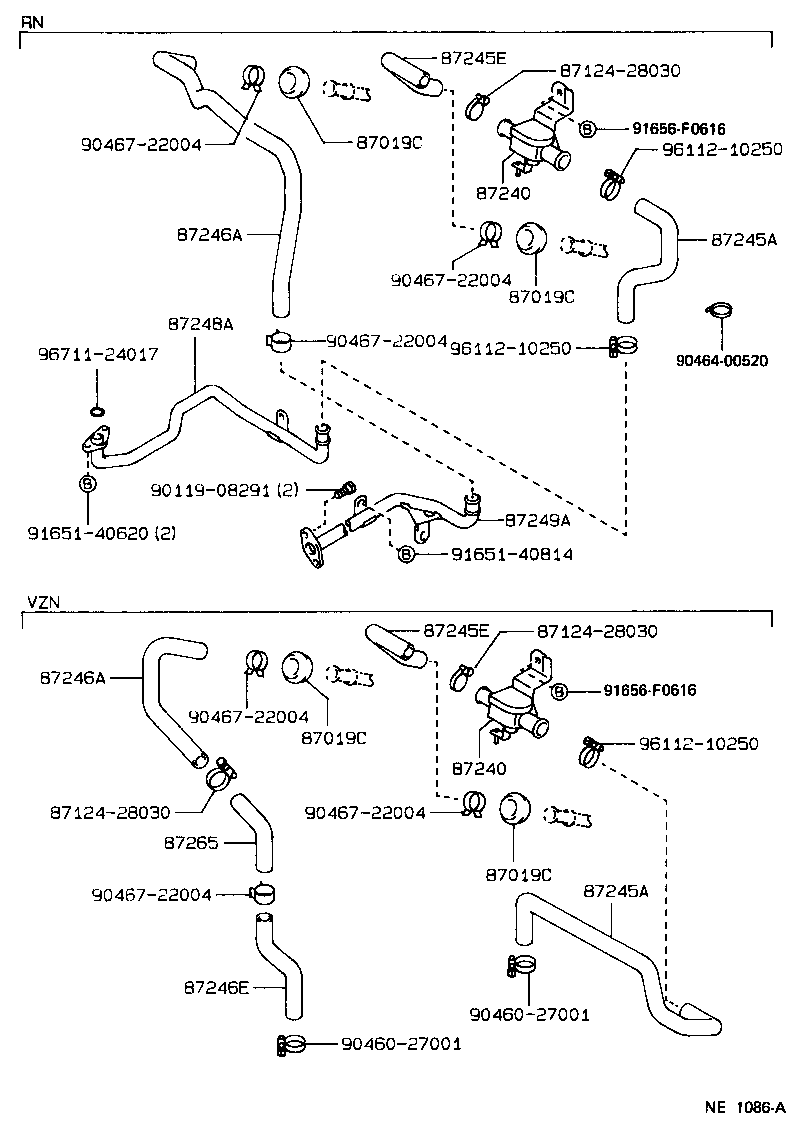

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 8712428030 8712428030 8712428030 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87248A 87249A 87265 9011908291 9046027001 9046027001 9046400520 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9165140620 9165140814 91656F0616 91656F0616 9611210250 9611210250 9611210250 9671124017
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87019C - GROMMET, HEATER HOSE
90480-36005

RN10#,110,13#,VZN10#,110,13#

 2
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN10#,110,13#,VZN10#,110,13#

 1
87240 - VALVE ASSY, HEATER WATER
87240-89124

RN10#,110,13#,VZN10#,110,13#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89229

VZN10#,110,130

 1
87245-89218

RN10#,110,130

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89229

VZN10#,110,130

 1
87245-89218

RN10#,110,130

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN10#,110,13#,VZN10#,110,13#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89231

RN10#,110,13#,VZN10#,110,13#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89222

VZN10#,110,130

 1
87245-89219

RN10#,110,130

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89222

VZN10#,110,130

 1
87245-89219

RN10#,110,130

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-89205

VZN10#,110,130

 1
87248A - PIPE, HEATER WATER INLET, A
87208-14280

RN10#,110,13#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN10#,110,13#

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89107

VZN10#,110,130

 1
Common parts
87124-28030
90119-08291
90460-27001
90464-00520
90467-22004
91651-40620
91651-40814
91656-F0616
96112-10250
96711-24017
