RN110L-CRPSEA (1988)
Toyota 4-Runner Truck (Jpp)
ILLUST NO. 4 OF 4(8808- )
ENGINE ROOM WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89150 |
VZN10#,110,130..USA |
1 | ||
| 82111-89149 |
RN130..5F;RN10#,110..USA |
1 | ||
| 82111-89150 |
VZN10#,110,13# |
1 | ||
| 82111-89149 |
RN10#,110;RN13#..5F |
1 | ||
| Common parts | ||||
| 82711-35060 | ||||
| 82715-35030 | ||||
| 82715-89104 | ||||
| 82715-89106 | ||||
| 90119-06431 | ||||
| 90119-08671 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-89201 |
RN106,110..4FC |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89208 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89204 |
RN110..4FC..SR5;RN106,110..4FC..DLX..IV3 CALIFORNIA SPEC |
1 | ||
| 82121-89207 |
VZN10#,110,13#..R |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89250 |
RN10#,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89241 |
RN106,110,13#..4FC..CBU |
1 | ||
| 82121-89257 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89256 |
VZN10#,110,13#..R |
1 | ||
| 82121-89201 |
RN110..4FC..SR5..CBU W(*ADD) |
1 | ||
| 82121-89251 |
RN10#,110,13#..4FC |
1 | ||
| Common parts | ||||
| 82710-87002 | ||||
| 82711-89120 | ||||
| 82711-89123 | ||||
| 82715-30500 | ||||
| 82715-35040 | ||||
| 82715-35070 | ||||
| 82715-89113 | ||||
| 82715-89127 | ||||
| 82715-89128 | ||||
| 82715-89135 | ||||
| 82715-89136 | ||||
| 82715-89137 | ||||
| 82715-95J26 | ||||
| 82751-89104 | ||||
| 84248-35010 | ||||
| 87616-35010 | ||||
| 91631-60616 | ||||
| 91651-40610 | ||||
| 91656-F0616 | ||||
| 93381-16014 | ||||
ILLUST NO. 4 OF 4(8808- )
COWL WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-89624 |
RN101,110,VZN100,110..(G,R)..SR5 |
1 | ||
| 82131-89641 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89640 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE |
1 | ||
| 82131-89643 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| 82131-89642 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89838 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89821 |
RN101,110,VZN100,110..(G,R)..SR5..USA |
1 | ||
| 82131-89639 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89836 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89839 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89840 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-35210 | ||||
| 82711-89146 | ||||
| 82711-89166 | ||||
| 82711-89194 | ||||
| 82715-22070 | ||||
| 82715-89113 | ||||
| 82715-89130 | ||||
| 90461-08309 | ||||
| 91651-40814 | ||||
| 91656-F0616 | ||||
ILLUST NO. 4 OF 4(8808- )

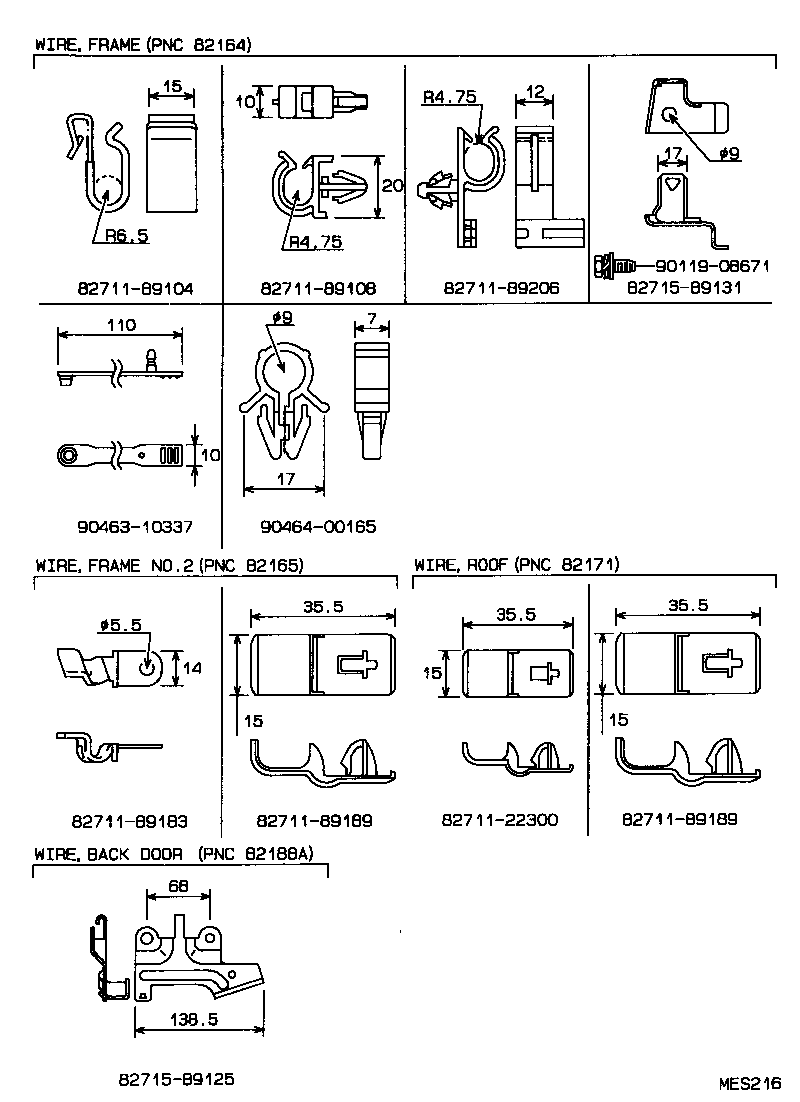

FRAME,ROOF,BACK DOOR WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-89205 |
RN110..SR5 W(*66) |
1 | ||
| 82164-89218 |
RN110;VZN110..DLX..CND |
1 | ||
| 82164-89166 |
RN110,VZN110 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89119 |
RN110..SR5 W(MAP LAMP) |
1 | ||
| 82171-89120 |
RN110;VZN110..DLX W(FIXED REAR WINDOW & DEFOGGER) |
1 | ||
| 82171-89118 |
RN110;VZN110..DLX |
1 | ||
| 82171-89121 |
RN110..SR5 W(FIXED REAR WINDOW & DEFOGGER & MAP LAMP) |
1 | ||
| Common parts | ||||
| 82711-22300 | ||||
| 82711-89104 | ||||
| 82711-89108 | ||||
| 82711-89183 | ||||
| 82711-89189 | ||||
| 82711-89206 | ||||
| 82715-89125 | ||||
| 82715-89131 | ||||
| 90119-08671 | ||||
| 90463-10337 | ||||
| 90464-00165 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE NO.2,NO.3 CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-89112 |
VZN10#,110,13# |
1 | ||
| 82122-89110 |
RN10#,110,13# |
1 | ||
| 82122-89132 |
RN101,110,13#..SR5 W(*66) |
1 | ||
| 82122-89134 |
VZN100,110,13#..SR5 |
1 | ||
| Common parts | ||||
| 82715-35080 | ||||
| 82715-35120 | ||||
| 82715-89131 | ||||
| 87616-22010 | ||||
| 90119-08671 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE NO.4,WINCH,ALT. WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-89114 |
VZN100,110,13#..SR5;RN110,13#..4FC..SR5;RN101,110,13#..W..SR5 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-89103 |
RN10#,110;RN13#..5F |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 82715-89104 | ||||
| 82715-89106 | ||||
| 90119-08671 | ||||
| 90461-06006 | ||||

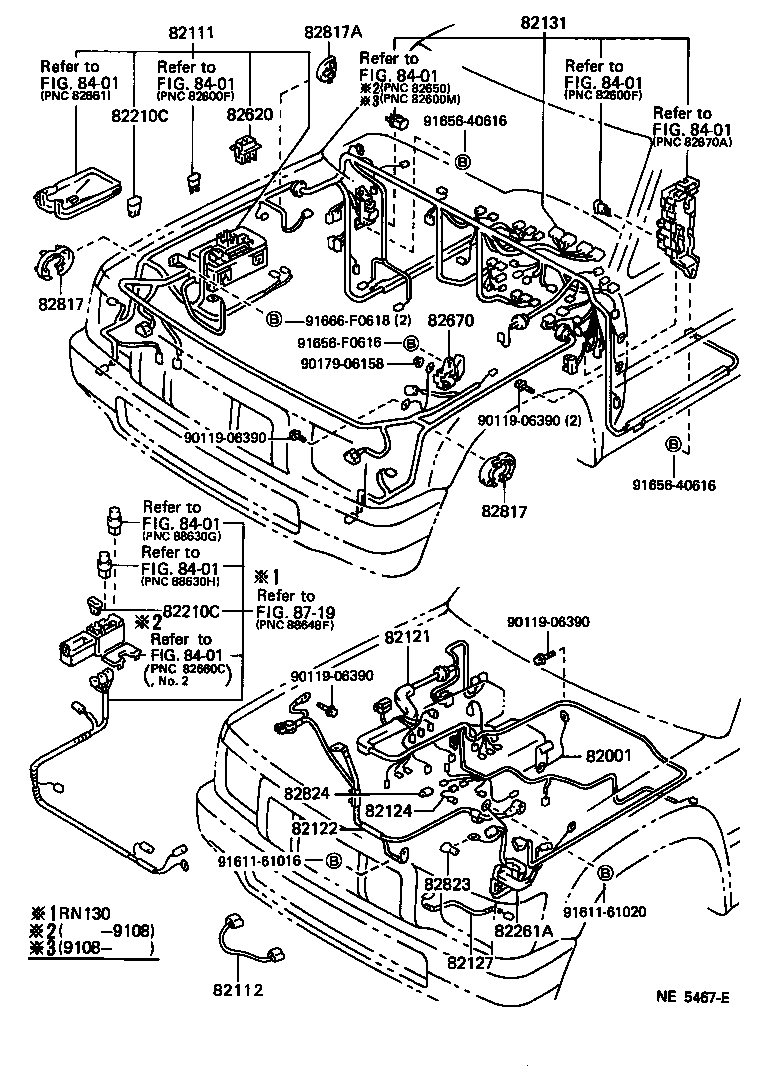

ILLUST NO. 1 OF 4(8808- )RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07300 |
VZN10#,110,13# NO.1 |
1 | ||
| 90980-07301 |
VZN10#,110,13# NO.2 |
1 | ||
| 90980-07108 |
RN10#,110,13# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89150 |
VZN10#,110,130..USA |
1 | ||
| 82111-89149 |
RN130..5F;RN10#,110..USA |
1 | ||
| 82111-89150 |
VZN10#,110,13# |
1 | ||
| 82111-89149 |
RN10#,110;RN13#..5F |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-89201 |
RN106,110..4FC |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89208 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89204 |
RN110..4FC..SR5;RN106,110..4FC..DLX..IV3 CALIFORNIA SPEC |
1 | ||
| 82121-89207 |
VZN10#,110,13#..R |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89250 |
RN10#,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89241 |
RN106,110,13#..4FC..CBU |
1 | ||
| 82121-89257 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89256 |
VZN10#,110,13#..R |
1 | ||
| 82121-89201 |
RN110..4FC..SR5..CBU W(*ADD) |
1 | ||
| 82121-89251 |
RN10#,110,13#..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-89112 |
VZN10#,110,13# |
1 | ||
| 82122-89110 |
RN10#,110,13# |
1 | ||
| 82122-89132 |
RN101,110,13#..SR5 W(*66) |
1 | ||
| 82122-89134 |
VZN100,110,13#..SR5 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-89114 |
VZN100,110,13#..SR5;RN110,13#..4FC..SR5;RN101,110,13#..W..SR5 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-89102 |
VZN100,110,13#..SR5 |
1 | ||
| 82127-89101 |
RN101,110,13#..G;RN110,13#..4FC..SR5 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89624 |
RN101,110,VZN100,110..(G,R)..SR5 |
1 | ||
| 82131-89641 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89640 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE |
1 | ||
| 82131-89643 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| 82131-89642 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89838 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89821 |
RN101,110,VZN100,110..(G,R)..SR5..USA |
1 | ||
| 82131-89639 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89836 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89839 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89840 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RN10#,110,VZN10#,110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
RN10#,110,13#,VZN10#,110,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
RN13#..5F;RN10#,110,VZN10#,110,13# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
RN10#,110,13#,VZN10#,110,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RN10#,110,VZN10#,110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
RN10#,110,13#,VZN10#,110,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
RN13#..5F;RN10#,110,VZN10#,110,13# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
RN10#,110,13#,VZN10#,110,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-89103 |
RN10#,110;RN13#..5F |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-89101 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-89107 |
RN10#,110,13# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-89130 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
RN110,13#..4FC;RN106..4FC..USA;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106..4FC..USA;RN101,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106,110..4FC;VZN100,110..SR5 |
1 | ||
| 82824-32030 |
RN106,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 91611-61016 | ||||
| 91611-61020 | ||||
| 91656-40616 | ||||
| 91656-F0616 | ||||
| 91666-F0618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8719 | ||||

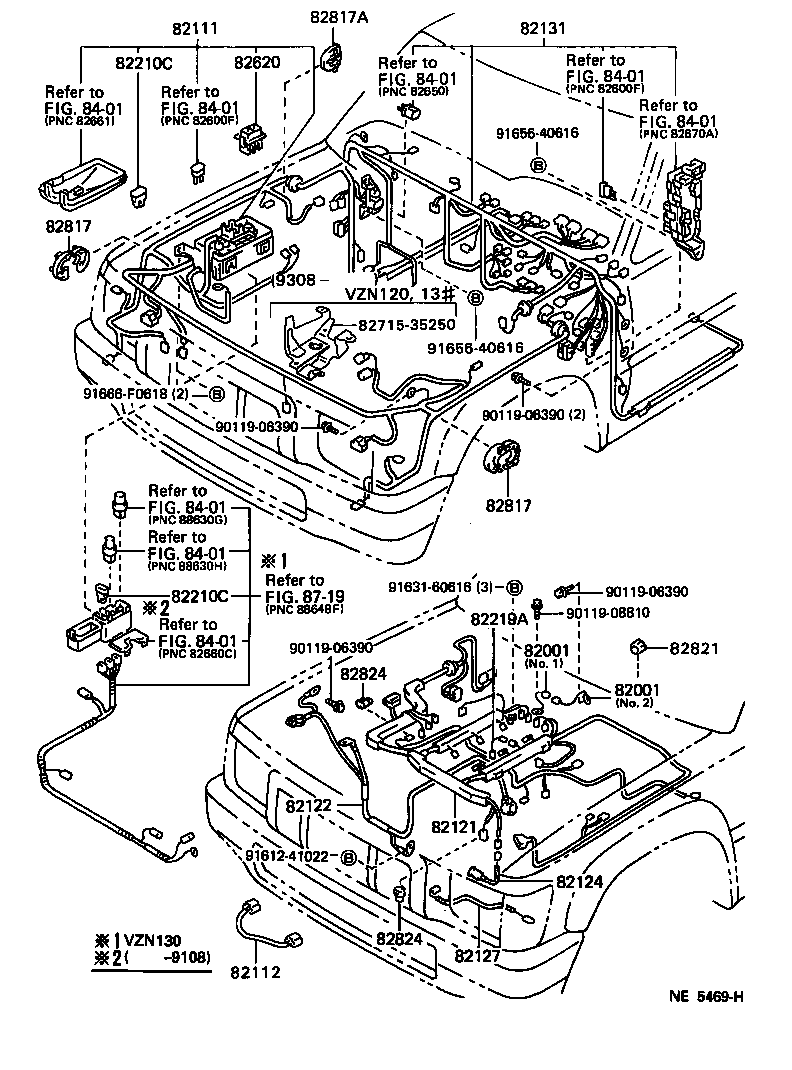

ILLUST NO. 1 OF 4(8808- )VZN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07300 |
VZN10#,110,13# NO.1 |
1 | ||
| 90980-07301 |
VZN10#,110,13# NO.2 |
1 | ||
| 90980-07108 |
RN10#,110,13# |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07300 |
VZN10#,110,13# NO.1 |
1 | ||
| 90980-07301 |
VZN10#,110,13# NO.2 |
1 | ||
| 90980-07108 |
RN10#,110,13# |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89150 |
VZN10#,110,130..USA |
1 | ||
| 82111-89149 |
RN130..5F;RN10#,110..USA |
1 | ||
| 82111-89150 |
VZN10#,110,13# |
1 | ||
| 82111-89149 |
RN10#,110;RN13#..5F |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-89201 |
RN106,110..4FC |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89208 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89204 |
RN110..4FC..SR5;RN106,110..4FC..DLX..IV3 CALIFORNIA SPEC |
1 | ||
| 82121-89207 |
VZN10#,110,13#..R |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89250 |
RN10#,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89241 |
RN106,110,13#..4FC..CBU |
1 | ||
| 82121-89257 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89256 |
VZN10#,110,13#..R |
1 | ||
| 82121-89201 |
RN110..4FC..SR5..CBU W(*ADD) |
1 | ||
| 82121-89251 |
RN10#,110,13#..4FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-89112 |
VZN10#,110,13# |
1 | ||
| 82122-89110 |
RN10#,110,13# |
1 | ||
| 82122-89132 |
RN101,110,13#..SR5 W(*66) |
1 | ||
| 82122-89134 |
VZN100,110,13#..SR5 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-89114 |
VZN100,110,13#..SR5;RN110,13#..4FC..SR5;RN101,110,13#..W..SR5 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-89102 |
VZN100,110,13#..SR5 |
1 | ||
| 82127-89101 |
RN101,110,13#..G;RN110,13#..4FC..SR5 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89624 |
RN101,110,VZN100,110..(G,R)..SR5 |
1 | ||
| 82131-89641 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89640 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE |
1 | ||
| 82131-89643 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| 82131-89642 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89838 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *RCM) |
1 | ||
| 82131-89821 |
RN101,110,VZN100,110..(G,R)..SR5..USA |
1 | ||
| 82131-89639 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89836 |
RN110,VZN110..4FC..SR5 |
1 | ||
| 82131-89839 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(CRUISE CONTROL) |
1 | ||
| 82131-89840 |
RN110,VZN110..4FC..SR5 ILLUMINATION PACKAGE & W(*PW & *CRC & *RCM) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RN10#,110,VZN10#,110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
RN10#,110,13#,VZN10#,110,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
RN13#..5F;RN10#,110,VZN10#,110,13# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
RN10#,110,13#,VZN10#,110,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
RN10#,110,VZN10#,110 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08188 |
RN10#,110,13#,VZN10#,110,13# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08253 |
RN13#..5F;RN10#,110,VZN10#,110,13# 80A,TERM.:MALE,BLK |
1 | ||
| 90982-08189 |
RN10#,110,13#,VZN10#,110,13# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-89103 |
VZN10#,110,13# |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-89101 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-89123 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-89130 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
RN110,13#..4FC;RN106..4FC..USA;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106..4FC..USA;RN101,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106,110..4FC;VZN100,110..SR5 |
1 | ||
| 82824-32030 |
RN106,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-32030 |
RN110,13#..4FC;RN106..4FC..USA;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106..4FC..USA;RN101,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| 82824-32030 |
RN106,110..4FC;VZN100,110..SR5 |
1 | ||
| 82824-32030 |
RN106,110,13#..4FC;VZN100,110,13#..SR5 |
1 | ||
| Common parts | ||||
| 82715-35250 | ||||
| 90119-06390 | ||||
| 90119-08810 | ||||
| 91612-41022 | ||||
| 91631-60616 | ||||
| 91656-40616 | ||||
| 91666-F0618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 4(8808- )RN10#,110,VZN10#,110
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-89116 |
RN101,110,13#,VZN100,110,13#..SR5 W(*RCM) |
1 | ||
| 82151-89117 |
RN101,110,130,VZN100,110,130..(2D,T1)..SR5..USA W(POWER WINDOW & *RCM) |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-89118 |
RN101,110,130,VZN100,110,130..SR5..USA |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-89110 |
RN101,110,13#,VZN100,110,13#..SR5 W(*RCM) |
1 | ||
| 82152-89111 |
RN101,110,130,VZN100,110,130..(2D,T1)..SR5..USA W(POWER WINDOW & *RCM) |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-89118 |
RN101,110,130,VZN100,110,130..SR5..USA |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-89205 |
RN110..SR5 W(*66) |
1 | ||
| 82164-89218 |
RN110;VZN110..DLX..CND |
1 | ||
| 82164-89166 |
RN110,VZN110 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89119 |
RN110..SR5 W(MAP LAMP) |
1 | ||
| 82171-89120 |
RN110;VZN110..DLX W(FIXED REAR WINDOW & DEFOGGER) |
1 | ||
| 82171-89118 |
RN110;VZN110..DLX |
1 | ||
| 82171-89121 |
RN110..SR5 W(FIXED REAR WINDOW & DEFOGGER & MAP LAMP) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-89103 |
RN110,VZN110 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

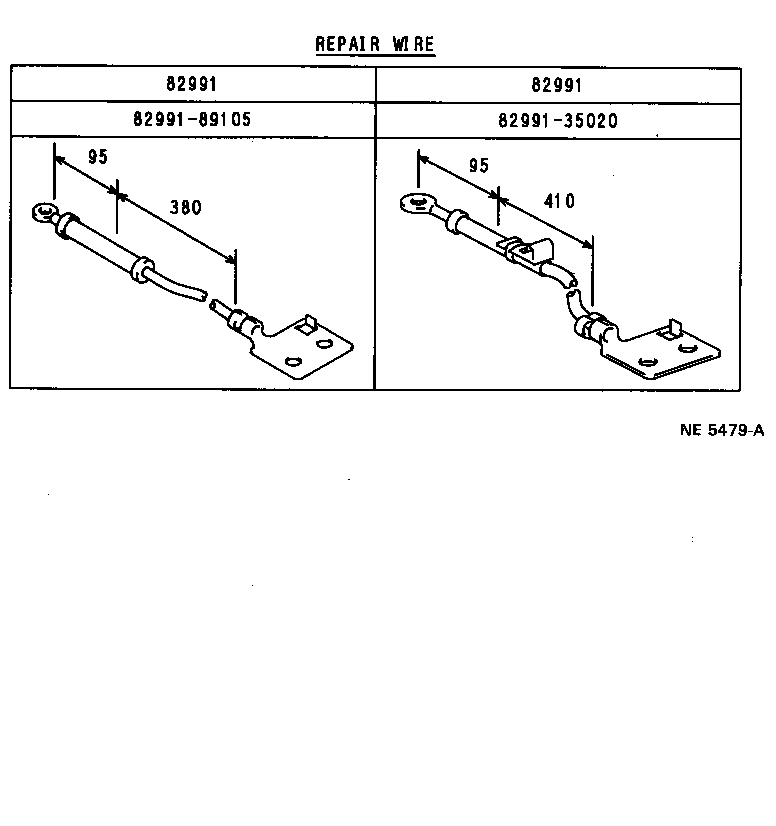

ILLUST NO. 3 OF 4(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89105 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89105 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 82991-35020 | ||||
| 82991-89105 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-14110 | ||||
| 82711-2A190 | ||||
| 82711-30800 | ||||
| 82711-89123 | ||||
| 82711-89156 | ||||
| 82711-89157 | ||||
| 82711-95024 | ||||
| 82715-22180 | ||||
| 82715-89102 | ||||
| 82715-89107 | ||||
| 82715-89108 | ||||
| 82715-89109 | ||||
| 82715-89110 | ||||
| 90168-60010 | ||||
| 91621-40812 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-89201 |
RN106,110..4FC |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89208 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89204 |
RN110..4FC..SR5;RN106,110..4FC..DLX..IV3 CALIFORNIA SPEC |
1 | ||
| 82121-89207 |
VZN10#,110,13#..R |
1 | ||
| 82121-89204 |
RN106,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89250 |
RN10#,110..4FC..USA CALIFORNIA SPEC |
1 | ||
| 82121-89241 |
RN106,110,13#..4FC..CBU |
1 | ||
| 82121-89257 |
VZN105,110,13#..4FC |
1 | ||
| 82121-89256 |
VZN10#,110,13#..R |
1 | ||
| 82121-89201 |
RN110..4FC..SR5..CBU W(*ADD) |
1 | ||
| 82121-89251 |
RN10#,110,13#..4FC |
1 | ||
| Common parts | ||||
| 82711-35060 | ||||
| 82715-89111 | ||||
| 82715-89112 | ||||
| 82715-89114 | ||||
| 82715-89116 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82715-89120 | ||||
| 82715-89126 | ||||
| 82715-95010 | ||||
| 87616-22010 | ||||
| 90168-60010 | ||||
| 90461-06152 | ||||
| 90461-08365 | ||||
| 90462-08008 | ||||
| 90464-00176 | ||||
| 91611-60812 | ||||
| 91621-F0812 | ||||
| 91651-41016 | ||||
| 91651-F0814 | ||||
| 91656-F0616 | ||||
ILLUST NO. 4 OF 4(8808- )
ENGINE WIRE NO.2 CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-89162 | ||||
| 82711-89197 | ||||
| 82715-89101 | ||||
| 82715-89103 | ||||
| 82715-89104 | ||||
| 82715-89105 | ||||
| 82715-89106 | ||||
| 82715-89108 | ||||
| 82715-89110 | ||||
| 82715-89115 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 82751-89104 | ||||
| 90119-08671 | ||||
| 90168-60010 | ||||
| 90464-00503 | ||||
| 91656-F0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
