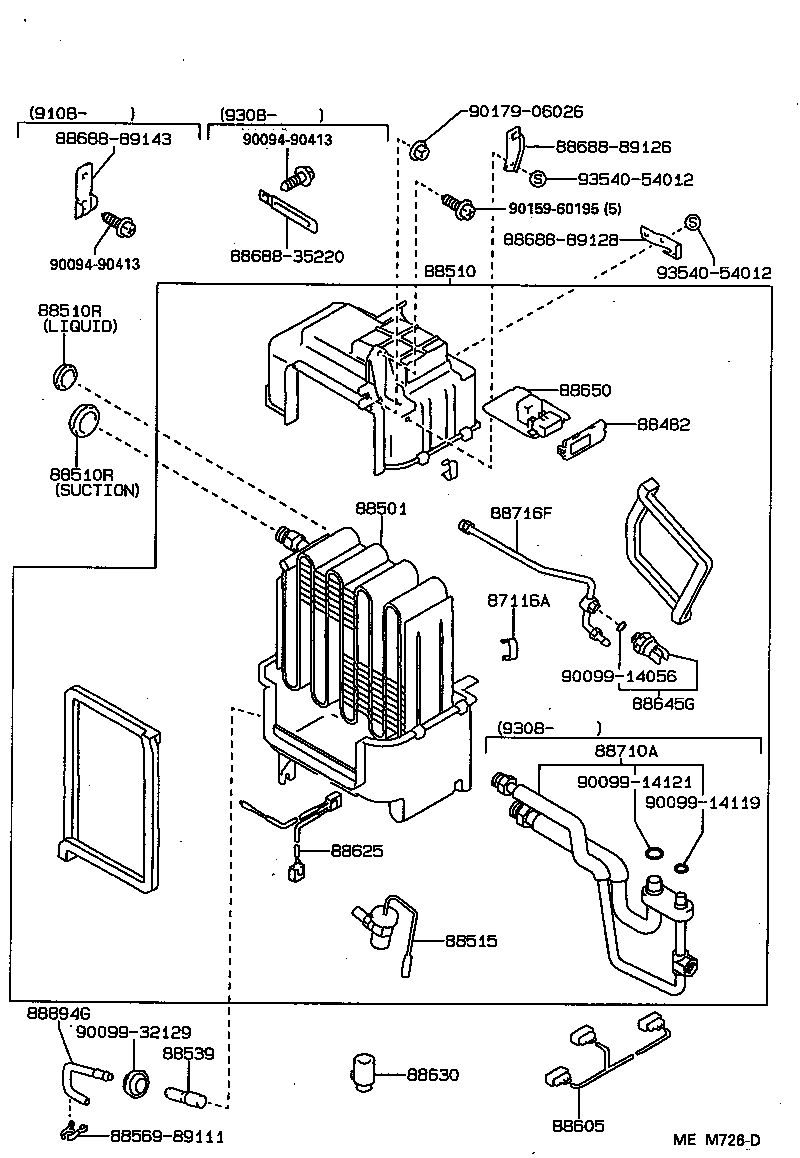

RN110L-CRPDEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88482 - CAP, COOLER | ||||
| 88482-60010 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-89111 |
RN10#,110,VZN10#,110 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-89151 |
RN10#,110..USA |
1 | ||
| 88510-89149 |
VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88510-89157 |
VZN10#,110..USA |
1 | ||
| 88510-89142 |
RN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-26003 |
RN131;RN10#,110,130,VZN10#,110,130..USA LIQUID |
1 | ||
| 90480-36003 |
RN131;RN10#,110,130,VZN10#,110,130..USA SUCTION |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-26003 |
RN131;RN10#,110,130,VZN10#,110,130..USA LIQUID |
1 | ||
| 90480-36003 |
RN131;RN10#,110,130,VZN10#,110,130..USA SUCTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
RN10#,110,VZN10#,110 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89113 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-89152 |
RN10#,110,VZN10#,110 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89102 |
RN10#,110,VZN10#,110 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-10020 |
RN10#,110,131..CND;RN130,VZN10#,110,130 |
1 | ||
| 88645-16020 |
RN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88645-10020 |
RN10#,110..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-89106 |
RN131;RN10#,110,130..USA |
1 | ||
| 88650-89110 |
VZN10#,110,130..USA |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-89156 |
RN10#,110,VZN10#,110 |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-89108 |
RN10#,110,130,VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88894-89112 |
RN10#,110,130,VZN10#,110..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88569-89111 | ||||
| 88688-35220 | ||||
| 88688-89126 | ||||
| 88688-89128 | ||||
| 88688-89143 | ||||
| 90094-90413 | ||||
| 90099-14056 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90099-32129 | ||||
| 90159-60195 | ||||
| 90179-06026 | ||||
| 93540-54012 | ||||
(8808- )RN10#,110,VZN10#,110..USA
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88482 - CAP, COOLER | ||||
| 88482-60010 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-89111 |
RN10#,110,VZN10#,110 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-89151 |
RN10#,110..USA |
1 | ||
| 88510-89149 |
VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88510-89157 |
VZN10#,110..USA |
1 | ||
| 88510-89142 |
RN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-26003 |
RN131;RN10#,110,130,VZN10#,110,130..USA LIQUID |
1 | ||
| 90480-36003 |
RN131;RN10#,110,130,VZN10#,110,130..USA SUCTION |
1 | ||
| 88510R - GROMMET (FOR COOLER UNIT) | ||||
| 90480-26003 |
RN131;RN10#,110,130,VZN10#,110,130..USA LIQUID |
1 | ||
| 90480-36003 |
RN131;RN10#,110,130,VZN10#,110,130..USA SUCTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16040 |
RN10#,110,VZN10#,110 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89113 |
RN10#,110,13#,VZN10#,110,130 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-89152 |
RN10#,110,VZN10#,110 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-89102 |
RN10#,110,VZN10#,110 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-10020 |
RN10#,110,131..CND;RN130,VZN10#,110,130 |
1 | ||
| 88645-16020 |
RN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88645-10020 |
RN10#,110..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-89106 |
RN131;RN10#,110,130..USA |
1 | ||
| 88650-89110 |
VZN10#,110,130..USA |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-89156 |
RN10#,110,VZN10#,110 |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-89108 |
RN10#,110,130,VZN10#,110..USA W(MAKER OPTION AIR CONDITIONER) |
1 | ||
| 88894-89112 |
RN10#,110,130,VZN10#,110..USA W(DEALER OPTION AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88688-89126 | ||||
| 88688-89128 | ||||
| 90099-14056 | ||||
| 90159-60213 | ||||
| 90179-06026 | ||||
| 90480-26022 | ||||
