RN110L-CRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

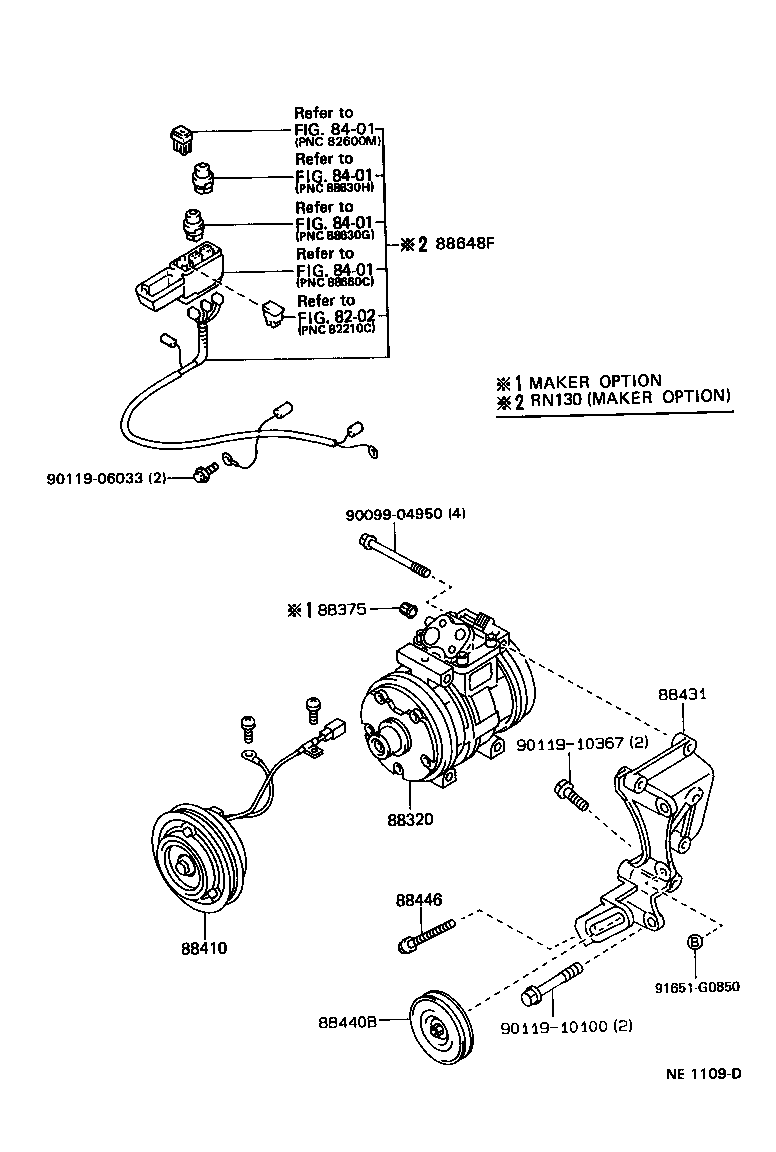

ILLUST NO. 1 OF 3(8808- )RN10#,110,13#

Click highlighted areas on diagram

diagram 8202 8401 8401 8401 8401 88320 88375 88410 88431 88440B 88446 88648F 9009904950 9011906033 9011910100 9011910367 91651G0850
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35300

VZN10#,110

 1
88320-35270

RN10#,110

 1
88410 - CLUTCH ASSY, MAGNET
88410-35080

VZN10#,110..USA

 1
88410-35120

RN10#,110

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35180

VZN10#,110

 1
88431-35150

RN10#,110,13#

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VZN10#,110,130

 1
88440-35030

RN10#,110,13#

 1
88446 - BOLT, IDLE PULLEY
88446-35030

RN10#,110,13#,VZN10#,110,130

 1
Common parts
90099-04950
90119-06033
90119-10100
90119-10367
91651-G0850
Linked diagrams
8202
8401

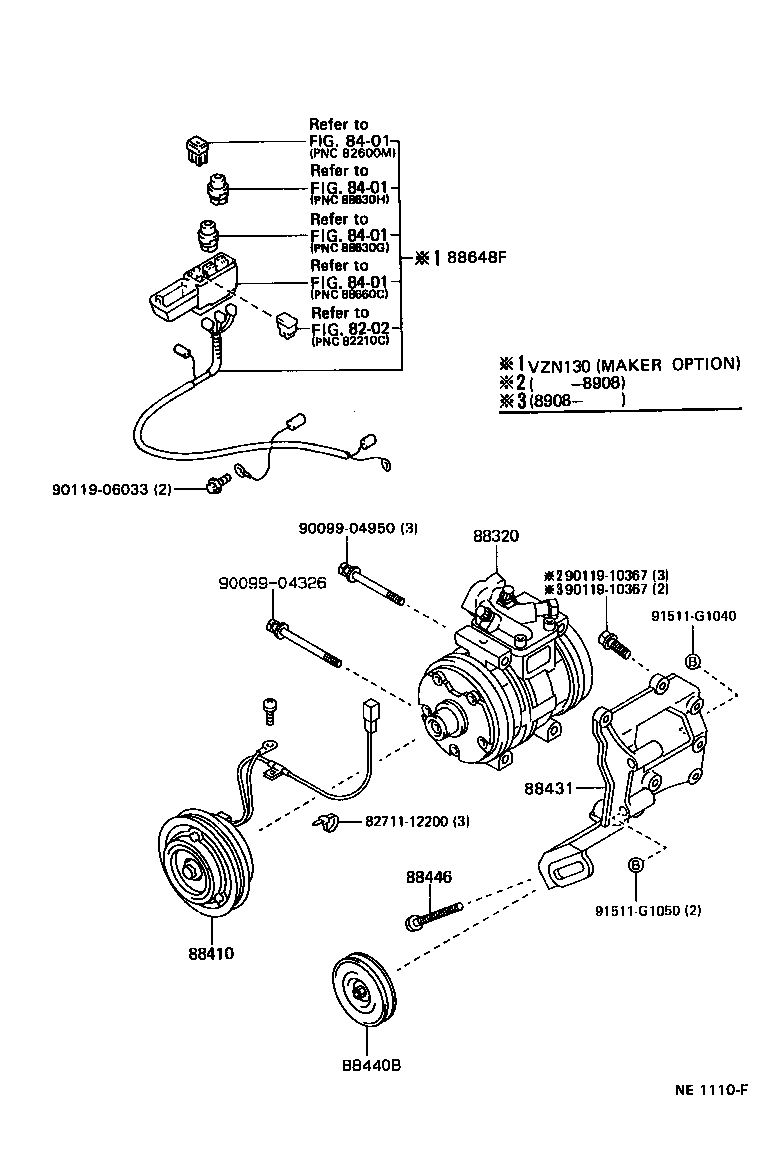

ILLUST NO. 1 OF 3(8808- )VZN10#,110,13#

Click highlighted areas on diagram

diagram 8202 8271112200 8401 8401 8401 8401 88320 88410 88431 88440B 88446 88648F 9009904326 9009904950 9011906033 9011910367 9011910367 91511G1040 91511G1050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-35300

VZN10#,110

 1
88320-35270

RN10#,110

 1
88410 - CLUTCH ASSY, MAGNET
88410-35080

VZN10#,110..USA

 1
88410-35120

RN10#,110

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-35180

VZN10#,110

 1
88431-35150

RN10#,110,13#

 1
88440B - PULLEY ASSY, IDLE
88440-35040

VZN10#,110,130

 1
88440-35030

RN10#,110,13#

 1
88446 - BOLT, IDLE PULLEY
88446-35030

RN10#,110,13#,VZN10#,110,130

 1
Common parts
82711-12200
90099-04326
90099-04950
90119-06033
90119-10367
91511-G1040
91511-G1050
Linked diagrams
8202
8401
