RN110L-CRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9511)

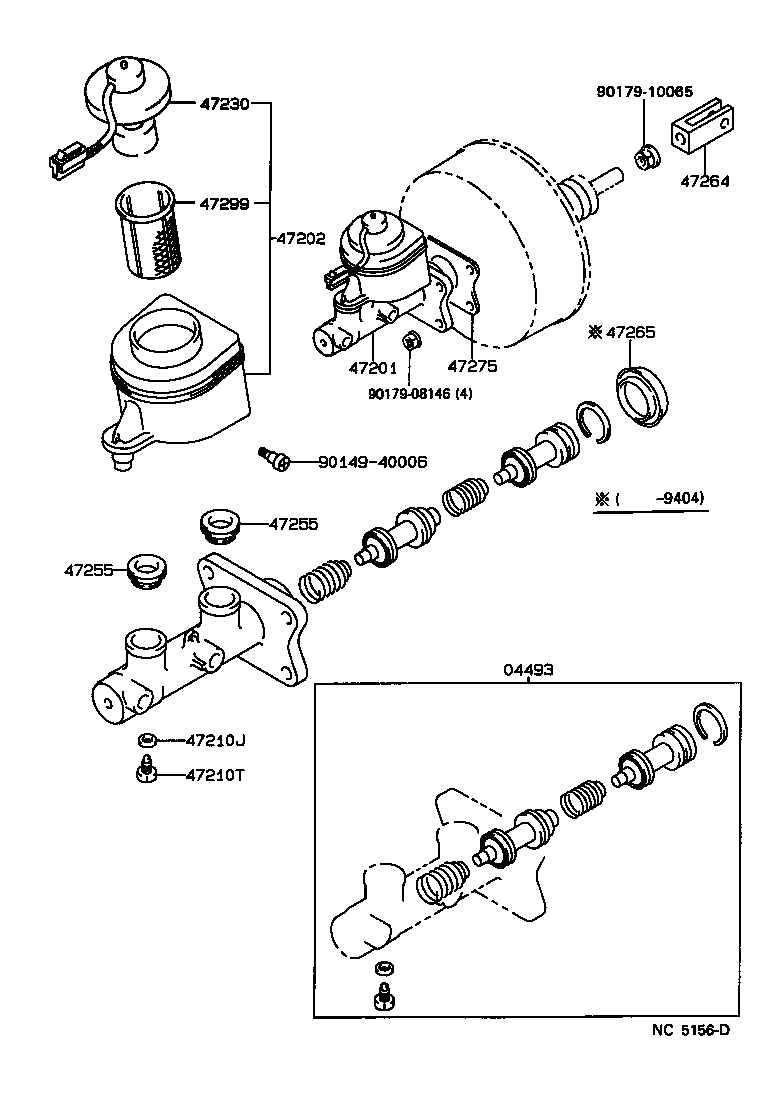

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47265 47275 47299 9014940006 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-35290

RN10#,110,13#,VZN10#,110,13#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-35670

RN10#,110,13#,VZN10#,110,13#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-35240

RN10#,110,13#,VZN10#,110,13#

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

RN10#,110,13#,VZN10#,110,13#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

RN10#,110,13#,VZN10#,110,13#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-35020

RN10#,110,13#,VZN10#,110,13#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

RN10#,110,13#,VZN10#,110,13#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

RN10#,110,13#,VZN10#,110,13#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30040

RN10#,110,13#,VZN10#,110,13#

 1
47265 - BOOT, MASTER CYLINDER
47265-20050

RN10#,110,13#,VZN10#,110,13#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

RN10#,110,13#,VZN10#,110,13#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90149-40006
90179-08146
90179-10065
