RN110L-CRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

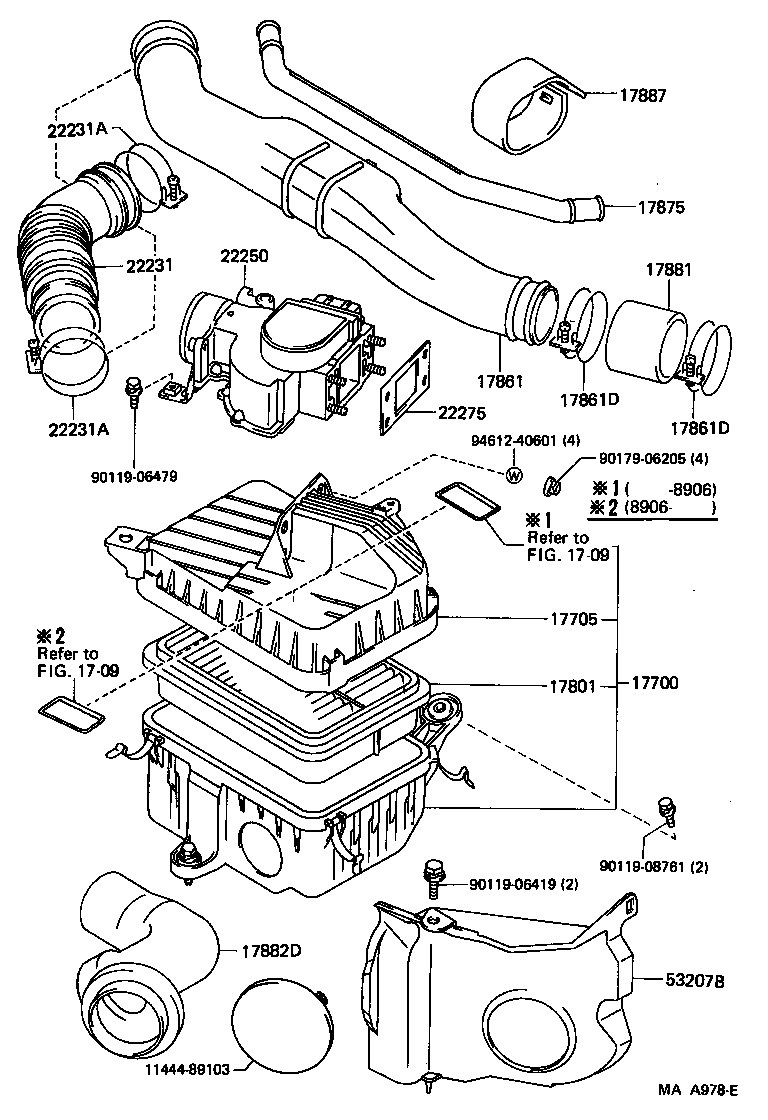

Click highlighted areas on diagram

diagram 1144489103 1709 1709 17700 17705 17801 17861 17861D 17861D 17875 17881 17882D 17887 22231 22231A 22231A 22250 22275 53207B 9011906419 9011906479 9011908761 9017906205 9461240601
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-35360

22RE..RN10#,110,13#

 1
17700-35360

22RE..RN10#,110

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-35170

22RE..RN10#,110,13#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-35020

22RE..RN10#,110,13#

 1
17861 - CONNECTOR, INTAKE AIR
17861-35080

22RE..RN10#,110,13#

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
90460-80001

22RE..RN10#,110,13#

AIR FLOW METER SIDE

 1
90460-75001

22RE..RN10#,110,13#

THROTTLE BODY SIDE

 1
17861D - CLAMP(FOR INTAKE AIR CONNECTOR)
90460-80001

22RE..RN10#,110,13#

AIR FLOW METER SIDE

 1
90460-75001

22RE..RN10#,110,13#

THROTTLE BODY SIDE

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-35010

22RE..RN10#,110,13#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-35080

22RE..RN10#,110,13#

 1
17882D - HOSE, COOL AIR INTAKE
17882-89116

22RE..RN10#,110,13#

 1
17887 - COVER, AIR CLEANER HOSE
17887-35030

22RE..RN10#,110,13#

 1
22231 - HOSE, THROTTLE BODY
22231-35030

22RE..RN10#,110,13#

 1
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

22RE..RN10#,110,13#

 2
22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE)
96111-10800

22RE..RN10#,110,13#

 2
22250 - METER ASSY, INTAKE AIR FLOW
22250-35050

22RE..RN10#,110,13#

 1
22275 - GASKET, AIR FLOW METER
22275-41010

22RE..RN10#,110,13#

 1
53207B - DUCT SUB-ASSY, COOL AIR
53207-89110

VZN10#,110,13#

 1
53207-89111

RN10#,110,13#

 1
Common parts
11444-89103
90119-06419
90119-06479
90119-08761
90179-06205
94612-40601
Linked diagrams
1709
