RN110L-CRMSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

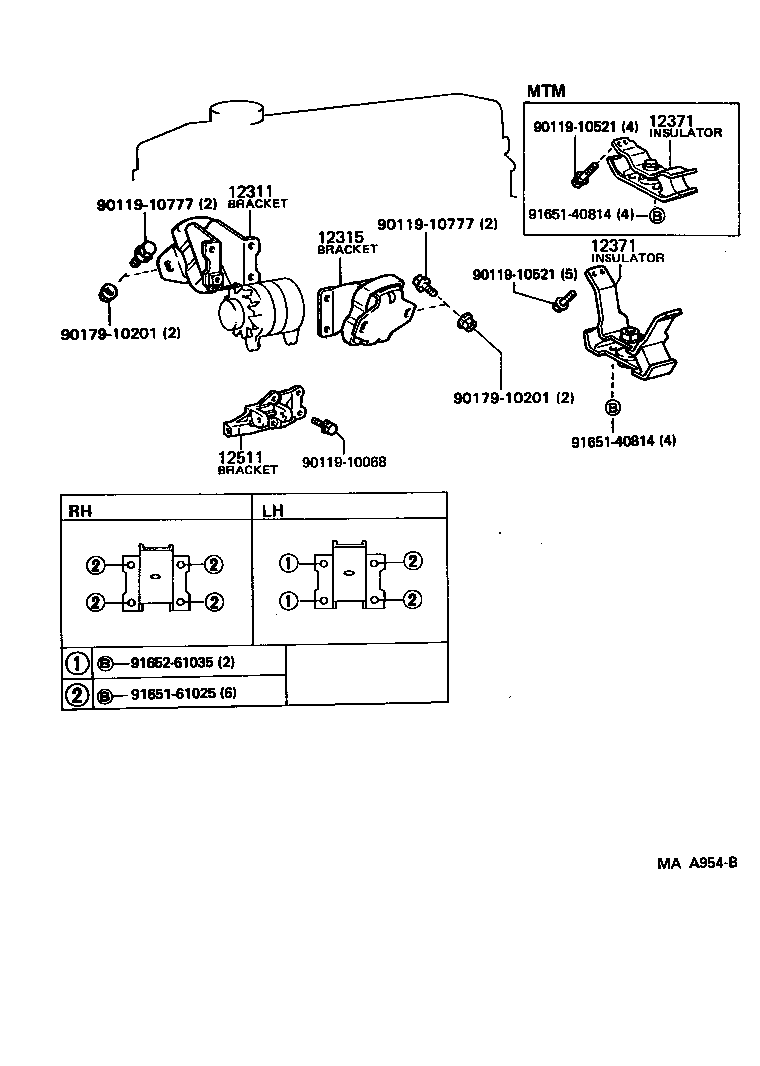

Click highlighted areas on diagram

diagram 12311 12315 12371 12371 12511 9011910068 9011910521 9011910521 9011910777 9011910777 9017910201 9017910201 9165140814 9165140814 9165161025 9165261035
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-35190

22RE..RN10#,110,13#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-35070

22RE..RN10#,110,13#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35050

22RE..RN10#,110,13#..W

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-35050

22RE..RN10#,110,13#..W

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-35030

22RE..RN10#,110,13#

 1
Common parts
90119-10068
90119-10521
90119-10777
90179-10201
91651-40814
91651-61025
91652-61035
