RN110L-CRMDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN10#,110,VZN10#,110

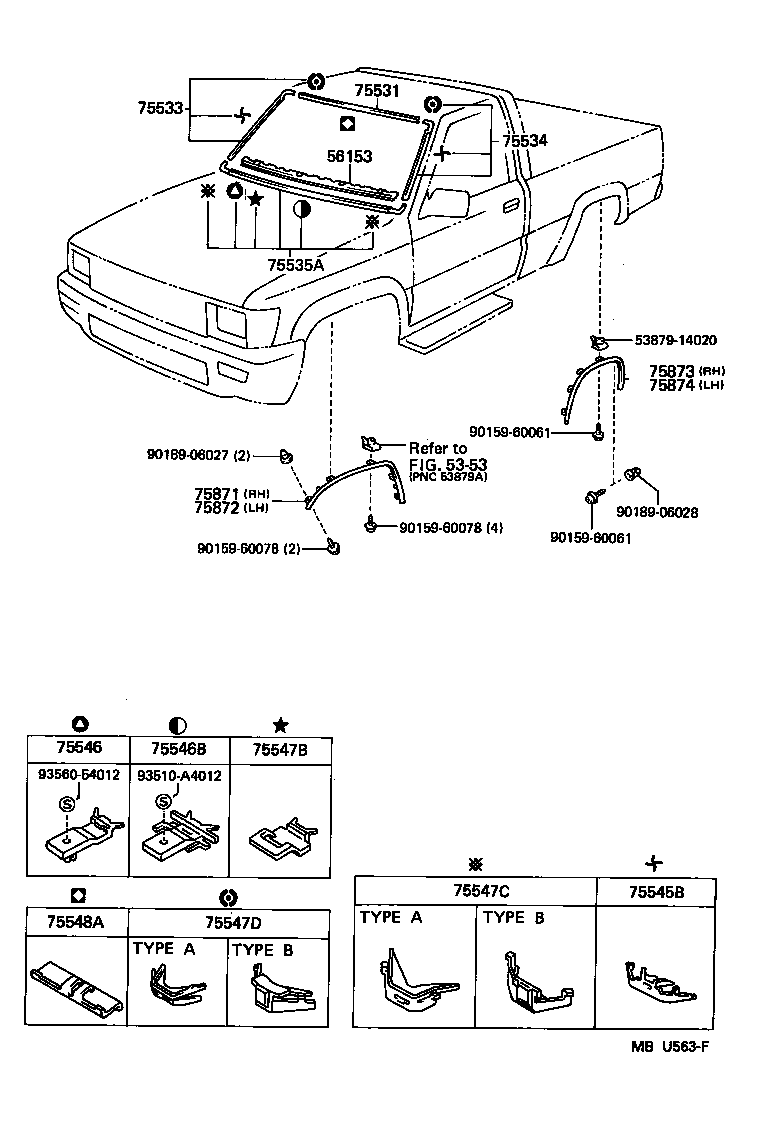

Click highlighted areas on diagram

diagram 5353 5387914020 56153 75531 75533 75534 75535A 75545B 75546 75546B 75547B 75547C 75547D 75548A 75871 75872 75873 75874 9015960061 9015960061 9015960078 9015960078 9018906027 9018906028 93510A4012 9356054012
Part # Description Qty Price
56153 - MOULDING, FRONT WINDOW, INNER CENTER
56153-89102

RN10#,110,13#,VZN10#,110,13#

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-89106

RN10#,110,13#,VZN10#,110,13#

PLATED,CHROME PLATED PACKAGE

 1
75531-89105

RN10#,110,13#,VZN10#,110,13#

NO PAINT REQ.,PLANT NO.P11

 1
75531-89109

RN10#,110,13#,VZN10#,110,13#

NO PAINT REQ.

 1
75531-89105

RN10#,110,VZN10#,110

NO PAINT REQ.,PLANT NO. P11

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
76503-89105

RN10#,110,13#,VZN10#,110,13#

PLANT NO. A51,A52

 1
76503-89103

RN10#,110,13#,VZN10#,110,13#

PLANT NO. P11

 1
76503-89104

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
76504-89103

RN10#,110,13#,VZN10#,110,13#

PLANT NO. P11

 1
76504-89105

RN10#,110,13#,VZN10#,110,13#

PLANT NO. A51,A52

 1
76504-89104

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 1
75535A - MOULDING, WINDSHIELD, OUTSIDE LOWER
75504-89103

RN10#,110,13#,VZN10#,110,13#

PLANT NO. P11

 1
75504-89105

RN10#,110,13#,VZN10#,110,13#

PLANT NO. A51,A52

 1
75504-89104

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-89102

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 6
75545-89103

RN10#,110,13#,VZN10#,110,13#

PLANT NO. A51,A52

 6
75545-89102

RN10#,110,13#,VZN10#,110,13#

PLANT NO. P11

 6
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75546-89106

RN10#,110,13#,VZN10#,110,13#

 2
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-89103

RN10#,110,13#,VZN10#,110,13#

PLANT NO. P11

 5
75546-89103

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 5
75546-89105

RN10#,110,13#,VZN10#,110,13#

PLANT NO. A51,A52

 3
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89103

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE

 4
75547-89103

RN10#,110,13#,VZN10#,110,13#

RH

 4
75547-89108

RN10#,110,13#,VZN10#,110,13#

LH

 6
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89107

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE,LH,TYPE A

 1
75547-89106

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE,RH,TYPE A

 1
75547-89112

RN10#,110,13#,VZN10#,110,13#

LH,TYPE B

 1
75547-89111

RN10#,110,13#,VZN10#,110,13#

RH,TYPE B

 1
75547D - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-89110

RN10#,110,13#,VZN10#,110,13#

LH,TYPE B

 1
75547-89109

RN10#,110,13#,VZN10#,110,13#

RH,TYPE B

 1
75547-89105

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE,LH,TYPE A

 1
75547-89104

RN10#,110,13#,VZN10#,110,13#

CHROME PLATED PACKAGE,RH,TYPE A

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

RN10#,110,13#,VZN10#,110,13#

 4
75871 - MOULDING, FRONT FENDER WHEEL OPENING, RH
75085-89104

VZN10#,110..DLX

PLATING TYPE

 1
75085-89105

VZN10#,110..CBU

W(FRONT WHEEL OPENING EXTENTION)

 1
75085-89104

RN10#,110;VZN100,110..SR5..CBU

 1
75872 - MOULDING, FRONT FENDER WHEEL OPENING, LH
75086-89104

RN10#,110;VZN100,110..SR5..CBU

 1
75086-89104

VZN10#,110..DLX

PLATING TYPE

 1
75086-89105

VZN10#,110..CBU

W(FRONT WHEEL OPENING EXTENTION)

 1
75873 - MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873-89108

VZN10#,110..CBU

W(REAR WHEEL OPENING EXTENTION)

 1
75873-89106

RN10#,110;VZN100,110..SR5..CBU

 1
75873-89106

VZN10#,110..DLX..CBU

PLATING TYPE

 1
75874 - MOULDING, QUARTER PANEL WHEEL OPENING, LH
75874-89106

VZN10#,110..DLX..CBU

PLATING TYPE

 1
75874-89108

VZN10#,110..CBU

W(REAR WHEEL OPENING EXTENTION)

 1
75874-89106

RN10#,110;VZN100,110..SR5..CBU

 1
Common parts
53879-14020
90159-60061
90159-60078
90189-06027
90189-06028
93510-A4012
93560-54012
Linked diagrams
5353
