RN110L-CRMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Jan 1995
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

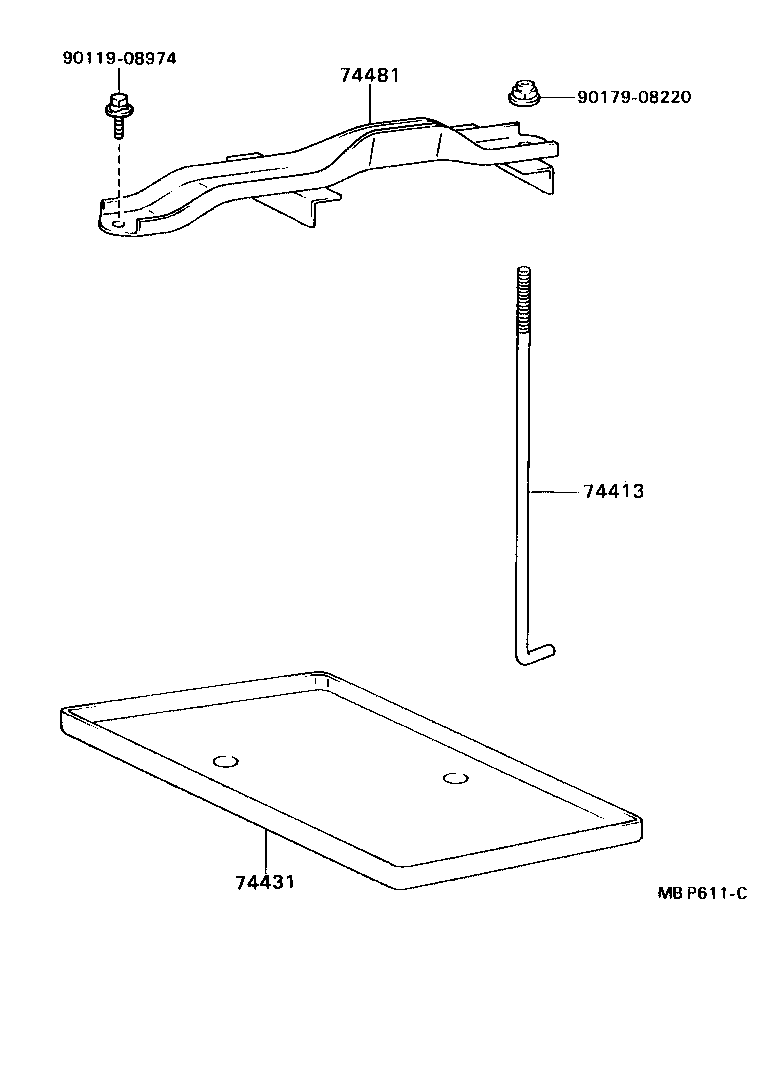

Click highlighted areas on diagram

diagram 74413 74431 74481 9011908974 9017908220
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-35030

RN10#,110,13#,VZN10#,110,13#

 1
74451-89103

RN10#,110,13#,VZN10#,110,13#

 1
74451-35040

RN10#,110,13#,VZN10#,110,13#

 1
74431 - TRAY, BATTERY
74431-89110

VZN10#,110,130..USA

W(80D26R BATTERY)

 1
74431-89107

VZN10#,110..USA;RN10#,110,13#,VZN130

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-89114

VZN10#,110..USA;RN10#,110,13#,VZN130

 1
74404-89115

VZN10#,110,130..USA

W(80D26R BATTERY)

 1
Common parts
90119-08974
90179-08220
