RN110L-CRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

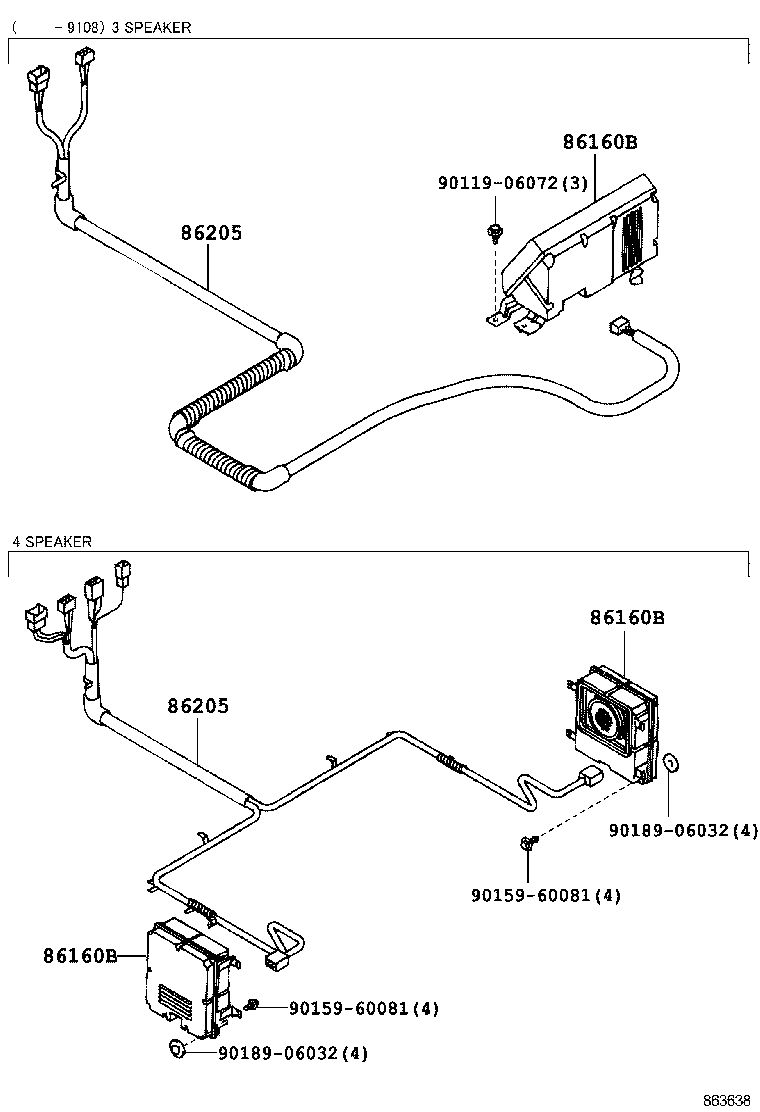

ILLUST NO. 2 OF 2(8808- )RN10#,110,VZN10#,110 ; (9108- )RN13#,VZN13#

Click highlighted areas on diagram

REAR

diagram 86160B 86160B 86160B 86205 86205 9011906072 9015960081 9015960081 9018906032 9018906032
Part # Description Qty Price
86160B - SPEAKER ASSY, REAR
86150-89106

RN110,VZN110

 2
86160B - SPEAKER ASSY, REAR
86150-89106

RN110,VZN110

 2
86160B - SPEAKER ASSY, REAR
86150-89106

RN110,VZN110

 2
86205 - WIRING SUB-ASSY, SPEAKER, RR
86205-89107

RN110,VZN110

 1
86205 - WIRING SUB-ASSY, SPEAKER, RR
86205-89107

RN110,VZN110

 1
Common parts
90119-06072
90159-60081
90189-06032

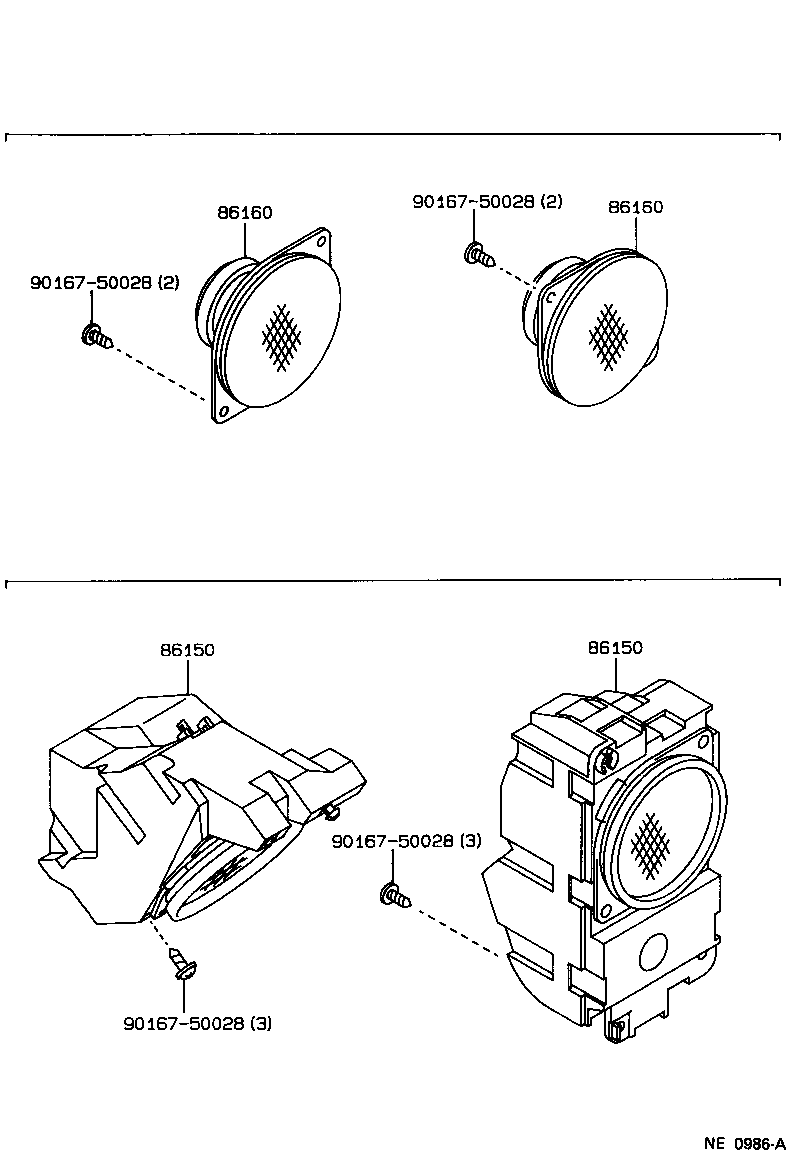

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

FRONT

diagram 86150 86150 86160 86160 9016750028 9016750028 9016750028 9016750028
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-89104

RN10#,110,130,VZN10#,110,130

RH

 1
86150-89103

RN10#,110,130,VZN10#,110,130

LH

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-89104

RN10#,110,130,VZN10#,110,130

RH

 1
86150-89103

RN10#,110,130,VZN10#,110,130

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

RN10#,110,13#,VZN10#,110,13#

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

RN10#,110,13#,VZN10#,110,13#

 2
Common parts
90167-50028
