RN110L-CRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(8808-9511)

Click highlighted areas on diagram

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908744 9017910016 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160820 9411040800 9411040800 9411040800 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

RN10#,110,13#,VZN10#,110,13#

 1
31478D - CAP, BLEEDER PLUG(FOR LSPV)
31478-30010

RN10#,110,13#,VZN10#,110,13#

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35210

RN110,13#,VZN110,13#

 1
47910-35160

RN110,VZN110

 1
47910B - PLUG, BLEEDER
47547-27020

RN10#,110,13#,VZN10#,110,13#

 1
47920 - SPRING ASSY, LOAD SENSING
47920-35050

RN10#,110,VZN10#,110

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RN10#,110,13#,VZN10#,110,13#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

RN10#,110,13#,VZN10#,110,13#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

RN10#,110,13#,VZN10#,110,13#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RN10#,110,13#,VZN10#,110,13#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

RN10#,110,13#,VZN10#,110,13#

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-35080

RN10#,110,VZN10#,110

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-35050

RN10#,110,VZN10#,110

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

RN10#,110,13#,VZN10#,110,13#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

RN10#,110,13#,VZN10#,110,13#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RN10#,110,13#,VZN10#,110,13#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

RN10#,110,13#,VZN10#,110,13#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

RN10#,110,13#,VZN10#,110,13#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35030

RN10#,110,VZN10#,110

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

RN10#,110,VZN10#,110

 1
Common parts
90119-08744
90179-10016
90201-23360
91131-50840
91611-60820
94110-40800
94141-40800
94512-00800
94512-01000
95381-02020

ILLUST NO. 1 OF 3(8808-9511)RN10#,110,VZN10#,110

Click highlighted areas on diagram

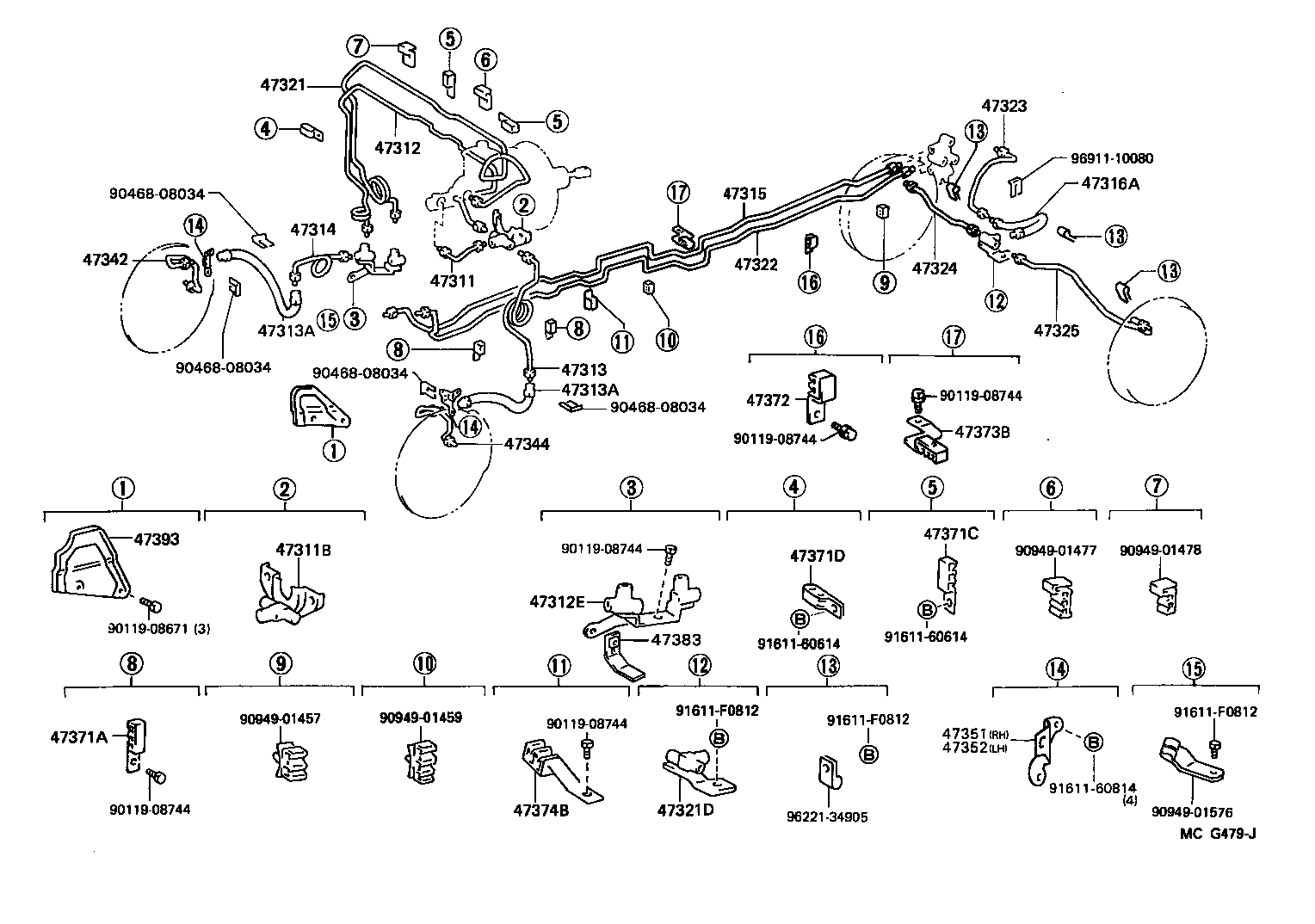

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47314 47315 47316A 47321 47321D 47322 47323 47324 47325 47342 47344 47351 47352 47371A 47371C 47371D 47372 47373B 47374B 47383 47393 9011908671 9011908744 9011908744 9011908744 9011908744 9011908744 9046808034 9046808034 9046808034 9046808034 9094901457 9094901459 9094901477 9094901478 9094901576 9161160614 9161160614 9161160814 91611F0812 91611F0812 91611F0812 9622134905 9691110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35440

RN10#,110,13#,VZN10#,110,13#

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10111

RN10#,110,13#,VZN10#,110,13#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-3D040

RN10#,110,13#,VZN10#,110,13#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10233

VZN10#,110..IV3;RN10#,110,13#,VZN13#

 1
90413-10233

RN10#,110,VZN10#,110

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35590

RN10#,110,13#,VZN10#,110,13#

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

VZN10#,110..IV3;RN10#,110,13#,VZN13#

 2
96950-33656

RN10#,110,VZN10#,110

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96950-33656

VZN10#,110..IV3;RN10#,110,13#,VZN13#

 2
96950-33656

RN10#,110,VZN10#,110

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-35240

RN10#,110,13#,VZN10#,110,13#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35160

RN110,VZN110

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-34406

RN10#,110,VZN10#,110

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35560

RN10#,110,13#,VZN10#,110,13#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90413-10162

RN10#,110,VZN10#,110

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35430

RN110,VZN110

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35120

RN10#,110,VZN10#,110

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35160

RN10#,110,VZN10#,110

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-35170

RN10#,110,VZN10#,110

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47341-35100

RN10#,110,13#,VZN10#,110,13#

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47343-35100

RN10#,110,13#,VZN10#,110,13#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352-35170

RN10#,110,13#,VZN10#,110,13#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47354-35080

RN10#,110,13#,VZN10#,110,13#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35080

RN110,VZN110

 3
47371C - CLAMP, BRAKE TUBE, NO.7
47371-35130

RN10#,110,13#,VZN10#,110,13#

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47372-35080

RN10#,110,13#,VZN10#,110,13#

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35030

RN10#,110,13#,VZN10#,110,13#

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-35150

RN10#,110,VZN10#,110

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47373-35050

RN10#,110,13#,VZN10#,110,13#

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35120

RN10#,110,VZN10#,110

 1
47393-35110

VZN10#,110..IV3;RN10#,110,13#,VZN13#

 1
Common parts
90119-08671
90119-08744
90468-08034
90949-01457
90949-01459
90949-01477
90949-01478
90949-01576
91611-60614
91611-60814
91611-F0812
96221-34905
96911-10080
