RN110L-CRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

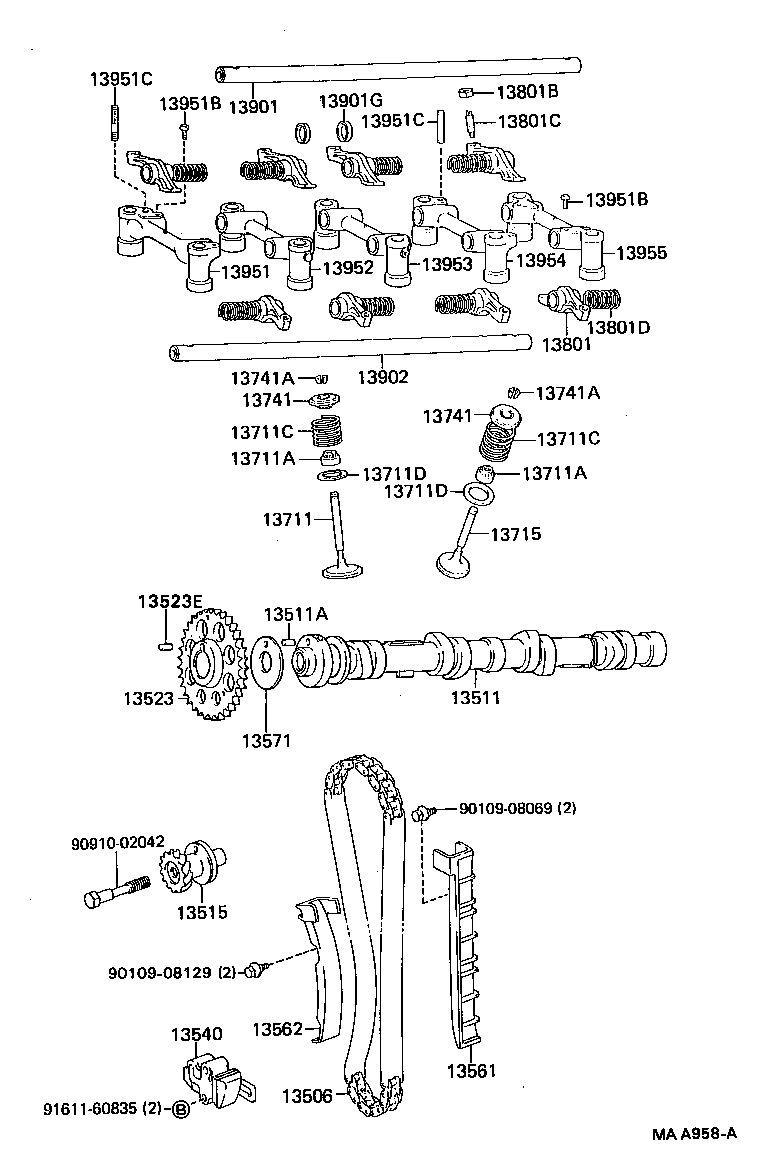

Click highlighted areas on diagram

diagram 13506 13511 13511A 13515 13523 13523E 13540 13561 13562 13571 13711 13711A 13711A 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801B 13801C 13801D 13901 13901G 13902 13951 13951B 13951B 13951C 13951C 13952 13953 13954 13955 9010908069 9010908129 9091002042 9161160835
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-35030

22RE..RN10#,110,13#

 1
13511 - CAMSHAFT
13511-38011

22RE..RN10#,110,13#

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-06001

22RE..RN10#,110,13#

L=14,OD=6

 1
13515 - GEAR, DISTRIBUTOR DRIVE
13515-37010

22RE..RN10#,110,13#

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-35020

22RE..RN10#,110,13#

 1
13523E - PIN, STRAIGHT(FOR TIMING GEAR)
90250-06001

22RE..RN10#,110,13#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-35011

22RE..RN10#,110,13#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-35020

22RE..RN10#,110,13#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-35020

22RE..RN10#,110,13#

 1
13571 - PLATE, CAMSHAFT THRUST
13571-35010

22RE..RN10#,110,13#

 1
13711 - VALVE, INTAKE
13711-35010

22RE..RN10#,110,13#

 4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02072

22RE..RN10#,110,13#

 8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02072

22RE..RN10#,110,13#

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45025

22RE..RN10#,110,13#

 8
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45025

22RE..RN10#,110,13#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-20579

22RE..RN10#,110,13#

 8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-20579

22RE..RN10#,110,13#

 8
13715 - VALVE, EXHAUST
13715-35020

22RE..RN10#,110,13#

 4
13741 - RETAINER, VALVE SPRING
13741-38010

22RE..RN10#,110,13#

 8
13741 - RETAINER, VALVE SPRING
13741-38010

22RE..RN10#,110,13#

 8
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

22RE..RN10#,110,13#

 16
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

22RE..RN10#,110,13#

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-35010

22RE..RN10#,110,13#

 8
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90179-08049

22RE..RN10#,110,13#

 8
13801C - SCREW, VALVE ADJUSTING
90913-05019

22RE..RN10#,110,13#

 8
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14064

22RE..RN10#,110,13#

 8
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13911-35010

22RE..RN10#,110,13#

 1
13901G - WASHER, ROCKER SHAFT
90560-16008

22RE..RN10#,110,13#

 2
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13912-35010

22RE..RN10#,110,13#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-38012

22RE..RN10#,110,13#

 1
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
93210-16008

22RE..RN10#,110,13#

 3
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
93210-16008

22RE..RN10#,110,13#

 3
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08197

22RE..RN10#,110,13#

 4
13951C - BOLT, STUD(FOR ROCKER SUPPORT)
90116-08197

22RE..RN10#,110,13#

 4
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-38010

22RE..RN10#,110,13#

 1
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-38010

22RE..RN10#,110,13#

 1
13954 - SUPPORT, VALVE ROCKER, NO.4
13954-38011

22RE..RN10#,110,13#

 1
13955 - SUPPORT, VALVE ROCKER, NO.5
13955-38010

22RE..RN10#,110,13#

 1
Common parts
90109-08069
90109-08129
90910-02042
91611-60835
