RN110L-CRLSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9308) ; (9308- )RN10#,110,13#,VZN100,110

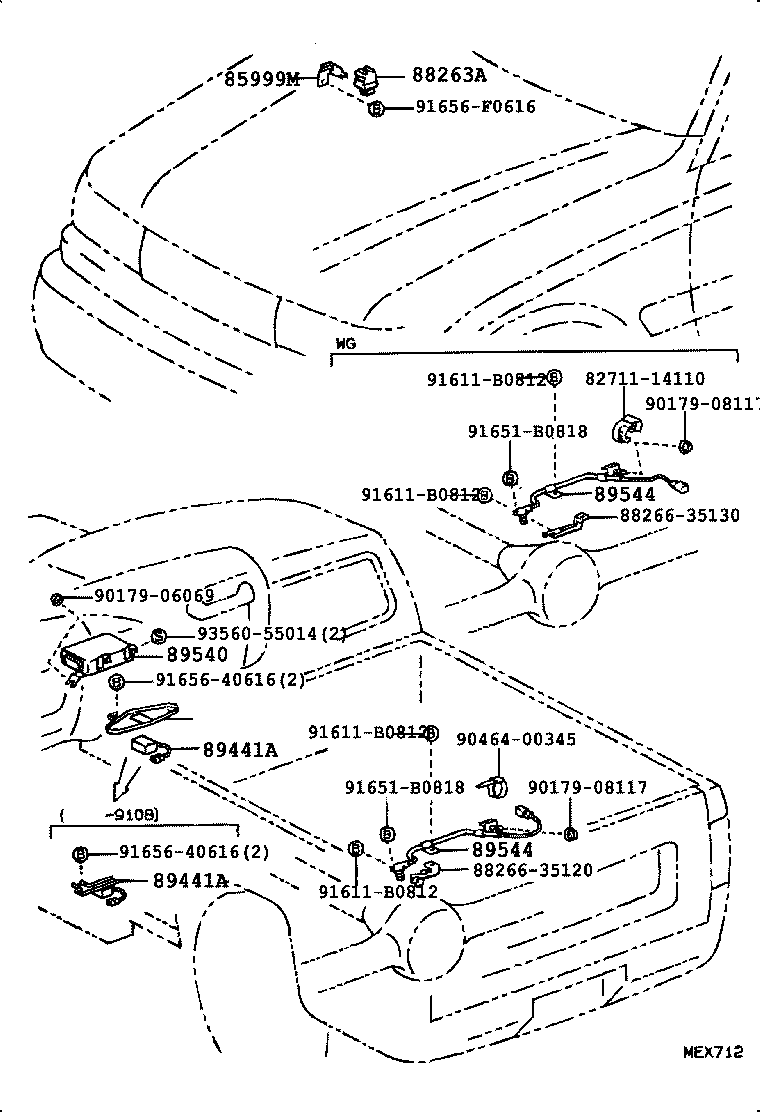

Click highlighted areas on diagram

diagram 8271114110 85999M 88263A 8826635120 8826635130 89441A 89441A 89540 89544 89544 9017906069 9017908117 9017908117 9046400345 91611B0812 91611B0812 91611B0812 91611B0812 91651B0818 91651B0818 9165640616 9165640616 91656F0616 9356055014
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-35010

RN101,110,13#,VZN100,110,13#..SR5

 1
88263A - RELAY, SKID CONTROL
88263-35070

RN101,110,13#,VZN100,110,13#..SR5

 1
89441A - SENSOR, DECELERATION
89441-35010

RN101,110,13#,VZN100,110,13#..SR5

 1
89441A - SENSOR, DECELERATION
89441-35010

RN101,110,13#,VZN100,110,13#..SR5

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-35010

RN101,110,13#,VZN100,110,13#..SR5

 1
89544 - SENSOR, SKID CONTROL
89544-35020

RN101,110,VZN100,110..SR5

 1
89544 - SENSOR, SKID CONTROL
89544-35020

RN101,110,VZN100,110..SR5

 1
Common parts
82711-14110
88266-35120
88266-35130
90179-06069
90179-08117
90464-00345
91611-B0812
91651-B0818
91656-40616
91656-F0616
93560-55014
