RN110L-CRLSEA (1988)
Toyota 4-Runner Truck (Jpp)

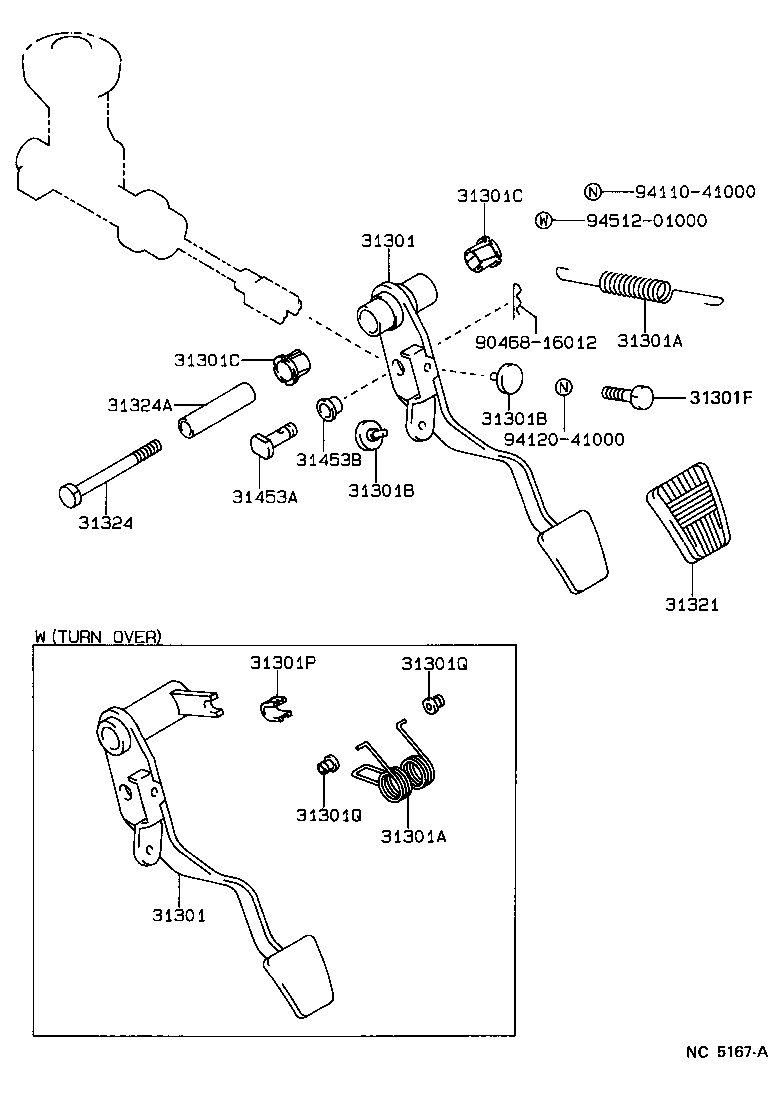

ILLUST NO. 1 OF 2(8808- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-35020 |
VZN10#,110,13#..R |
1 | ||
| 31301-35170 |
RN10#,110,13#..5F |
1 | ||
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-35020 |
VZN10#,110,13#..R |
1 | ||
| 31301-35170 |
RN10#,110,13#..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14030 |
RN10#,110,13#..5F |
1 | ||
| 90508-35020 |
VZN10#,110,13#..R |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14030 |
RN10#,110,13#..5F |
1 | ||
| 90508-35020 |
VZN10#,110,13#..R |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
RN10#,110,13#,VZN10#,110,13#..5F |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
RN10#,110,13#,VZN10#,110,13#..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RN10#,110,13#,VZN10#,110,13#..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
RN10#,110,13#,VZN10#,110,13#..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-04002 |
VZN10#,110,13#..R |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-04009 |
VZN10#,110,13#..R |
2 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-04009 |
VZN10#,110,13#..R |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
RN10#,110,13#..5F |
1 | ||
| 91121-51085 |
VZN10#,110,13#..R |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10027 |
RN10#,110,13#..5F |
1 | ||
| 90387-10103 |
VZN10#,110,13#..R |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
RN10#,110,13#,VZN10#,110,13#..5F L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
RN10#,110,13#,VZN10#,110,13#..5F |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

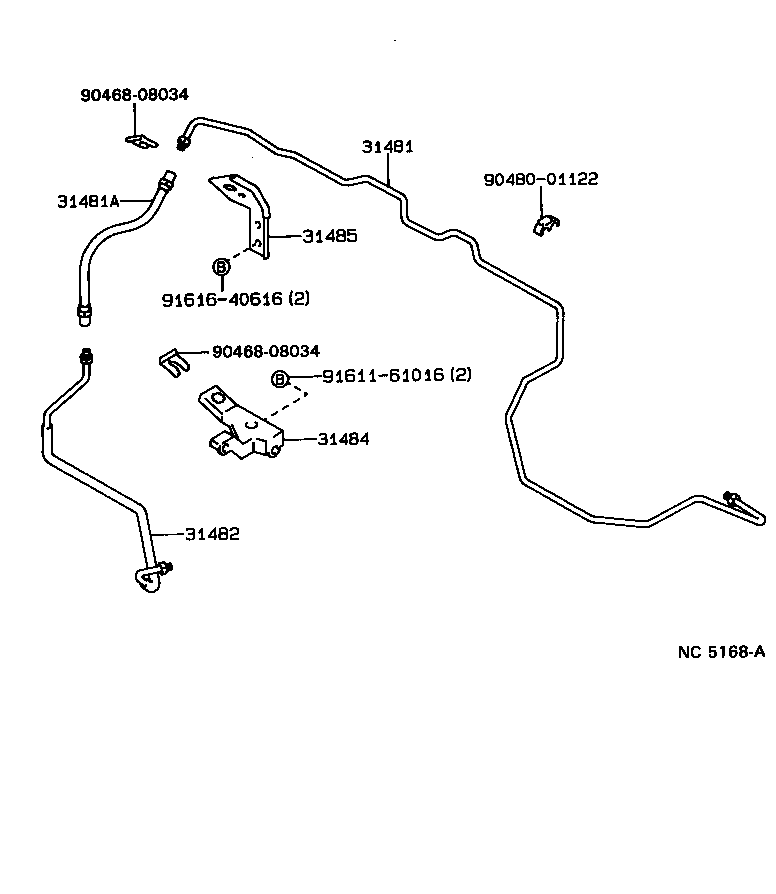

ILLUST NO. 2 OF 2(8808- )R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-35340 |
VZN10#,110,13#..R |
1 | ||
| 31481-35330 |
RN10#,110,13#..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96816-51270 |
VZN10#,110,13#..R |
1 | ||
| 90931-01032 |
RN10#,110,13#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35250 |
VZN10#,110,13#..R |
1 | ||
| 31482-35200 |
RN10#,110,13#..5F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35160 |
VZN10#,110,13#..R |
1 | ||
| 31484-35141 |
RN10#,110,13#..5F |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31485-35140 |
VZN10#,110,13#..R |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
| 90480-01122 | ||||
| 91611-61016 | ||||
| 91616-40616 | ||||

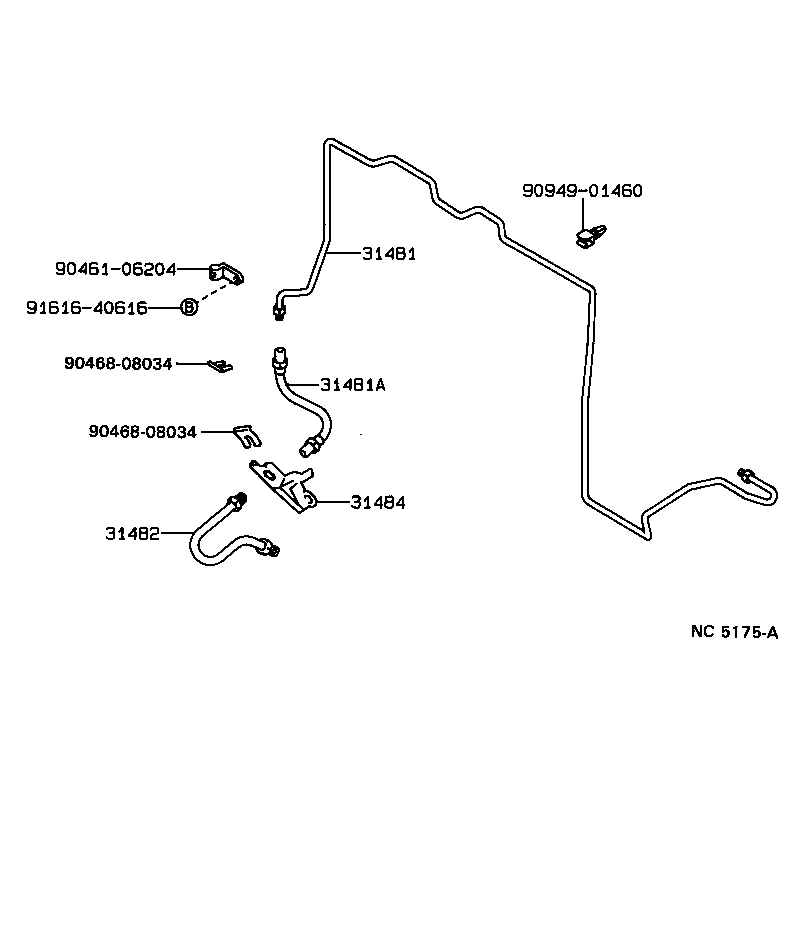

ILLUST NO. 2 OF 2(8808- )RN10#,110,13#..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-35340 |
VZN10#,110,13#..R |
1 | ||
| 31481-35330 |
RN10#,110,13#..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96816-51270 |
VZN10#,110,13#..R |
1 | ||
| 90931-01032 |
RN10#,110,13#..5F |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35250 |
VZN10#,110,13#..R |
1 | ||
| 31482-35200 |
RN10#,110,13#..5F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35160 |
VZN10#,110,13#..R |
1 | ||
| 31484-35141 |
RN10#,110,13#..5F |
1 | ||
| Common parts | ||||
| 90461-06204 | ||||
| 90468-08034 | ||||
| 90949-01460 | ||||
| 91616-40616 | ||||
