RN110L-CRLSEA (1988)
Toyota 4-Runner Truck (Jpp)

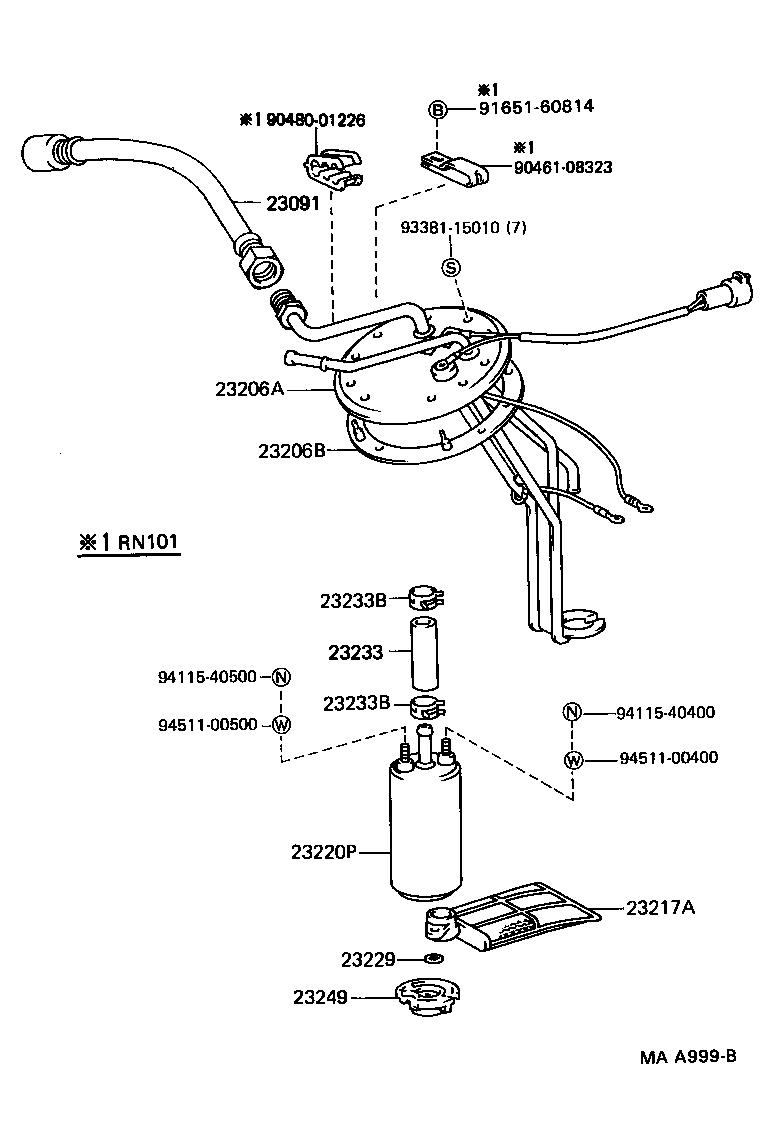

ILLUST NO. 2 OF 2(8808-9108)22RE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-35030 |
22RE..RN106,110 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-35121 |
22RE..RN106,110 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
22RE..RN10#,110,13# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-35040 |
22RE..RN10#,110,13# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
22RE..RN10#,110,13# AISAN |
1 | ||
| 23220-16190 |
22RE..RN10#,110,13# NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
22RE..RN10#,110,13# |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
22RE..RN10#,110 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
22RE..RN10#,110 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
22RE..RN10#,110 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
22RE..RN10#,110 |
1 | ||
| Common parts | ||||
| 90461-08323 | ||||
| 90480-01226 | ||||
| 91651-60814 | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

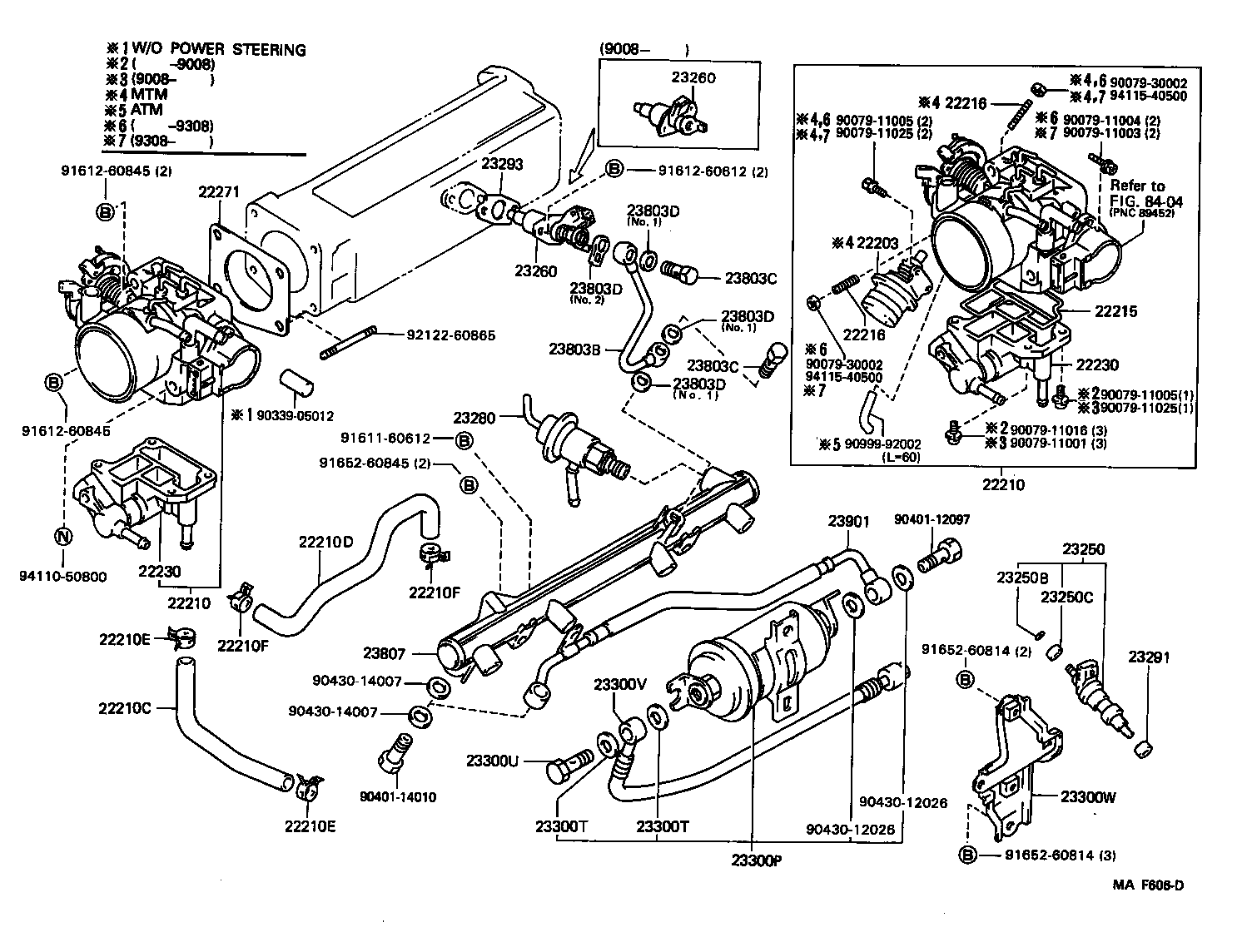

ILLUST NO. 1 OF 2(8808- )22RE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22202-35271 |
22RE..RN10#,110,13#..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-35270 |
22RE..RN10#,110,13#..5F |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-35270 |
22RE..RN10#,110,13#..5F |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16267-35030 |
22RE..RN10#,110,13# |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-35030 |
22RE..RN10#,110,13# |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
22RE..RN10#,110,13# |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13001 |
22RE..RN10#,110,13# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
22RE..RN10#,110,13# |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13001 |
22RE..RN10#,110,13# |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-35270 |
22RE..RN10#,110,13# |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
22RE..RN10#,110,13#..5F |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
22RE..RN10#,110,13#..5F |
2 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-35030 |
22RE..RN10#,110,13#..5F |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-35030 |
22RE..RN10#,110,13#..5F |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-35020 |
22RE..RN10#,110,13# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-35040 |
22RE..RN10#,110,13# |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
22RE..RN10#,110,13# |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
22RE..RN10#,110,13# |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-39065 |
22RE..RN10#,110,13# |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-39065 |
22RE..RN10#,110,13# |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-35030 |
22RE..RN10#,110,13# |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
22RE..RN10#,110,13# |
4 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-35020 |
22RE..RN10#,110,13# |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-39035 |
22RE..RN10#,110,13# |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
22RE..RN10#,110,13# |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
22RE..RN10#,110,13# |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
22RE..RN10#,110,13# |
1 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 23906-35010 |
22RE..RN10#,110,13# |
1 | ||
| 23300W - BRACKET, FUEL FILTER | ||||
| 23264-35020 |
22RE..RN10#,110,13# |
1 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23801-35010 |
22RE..RN10#,110,13# |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
22RE..RN10#,110,13# |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-08003 |
22RE..RN10#,110,13# |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08009 |
22RE..RN10#,110,13# NO.1 |
3 | ||
| 90430-08011 |
22RE..RN10#,110,13# NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08009 |
22RE..RN10#,110,13# NO.1 |
3 | ||
| 90430-08011 |
22RE..RN10#,110,13# NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08009 |
22RE..RN10#,110,13# NO.1 |
3 | ||
| 90430-08011 |
22RE..RN10#,110,13# NO.2 |
1 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90430-08009 |
22RE..RN10#,110,13# NO.1 |
3 | ||
| 90430-08011 |
22RE..RN10#,110,13# NO.2 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-35020 |
22RE..RN10#,110,13# |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-35010 |
22RE..RN10#,110,13# |
1 | ||
| Common parts | ||||
| 90079-11001 | ||||
| 90079-11003 | ||||
| 90079-11004 | ||||
| 90079-11005 | ||||
| 90079-11016 | ||||
| 90079-11025 | ||||
| 90079-30002 | ||||
| 90339-05012 | ||||
| 90401-12097 | ||||
| 90401-14010 | ||||
| 90430-12026 | ||||
| 90430-14007 | ||||
| 90999-92002 | ||||
| 91611-60612 | ||||
| 91612-60612 | ||||
| 91612-60845 | ||||
| 91652-60814 | ||||
| 91652-60845 | ||||
| 92122-60865 | ||||
| 94110-50800 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
