RN106L-TRPDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

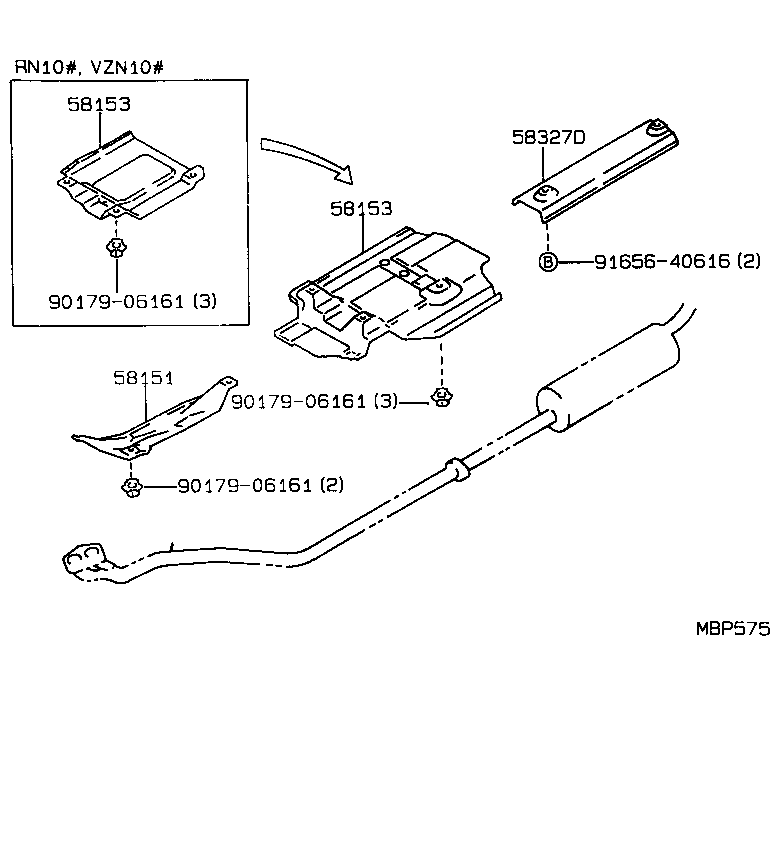

Click highlighted areas on diagram

diagram 58151 58153 58153 58327D 9017906161 9017906161 9017906161 9165640616
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89111

RN10#,13#,VZN10#,13#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-89111

RN10#,13#,VZN10#,13#

 1
58327D - INSULATOR, MAIN MUFFLER HEAT, UPPER
58327-89106

RN10#,110,VZN10#,110

 1
Common parts
90179-06161
91656-40616
