RN106L-TRPDEK (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE..RN10#,110

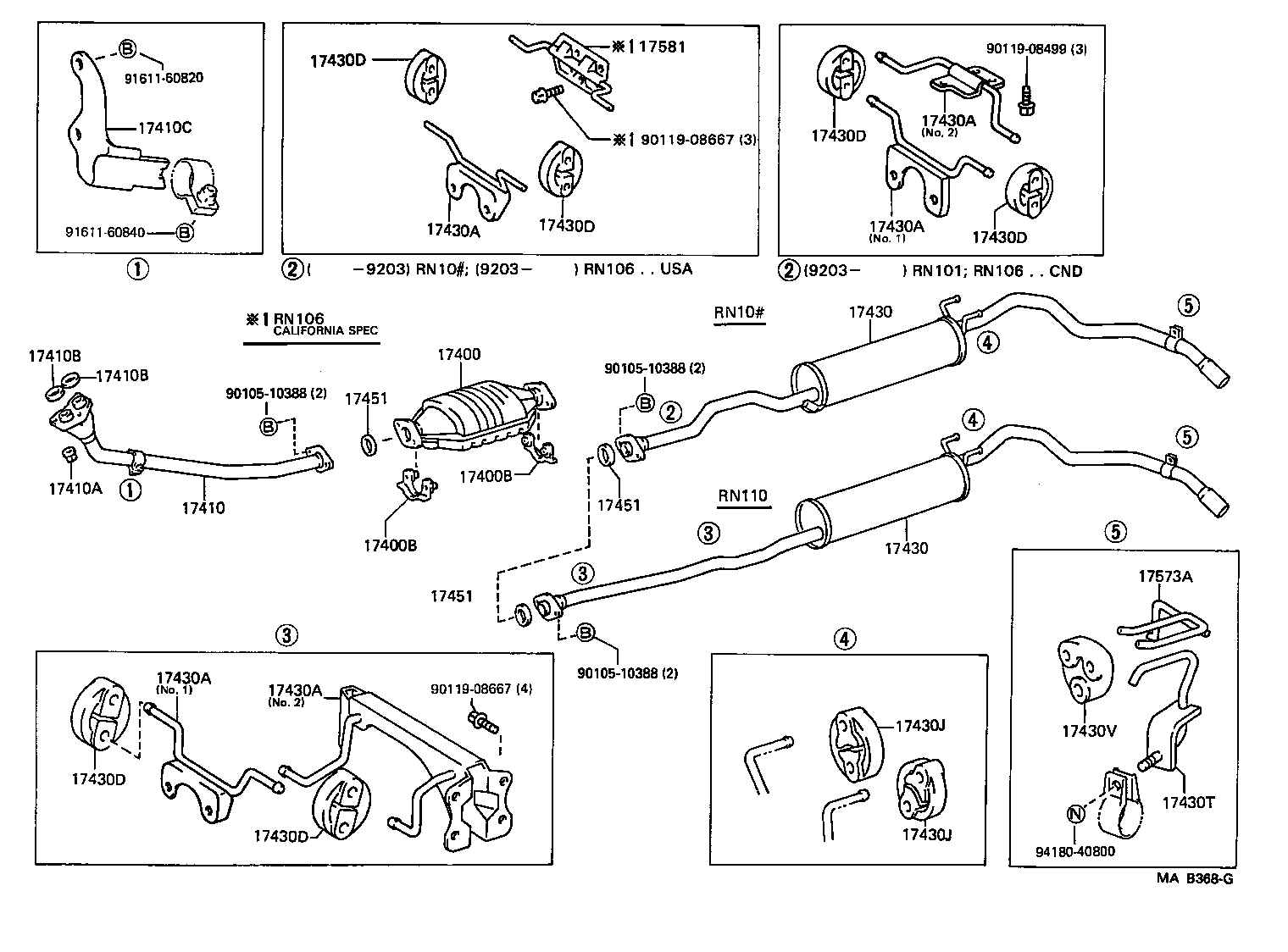

Click highlighted areas on diagram

diagram 17400 17400B 17400B 17410 17410A 17410B 17410B 17410C 17430 17430 17430A 17430A 17430A 17430A 17430A 17430D 17430D 17430D 17430D 17430D 17430D 17430J 17430J 17430T 17430V 17451 17451 17451 17573A 17581 9010510388 9010510388 9010510388 9011908499 9011908667 9011908667 9161160820 9161160840 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-35130

22RE..RN10#,110,13#

(J)

 1
17400B - RETAINER, EXHAUST PIPE
18495-38020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

FR

 1
18495-38020

22RE,3VZE..RN10#,110,VZN10#,110

RR

 1
17400B - RETAINER, EXHAUST PIPE
18495-38020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

FR

 1
18495-38020

22RE,3VZE..RN10#,110,VZN10#,110

RR

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35320

22RE..RN10#,110,13#..4FC

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

22RE..RN10#,110,13#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

22RE..RN10#,110,13#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-35040

22RE..RN10#,110,13#

(J)

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35870

22RE..RN106

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-35870

22RE..RN106

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35130

22RE..RN10#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35130

22RE..RN10#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35130

22RE..RN10#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35130

22RE..RN10#

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35130

22RE..RN10#

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

(J)

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

 2
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-35040

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

 1
17451 - GASKET, EXHAUST PIPE
90917-06041

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

FR

 1
90917-06045

22RE,3VZE..RN10#,110,VZN10#,110

RR

 1
17451 - GASKET, EXHAUST PIPE
90917-06041

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

FR

 1
90917-06045

22RE,3VZE..RN10#,110,VZN10#,110

RR

 1
17451 - GASKET, EXHAUST PIPE
90917-06041

22RE,3VZE..RN10#,110,13#,VZN10#,110,13#

FR

 1
90917-06045

22RE,3VZE..RN10#,110,VZN10#,110

RR

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17575-35040

22RE,3VZE..RN10#,110,VZN10#,110

 1
Common parts
90105-10388
90119-08499
90119-08667
91611-60820
91611-60840
94180-40800
