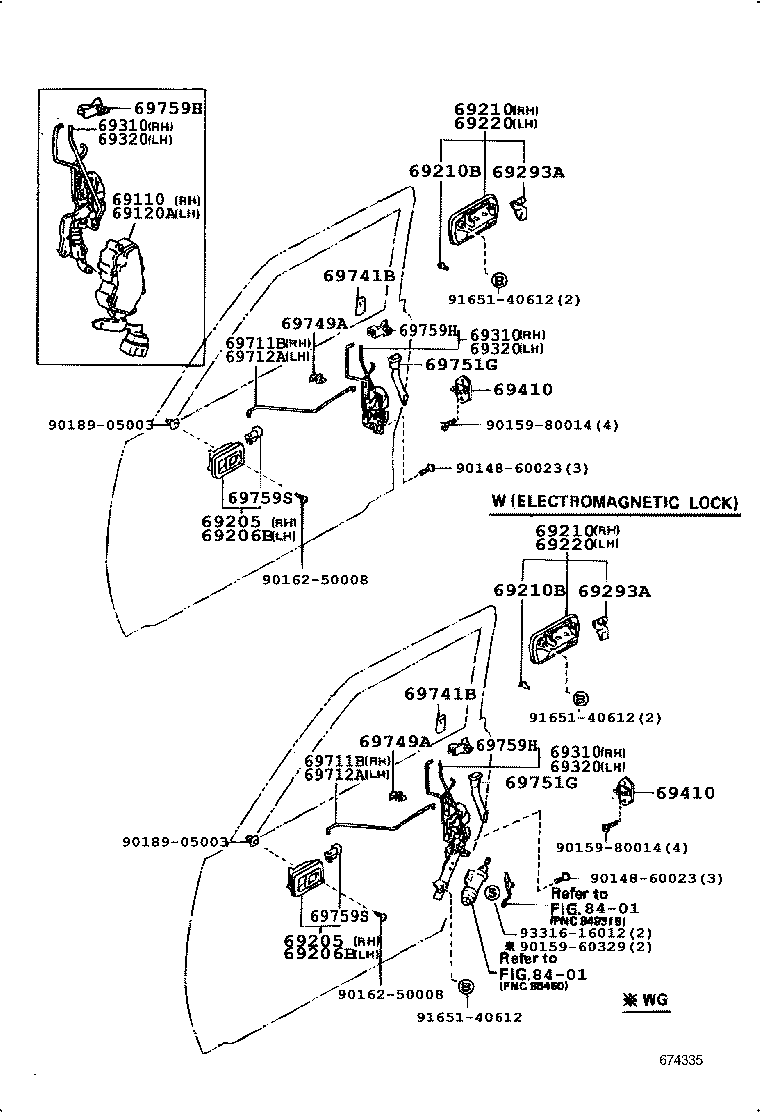

RN106L-TRPDEA3 (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )RN10#,110,VZN10#,110 ; (8904-9511)4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-8910504 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
1 | ||
| 69205-8910503 |
RN10#,110,VZN10#,110 GRAY,TRIM1# |
1 | ||
| 69205-8910506 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
1 | ||
| 69205-8910502 |
RN10#,110,13#,VZN10#,110,13#..4D,T1 RED,TRIM3# |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-8910504 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
1 | ||
| 69205-8910503 |
RN10#,110,VZN10#,110 GRAY,TRIM1# |
1 | ||
| 69205-8910506 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
1 | ||
| 69205-8910502 |
RN10#,110,13#,VZN10#,110,13#..4D,T1 RED,TRIM3# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-8910504 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
1 | ||
| 69206-8910502 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| 69206-8910503 |
RN10#,110,VZN10#,110 GRAY,TRIM1# |
1 | ||
| 69206-8910506 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-8910504 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
1 | ||
| 69206-8910502 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
1 | ||
| 69206-8910503 |
RN10#,110,VZN10#,110 GRAY,TRIM1# |
1 | ||
| 69206-8910506 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-89110 |
RN10#,110,13#,VZN10#,110,13# NO PAINT REQ. |
1 | ||
| 69210-89111 |
RN10#,110,13#,VZN10#,110,13# PLATED |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-89110 |
RN10#,110,13#,VZN10#,110,13# NO PAINT REQ. |
1 | ||
| 69210-89111 |
RN10#,110,13#,VZN10#,110,13# PLATED |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
RN10#,110,13#,VZN10#,110,13# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-89110 |
RN10#,110,13#,VZN10#,110,13# NO PAINT REQ. |
1 | ||
| 69220-89111 |
RN10#,110,13#,VZN10#,110,13# PLATED |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-89110 |
RN10#,110,13#,VZN10#,110,13# NO PAINT REQ. |
1 | ||
| 69220-89111 |
RN10#,110,13#,VZN10#,110,13# PLATED |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 69293-12040 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 69293-12040 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-89119 |
RN10#,110,VZN10#,110 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-89119 |
RN10#,110,VZN10#,110 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-89119 |
RN10#,110,VZN10#,110 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-89118 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-89118 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-89118 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-87001 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-89104 |
RN10#,110,VZN10#,110 |
1 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-89104 |
RN10#,110,VZN10#,110 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-89104 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-89104 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 |
1 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0023 |
RN10#,110,VZN10#,110 MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-90K0046 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
2 | ||
| 69741-90K0044 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
2 | ||
| 69741-90K0012 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0023 |
RN10#,110,VZN10#,110 MEDIUM GRAY,TRIM1# |
2 | ||
| 69741-90K0046 |
RN10#,110,VZN10#,110 BROWN,TRIM4# |
2 | ||
| 69741-90K0044 |
RN10#,110,VZN10#,110 BLUE,TRIM8# |
2 | ||
| 69741-90K0012 |
RN10#,110,13#,VZN10#,110,13# RED,TRIM3# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-89101 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-89101 |
RN10#,110,13#,VZN10#,110,13# |
2 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69752-89102 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 LH |
1 | ||
| 69751-89103 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 RH |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69752-89102 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 LH |
1 | ||
| 69751-89103 |
RN10#,110,13#,VZN10#,110,13#..2D,T1 RH |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
RN10#,110,13#,VZN10#,110,13# YELLOW |
1 | ||
| 69759-24020 |
RN10#,110,13#,VZN10#,110,13# BLUE |
1 | ||
| 69759-20110 |
RN10#,110,13#,VZN10#,110,13# BLACK |
1 | ||
| 69759-20050 |
RN10#,110,13#,VZN10#,110,13#..4D,T1 BROWN |
1 | ||
| 69759-20100 |
RN10#,110,13#,VZN10#,110,13# RED |
1 | ||
| 69759-24010 |
RN10#,110,13#,VZN10#,110,13# NATURAL |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
RN10#,110,13#,VZN10#,110,13# YELLOW |
1 | ||
| 69759-24020 |
RN10#,110,13#,VZN10#,110,13# BLUE |
1 | ||
| 69759-20110 |
RN10#,110,13#,VZN10#,110,13# BLACK |
1 | ||
| 69759-20050 |
RN10#,110,13#,VZN10#,110,13#..4D,T1 BROWN |
1 | ||
| 69759-20100 |
RN10#,110,13#,VZN10#,110,13# RED |
1 | ||
| 69759-24010 |
RN10#,110,13#,VZN10#,110,13# NATURAL |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-20040 |
RN10#,110,13#,VZN10#,110,13# YELLOW |
1 | ||
| 69759-24020 |
RN10#,110,13#,VZN10#,110,13# BLUE |
1 | ||
| 69759-20110 |
RN10#,110,13#,VZN10#,110,13# BLACK |
1 | ||
| 69759-20050 |
RN10#,110,13#,VZN10#,110,13#..4D,T1 BROWN |
1 | ||
| 69759-20100 |
RN10#,110,13#,VZN10#,110,13# RED |
1 | ||
| 69759-24010 |
RN10#,110,13#,VZN10#,110,13# NATURAL |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20070 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 69759-20060 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-20070 |
RN10#,110,13#,VZN10#,110,13# LH |
1 | ||
| 69759-20060 |
RN10#,110,13#,VZN10#,110,13# RH |
1 | ||
| Common parts | ||||
| 90148-60023 | ||||
| 90159-60329 | ||||
| 90159-80014 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 91651-40612 | ||||
| 93316-16012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
