RN106L-TRPDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

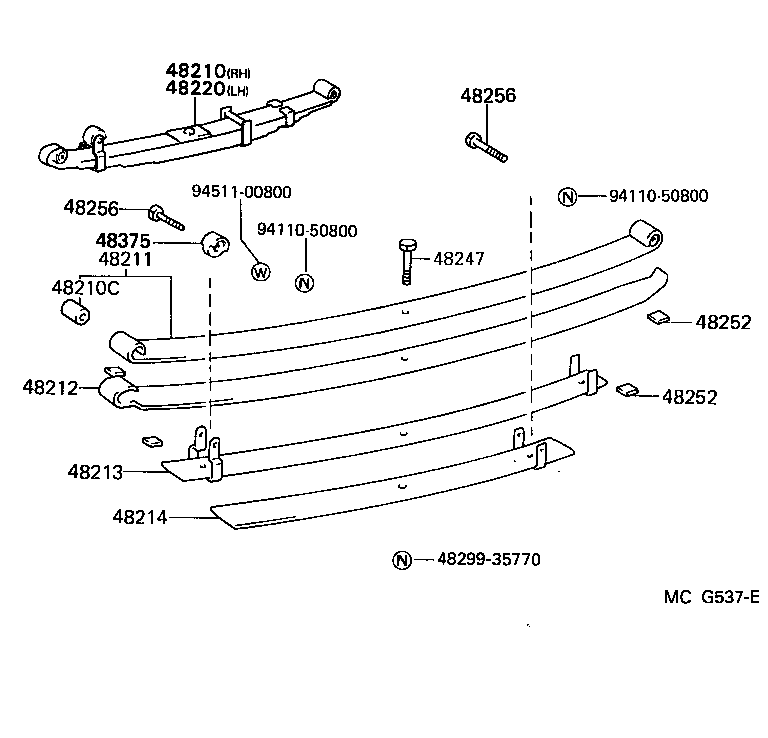

ILLUST NO. 2 OF 2(8808-9511)RN10#,VZN10#

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48220 48247 48252 48252 48256 48256 4829935770 48375 9411050800 9411050800 9451100800
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35770

RN10#,VZN10#

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-14004

RN10#,110,VZN10#,110

 4
48211 - LEAF, REAR SPRING, NO.1
48201-35770

RN10#,VZN10#

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35770

RN10#,VZN10#

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35770

RN10#,VZN10#

 2
48214 - LEAF, REAR SPRING, NO.4
48203-35770

RN10#,VZN10#

 2
48220 - SPRING ASSY, REAR LH
48210-35770

RN10#,VZN10#

 1
48247 - BOLT, REAR SPRING, CENTER
48247-26260

RN10#,VZN10#

 2
48252 - SILENCER, REAR SPRING
48252-26070

RN10#,110,VZN10#,110

 8
48252 - SILENCER, REAR SPRING
48252-26070

RN10#,110,VZN10#,110

 8
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35360

RN10#,VZN10#

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35360

RN10#,VZN10#

 2
48375 - DAMPER, LEAF SPRING DYNAMIC
48375-35011

RN10#,110,VZN10#,110

 2
Common parts
48299-35770
94110-50800
94511-00800

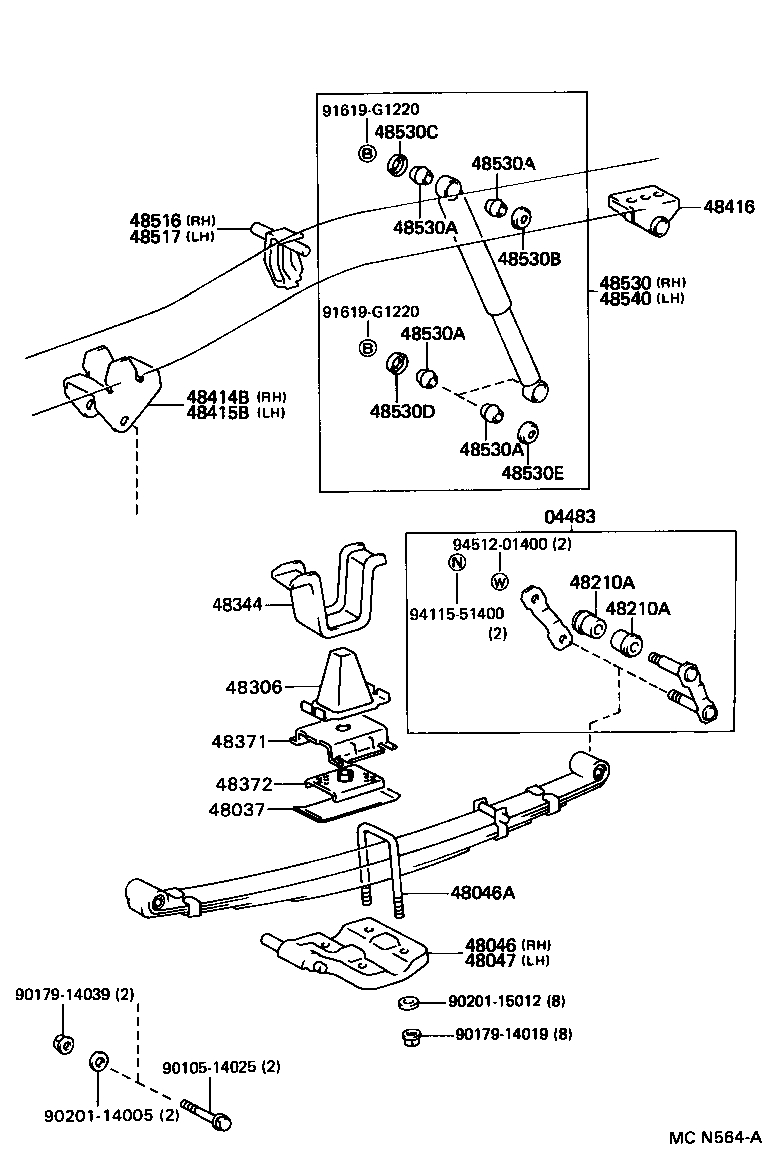

ILLUST NO. 1 OF 2(8808-9511)RN10#,110,VZN10#,110

Click highlighted areas on diagram

diagram 04483 48037 48046 48046A 48047 48210A 48210A 48306 48344 48371 48372 48414B 48415B 48416 48516 48517 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9010514025 9017914019 9017914039 9020114005 9020115012 91619G1220 91619G1220 9411551400 9451201400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-35060

RN10#,110,VZN10#,110

 2
48037 - SPACER SUB-ASSY, REAR SPRING
48037-35010

RN10#,VZN10#

 2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-35180

RN10#,VZN10#

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-14058

RN10#,VZN10#

L=171

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-35180

RN10#,VZN10#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18012

RN10#,110,VZN10#,110

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18012

RN10#,110,VZN10#,110

 4
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35130

RN10#,VZN10#

 2
48344 - STOPPER, BUMPER, REAR
48344-35020

RN10#,110,VZN10#,110

 2
48371 - RETAINER, REAR SPRING PAD
48371-35010

RN10#,VZN10#

 4
48414B - BRACKET, SPRING, NO.3 RH
48414-35120

RN10#,110,VZN10#,110

 1
48415B - BRACKET, SPRING, NO.3 LH
48415-35050

RN10#,110,VZN10#,110

 1
48416 - BRACKET, SPRING, NO.4
48416-35070

RN10#,110,VZN10#,110

 2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-35040

RN10#,110,VZN10#,110

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48506-35010

RN10#,110,VZN10#,110

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80064

RN10#,110

 1
48531-80066

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN10#,110

 8
90385-19004

RN10#,110

W(GAS SHOCK ABSORBER)

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN10#,110

 8
90385-19004

RN10#,110

W(GAS SHOCK ABSORBER)

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN10#,110

 8
90385-19004

RN10#,110

W(GAS SHOCK ABSORBER)

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-19002

RN10#,110

 8
90385-19004

RN10#,110

W(GAS SHOCK ABSORBER)

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03015

RN10#,110,VZN10#,110

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03011

RN10#,110,VZN10#,110

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03011

RN10#,110,VZN10#,110

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03015

RN10#,110,VZN10#,110

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48541-39125

RN10#,110

 1
48541-39135

RN10#,110

W(GAS SHOCK ABSORBER)

 1
Common parts
90105-14025
90179-14019
90179-14039
90201-14005
90201-15012
91619-G1220
94115-51400
94512-01400
