RN106L-TRPDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

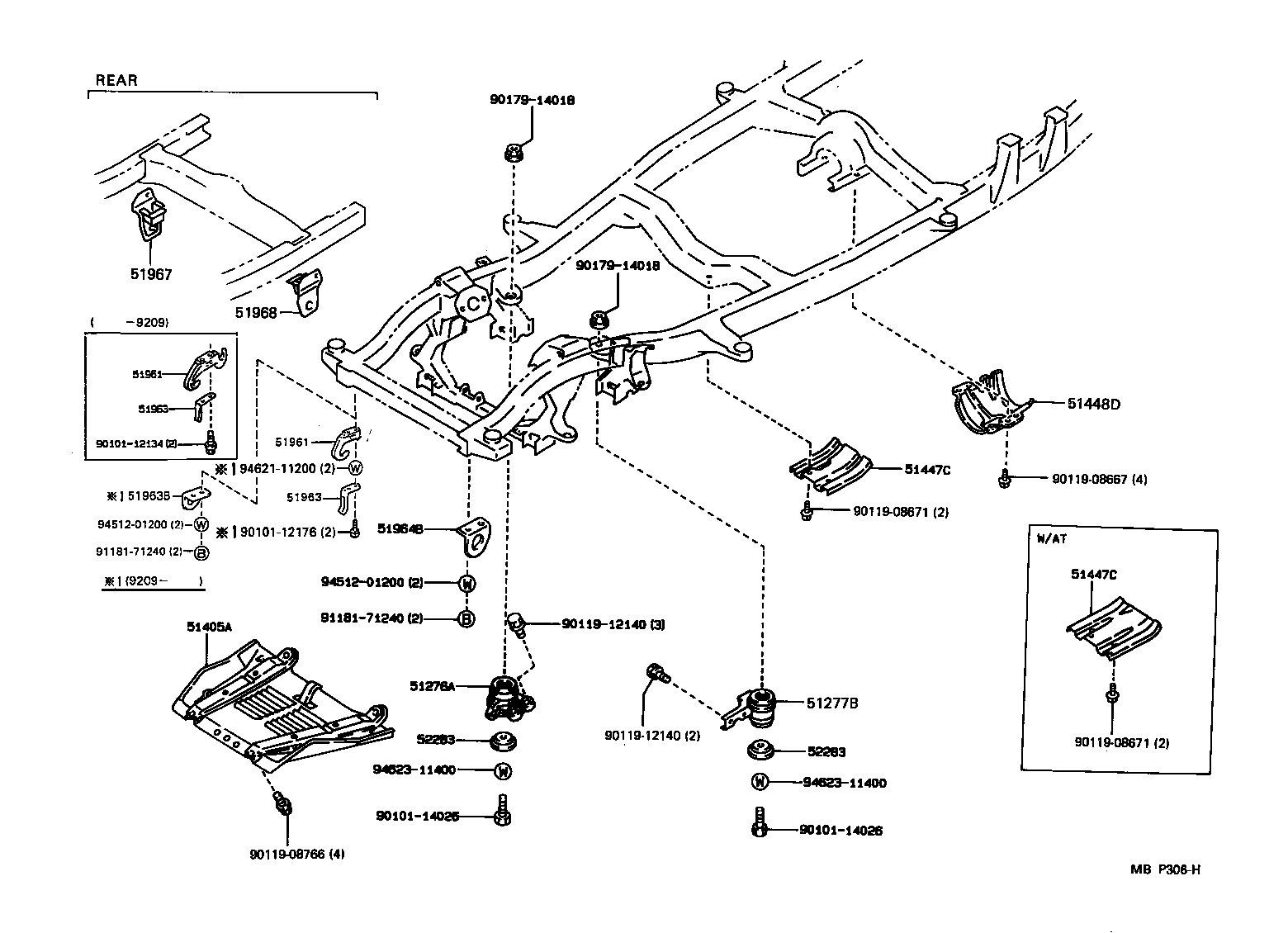

Click highlighted areas on diagram

diagram 51276A 51277B 51405A 51447C 51447C 51448D 51961 51961 51963 51963 51963B 51964B 51967 51968 52283 52283 9010112134 9010112176 9010114026 9010114026 9011908667 9011908671 9011908671 9011908766 9011912140 9011912140 9017914018 9017914018 9118171240 9118171240 9451201200 9451201200 9462111200 9462311400 9462311400
Part # Description Qty Price
51276A - BRACKET, DIFFERENTIAL SUPPORT
51250-35010

RN10#,110,13#,VZN10#,110,13#

 1
51277B - BRACKET ASSY, DIFFERENTIAL SUPPORT, LH
51260-35020

RN10#,110,13#,VZN10#,110,13#

 1
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51441-35150

RN10#,110,13#,VZN10#,110,13#

 1
51447C - PROTECTOR, TRANSFER CASE
51447-35031

VZN10#,110,13#;RN101,110,13#..G;RN106,110,13#..4FC

 1
51447C - PROTECTOR, TRANSFER CASE
51447-35031

VZN10#,110,13#;RN101,110,13#..G;RN106,110,13#..4FC

 1
51961 - HOOK, NO.1
51961-35030

RN10#,110,13#,VZN10#,110,13#

 1
51961 - HOOK, NO.1
51961-35030

RN10#,110,13#,VZN10#,110,13#

 1
51963 - STOPPER, HOOK WIRE
51963-35080

RN10#,110,13#,VZN10#,110,13#

 1
51963 - STOPPER, HOOK WIRE
51963-35080

RN10#,110,13#,VZN10#,110,13#

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-35050

RN10#,110,13#,VZN10#,110,13#

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-35010

RN10#,110,13#,VZN10#,110,13#

 1
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-35010

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90101-12134
90101-12176
90101-14026
90119-08667
90119-08671
90119-08766
90119-12140
90179-14018
91181-71240
94512-01200
94621-11200
94623-11400
