RN106L-TRMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

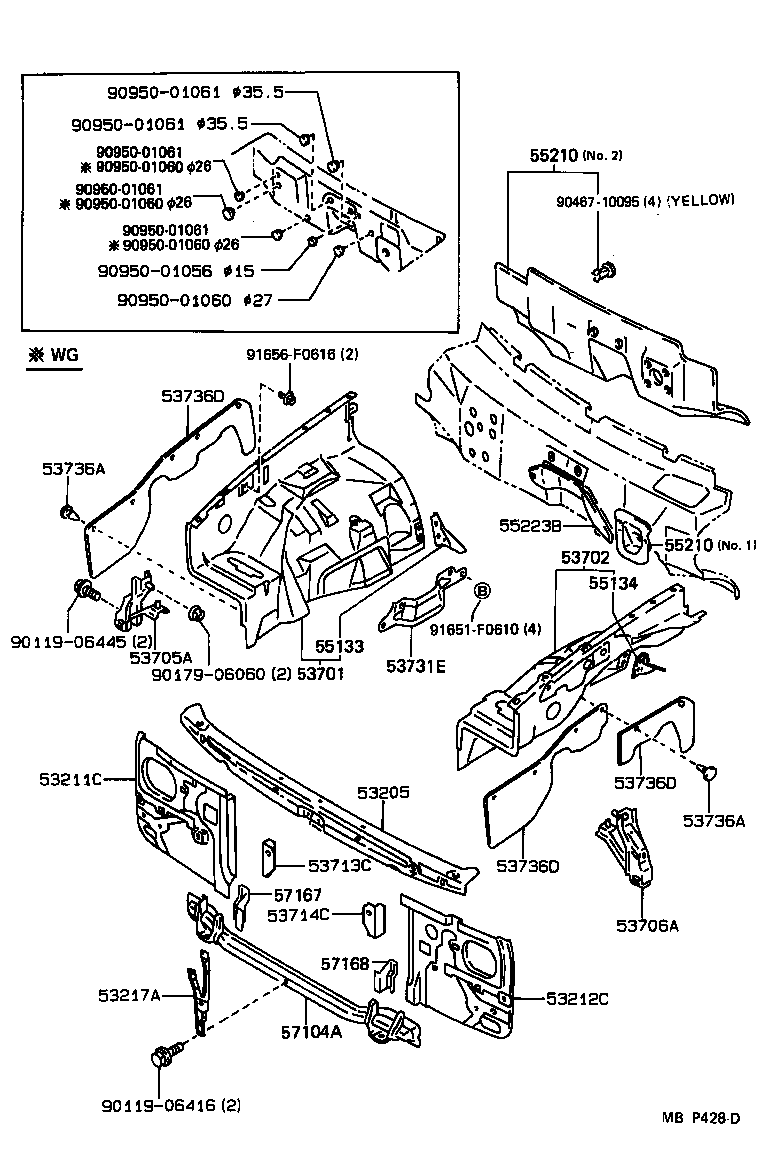

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 53205 53211C 53212C 53217A 53701 53702 53705A 53706A 53713C 53714C 53731E 53736A 53736A 53736D 53736D 53736D 55133 55134 55210 55210 55223B 57104A 57167 57168 9011906416 9011906445 9017906060 9046710095 9095001056 9095001060 9095001060 9095001060 9095001060 9095001061 9095001061 9095001061 9095001061 9095001061 91651F0610 91656F0616
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-89110

RN10#,110,13#,VZN10#,110,13#

 1
53211C - SUPPORT, RADIATOR, RH
53211-89123

RN10#,110,VZN10#,110

 1
53211-89124

RN10#,110,13#,VZN10#,110,13#

 1
53212C - SUPPORT, RADIATOR, LH
53212-89120

RN10#,110,VZN10#,110

 1
53212-89121

RN10#,110,13#,VZN10#,110,13#

 1
53217A - BRACE, HOOD LOCK SUPPORT
53217-89108

RN10#,110,VZN10#,110

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-89222

RN10#,110

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-89252

RN10#,110,VZN10#,110

 1
53705A - BRACE SUB-ASSY, FENDER APRON, RH
53705-89103

RN10#,110,13#,VZN10#,110,13#

 1
53706A - BRACE SUB-ASSY, FENDER APRON, LH
53706-89103

RN10#,110,13#,VZN10#,110,13#

 1
53713C - EXTENSION, FRONT FENDER APRON, FRONT RH
53713-89104

RN10#,110,13#,VZN10#,110,13#

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-89104

RN10#,110,13#,VZN10#,110,13#

 1
53731E - PATCH, FRONT FENDER APRON
53731-89108

RN10#,110,13#,VZN10#,110,13#

 1
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10107

RN10#,110,13#,VZN10#,110,13#

 10
53736A - CLIP(FOR FRONT FENDER APRON SEAL)
90467-10107

RN10#,110,13#,VZN10#,110,13#

 10
53736D - SEAL, FENDER APRON
53736-35090

RN10#,110,13#,VZN10#,110,13#

MARK=KK,PLANT A51-54

 1
53736-89126

RN10#,110,13#,VZN10#,110,13#

MARK=II

 1
53736-89127

RN10#,110,13#,VZN10#,110,13#

MARK=JJ

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736D - SEAL, FENDER APRON
53736-35090

RN10#,110,13#,VZN10#,110,13#

MARK=KK,PLANT A51-54

 1
53736-89126

RN10#,110,13#,VZN10#,110,13#

MARK=II

 1
53736-89127

RN10#,110,13#,VZN10#,110,13#

MARK=JJ

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736D - SEAL, FENDER APRON
53736-35090

RN10#,110,13#,VZN10#,110,13#

MARK=KK,PLANT A51-54

 1
53736-89126

RN10#,110,13#,VZN10#,110,13#

MARK=II

 1
53736-89127

RN10#,110,13#,VZN10#,110,13#

MARK=JJ

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
55133 - PLATE, FRONT FENDER APRON SET, LOWER RH
55133-89103

RN10#,110,13#,VZN10#,110,13#

 1
55134 - PLATE, FRONT FENDER APRON SET, LOWER LH
55134-89103

RN10#,110,13#,VZN10#,110,13#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-89158

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
55210-89158

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
55210-89151

RN10#,110,13#,VZN10#,110,13#

NO.1

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-89158

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
55210-89158

RN10#,110,13#,VZN10#,110,13#

NO.2

 1
55210-89151

RN10#,110,13#,VZN10#,110,13#

NO.1

 1
57104A - MEMBER SUB-ASSY, FRONT CROSS
57104-89109

RN10#,110,VZN10#,110

 1
Common parts
90119-06416
90119-06445
90179-06060
90467-10095
90950-01056
90950-01060
90950-01061
91651-F0610
91656-F0616

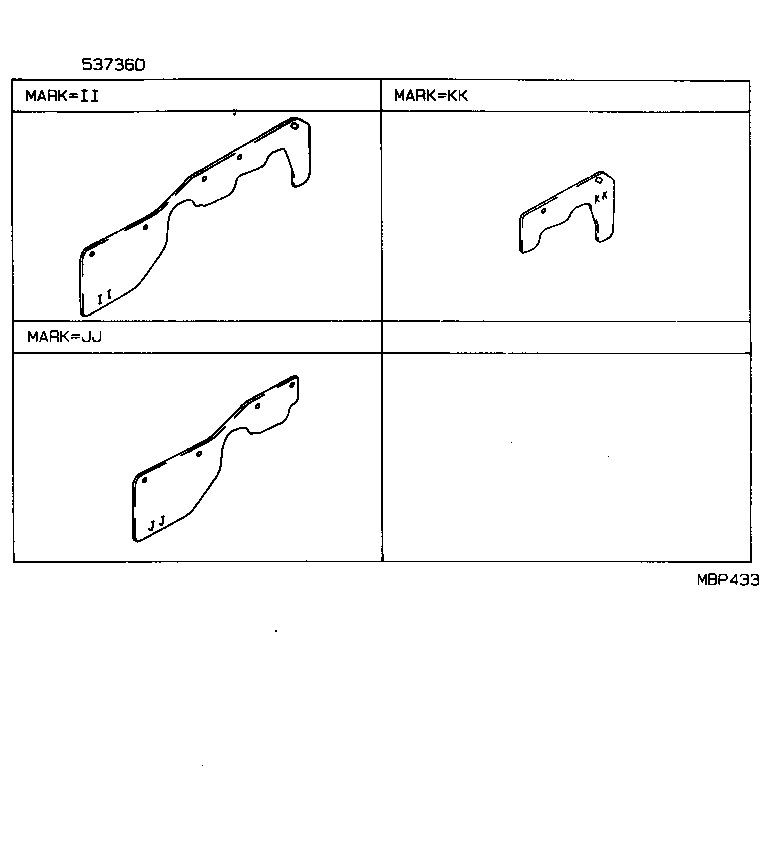

ILLUST NO. 2 OF 3(8808- )

Click highlighted areas on diagram

diagram 53736D
Part # Description Qty Price
53736D - SEAL, FENDER APRON
53736-35090

RN10#,110,13#,VZN10#,110,13#

MARK=KK,PLANT A51-54

 1
53736-89126

RN10#,110,13#,VZN10#,110,13#

MARK=II

 1
53736-89127

RN10#,110,13#,VZN10#,110,13#

MARK=JJ

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1
53736-89128

RN10#,110,13#,VZN10#,110,13#

MARK=KK

 1

ILLUST NO. 3 OF 3(8912- )

Click highlighted areas on diagram

diagram 55101 55127 55131 55141 55143 55143 55161A 55161A 55217A 55233 58131 58236C 58297H 8739889108 9046308154
Part # Description Qty Price
55217A - RETAINER, DASH PANEL SILENCER
55217-89103

RN10#,110,13#,VZN10#,110,13#

 3
55233 - SHEET, DASH PANEL INSULATOR
55233-89111

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
87398-89108
90463-08154
