RN106L-TRMDEA (1988)
Toyota 4-Runner Truck (Jpp)
(8808- )R

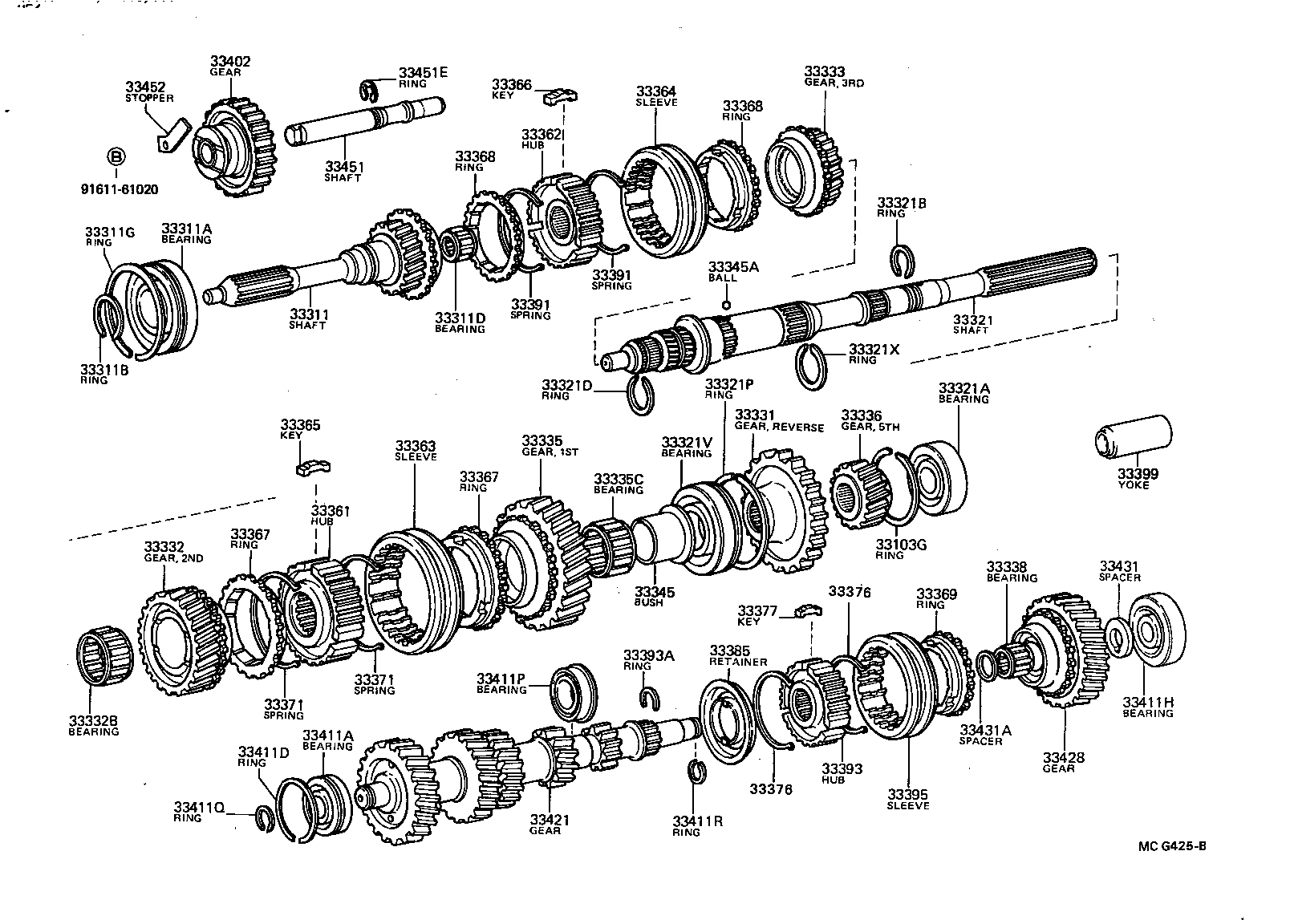

R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-22024 |
RN10#,110,13#..W |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
RN10#,110,13#..W |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33132 |
RN10#,110,13#..W T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33107 |
RN10#,110,13#..W T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
RN10#,110,13#..W T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
RN10#,110,13#..W T=2.25,MARK 5 |
1 | ||
| 90520-33170 |
RN10#,110,13#..W T=2.15,MARK 3 |
1 | ||
| 90520-33171 |
RN10#,110,13#..W T=2.20,MARK 4 |
1 | ||
| 90520-33169 |
RN10#,110,13#..W T=2.10,MARK 2 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
RN10#,110,13#..W |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
RN10#,110,13#..W |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35120 |
RN10#,110,13#..W |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
RN10#,110,13#..W |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25271 |
RN10#,110,13#..W T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25270 |
RN10#,110,13#..W T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25285 |
RN10#,110,13#..W T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25284 |
RN10#,110,13#..W T=2.31-2.36,MARK 8 |
1 | ||
| 90520-25272 |
RN10#,110,13#..W T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25004 |
RN10#,110,13#..W T=2.74,MARK 15 |
1 | ||
| 90520-25003 |
RN10#,110,13#..W T=2.68,MARK 14 |
1 | ||
| 90520-25273 |
RN10#,110,13#..W T=2.61-2.66,MARK 13 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28017 |
RN10#,110,13#..W T=2.04,MARK 14 |
1 | ||
| 90520-28015 |
RN10#,110,13#..W T=1.92,MARK 12 |
1 | ||
| 90520-28014 |
RN10#,110,13#..W T=1.86,MARK 11 |
1 | ||
| 90520-28012 |
RN10#,110,13#..5F T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28018 |
RN10#,110,13#..W T=2.10,MARK 15 |
1 | ||
| 90520-28245 |
RN10#,110,13#..5F T=1.80-1.85,MARK D |
1 | ||
| 90520-28016 |
RN10#,110,13#..W T=1.98,MARK 13 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35009 |
RN10#,110,13#..W |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22030 |
RN10#,110,13#..W |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-22030 |
RN10#,110,13#..W |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-22021 |
RN10#,110,13#..W |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22030 |
RN10#,110,13#..W |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-22021 |
RN10#,110,13#..W |
1 | ||
| 33336-22021 |
RN10#,110,130..W |
1 | ||
| 33359A - BALL, 5TH GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
RN10#,110,13#,VZN10#,110,13#..G,R |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
RN10#,110,13#..W |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
RN10#,110,13#..W |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
RN10#,110,13#..W |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-22021 |
RN10#,110,13#..W |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
RN10#,110,13#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN10#,110,13#..W |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN10#,110,13#..W |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN10#,110,13#..W |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN10#,110,13#..W |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-22011 |
RN10#,110,13#..W |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-22023 |
RN10#,110,13#..W |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25014 |
RN10#,110,13#..W |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN10#,110,13#..5F T=1.07,OD=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
RN10#,110,13#..W |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23115 |
RN10#,110,13#..5F T=2.05-2.10 |
1 | ||
| 90520-23090 |
RN10#,110,13#..5F T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN10#,110,13#..5F T=2.10-2.15 |
1 | ||
| 90520-23144 |
RN10#,110,13#..5F T=2.25-2.30 |
1 | ||
| 90520-23146 |
RN10#,110,13#..W T=2.35-2.40 |
1 | ||
| 90520-23145 |
RN10#,110,13#..5F T=2.30-2.35 |
1 | ||
| 90520-23143 |
RN10#,110,13#..5F T=2.15-2.20 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22050 |
RN10#,110,13#..W |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35080 |
RN10#,110,130..W |
1 | ||
| 33046-22013 |
RN10#,110,13#..W |
1 | ||
| 33046-22013 |
RN10#,110,130..W |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
RN10#,110,13#..W |
1 | ||
(8808-9110)W

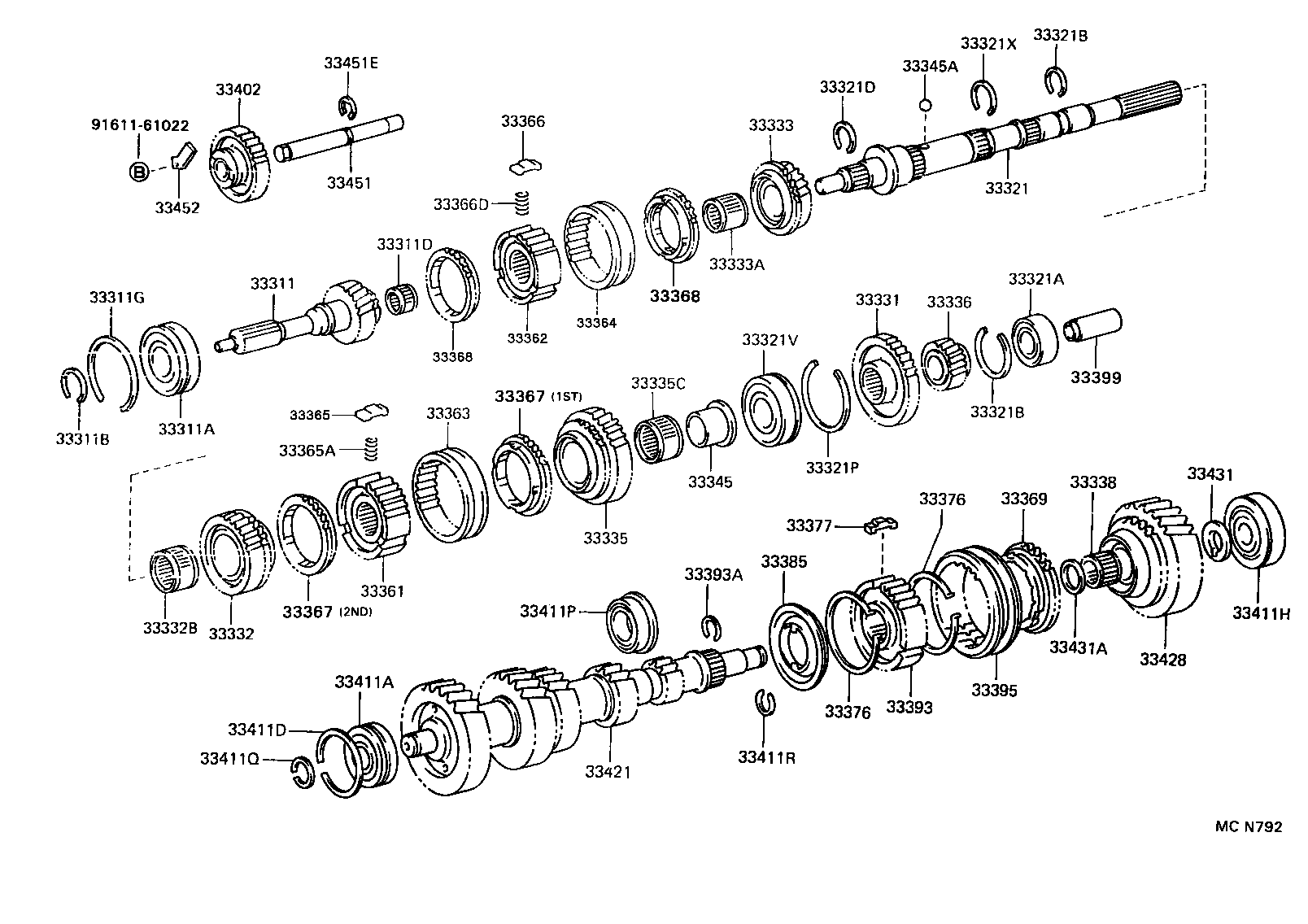

W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103G - RING, HOLE SNAP(FOR REAR BEARING SET) | ||||
| 90521-66002 |
RN10#,110,13#..W |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33301-22024 |
RN10#,110,13#..W |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
RN10#,110,13#..W |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33132 |
RN10#,110,13#..W T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33107 |
RN10#,110,13#..W T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
RN10#,110,13#..W T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
RN10#,110,13#..W T=2.25,MARK 5 |
1 | ||
| 90520-33170 |
RN10#,110,13#..W T=2.15,MARK 3 |
1 | ||
| 90520-33171 |
RN10#,110,13#..W T=2.20,MARK 4 |
1 | ||
| 90520-33169 |
RN10#,110,13#..W T=2.10,MARK 2 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
RN10#,110,13#..W |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
RN10#,110,13#..W |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35120 |
RN10#,110,13#..W |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
RN10#,110,13#..W |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25271 |
RN10#,110,13#..W T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25270 |
RN10#,110,13#..W T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25285 |
RN10#,110,13#..W T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25284 |
RN10#,110,13#..W T=2.31-2.36,MARK 8 |
1 | ||
| 90520-25272 |
RN10#,110,13#..W T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25004 |
RN10#,110,13#..W T=2.74,MARK 15 |
1 | ||
| 90520-25003 |
RN10#,110,13#..W T=2.68,MARK 14 |
1 | ||
| 90520-25273 |
RN10#,110,13#..W T=2.61-2.66,MARK 13 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28017 |
RN10#,110,13#..W T=2.04,MARK 14 |
1 | ||
| 90520-28015 |
RN10#,110,13#..W T=1.92,MARK 12 |
1 | ||
| 90520-28014 |
RN10#,110,13#..W T=1.86,MARK 11 |
1 | ||
| 90520-28012 |
RN10#,110,13#..5F T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28018 |
RN10#,110,13#..W T=2.10,MARK 15 |
1 | ||
| 90520-28245 |
RN10#,110,13#..5F T=1.80-1.85,MARK D |
1 | ||
| 90520-28016 |
RN10#,110,13#..W T=1.98,MARK 13 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
RN10#,110,13#..W T=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35009 |
RN10#,110,13#..W |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33001 |
RN10#,110,13#..W T=2.61,MARK 17 |
1 | ||
| 90520-33002 |
RN10#,110,13#..W T=2.67,MARK 18 |
1 | ||
| 90520-33107 |
RN10#,110,13#..W T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33003 |
RN10#,110,13#..W T=2.73,MARK 19 |
1 | ||
| 90520-33007 |
RN10#,110,13#..W T=2.97,MARK 23 |
1 | ||
| 90520-33005 |
RN10#,110,13#..W T=2.85,MARK 21 |
1 | ||
| 90520-33004 |
RN10#,110,13#..W T=2.79,MARK 20 |
1 | ||
| 90520-33108 |
RN10#,110,13#..W T=2.40,MARK 13 |
1 | ||
| 90520-33006 |
RN10#,110,13#..W T=2.91,MARK 22 |
1 | ||
| 90520-33109 |
RN10#,110,13#..W T=2.50,MARK 15 |
1 | ||
| 90520-33172 |
RN10#,110,13#..W T=2.25,MARK 5 |
1 | ||
| 90520-33133 |
RN10#,110,13#..W T=2.45,MARK 14 |
1 | ||
| 90520-33134 |
RN10#,110,13#..W T=2.55,MARK 16 |
1 | ||
| 90520-33132 |
RN10#,110,13#..W T=2.35-2.40,MARK 12 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22030 |
RN10#,110,13#..W |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-22030 |
RN10#,110,13#..W |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-22021 |
RN10#,110,13#..W |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22030 |
RN10#,110,13#..W |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-22021 |
RN10#,110,13#..W |
1 | ||
| 33336-22021 |
RN10#,110,130..W |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27002 |
RN10#,110,13#..W |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
RN10#,110,13#..W |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
RN10#,110,13#..W |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
RN10#,110,13#..W |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
RN10#,110,13#..W |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-22021 |
RN10#,110,13#..W |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-22021 |
RN10#,110,13#..W |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
RN10#,110,13#..5F |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN10#,110,13#..W |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22033 |
RN10#,110,13#..W |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RN10#,110,13#..W |
2 | ||
| 33392-22010 |
RN10#,110,130..W |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RN10#,110,13#..W |
2 | ||
| 33392-22010 |
RN10#,110,130..W |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-14010 |
RN10#,110,13#..W |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-22010 |
RN10#,110,13#..W |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN10#,110,13#..W |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-22030 |
RN10#,110,13#..W |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-22020 |
RN10#,110,13#..W |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24002 |
RN10#,110,13#..W T=2.06-2.11 |
1 | ||
| 90520-24004 |
RN10#,110,13#..W T=2.18-2.23 |
1 | ||
| 90520-24005 |
RN10#,110,13#..W T=2.24-2.29 |
1 | ||
| 90520-24003 |
RN10#,110,13#..W T=2.12-2.17 |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-22011 |
RN10#,110,13#..W |
1 | ||
| 33399 - YOKE, TRANSMISSION SLEEVE (MTM) | ||||
| 33399-35030 |
RN10#,110,13#..W |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-22023 |
RN10#,110,13#..W |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25014 |
RN10#,110,13#..W |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN10#,110,13#..5F T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-22003 |
RN10#,110,13#..W |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
RN10#,110,13#..W |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23115 |
RN10#,110,13#..5F T=2.05-2.10 |
1 | ||
| 90520-23090 |
RN10#,110,13#..5F T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN10#,110,13#..5F T=2.10-2.15 |
1 | ||
| 90520-23144 |
RN10#,110,13#..5F T=2.25-2.30 |
1 | ||
| 90520-23146 |
RN10#,110,13#..W T=2.35-2.40 |
1 | ||
| 90520-23145 |
RN10#,110,13#..5F T=2.30-2.35 |
1 | ||
| 90520-23143 |
RN10#,110,13#..5F T=2.15-2.20 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-20009 |
RN10#,110,13#..W T=1.96-2.01,MARK 2 |
1 | ||
| 90520-20010 |
RN10#,110,13#..W T=2.02-2.07,MARK 3 |
1 | ||
| 90520-20012 |
RN10#,110,13#..W T=2.14-2.19,MARK 5 |
1 | ||
| 90520-20008 |
RN10#,110,13#..W T=1.90-1.95,MARK 1 |
1 | ||
| 90520-20011 |
RN10#,110,13#..W T=2.08-2.13,MARK 4 |
1 | ||
| 90520-20013 |
RN10#,110,13#..W T=2.20-2.25,MARK 6 |
1 | ||
| 90520-20014 |
RN10#,110,13#..W T=2.26-2.31,MARK 7 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22050 |
RN10#,110,13#..W |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35080 |
RN10#,110,130..W |
1 | ||
| 33046-22013 |
RN10#,110,13#..W |
1 | ||
| 33046-22013 |
RN10#,110,130..W |
1 | ||
| 33431 - SPACER, COUNTER GEAR, NO.1 | ||||
| 33431-22030 |
RN10#,110,13#..W |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-22020 |
RN10#,110,13#..W |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
RN10#,110,13#..W |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
RN10#,110,13#..W |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-22020 |
RN10#,110,13#..W |
1 | ||
| 33452-30020 |
RN10#,110,130..W |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
(9110-9208)W
W56
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-22024 |
RN10#,110,13#..W |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
RN10#,110,13#..W |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33132 |
RN10#,110,13#..W T=2.35-2.40,MARK 12 |
1 | ||
| 90520-33107 |
RN10#,110,13#..W T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33168 |
RN10#,110,13#..W T=2.05,MARK 1 |
1 | ||
| 90520-33172 |
RN10#,110,13#..W T=2.25,MARK 5 |
1 | ||
| 90520-33170 |
RN10#,110,13#..W T=2.15,MARK 3 |
1 | ||
| 90520-33171 |
RN10#,110,13#..W T=2.20,MARK 4 |
1 | ||
| 90520-33169 |
RN10#,110,13#..W T=2.10,MARK 2 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
RN10#,110,13#..W |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
RN10#,110,13#..W |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-35120 |
RN10#,110,13#..W |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 33350-22010 |
RN10#,110,13#..W |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25271 |
RN10#,110,13#..W T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25270 |
RN10#,110,13#..W T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25285 |
RN10#,110,13#..W T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25284 |
RN10#,110,13#..W T=2.31-2.36,MARK 8 |
1 | ||
| 90520-25272 |
RN10#,110,13#..W T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25004 |
RN10#,110,13#..W T=2.74,MARK 15 |
1 | ||
| 90520-25003 |
RN10#,110,13#..W T=2.68,MARK 14 |
1 | ||
| 90520-25273 |
RN10#,110,13#..W T=2.61-2.66,MARK 13 |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-25271 |
RN10#,110,13#..W T=2.49-2.54,MARK 11 |
1 | ||
| 90520-25270 |
RN10#,110,13#..W T=2.43-2.48,MARK 10 |
1 | ||
| 90520-25285 |
RN10#,110,13#..W T=2.37-2.42,MARK 9 |
1 | ||
| 90520-25284 |
RN10#,110,13#..W T=2.31-2.36,MARK 8 |
1 | ||
| 90520-25272 |
RN10#,110,13#..W T=2.55-2.60,MARK 12 |
1 | ||
| 90520-25004 |
RN10#,110,13#..W T=2.74,MARK 15 |
1 | ||
| 90520-25003 |
RN10#,110,13#..W T=2.68,MARK 14 |
1 | ||
| 90520-25273 |
RN10#,110,13#..W T=2.61-2.66,MARK 13 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28017 |
RN10#,110,13#..W T=2.04,MARK 14 |
1 | ||
| 90520-28015 |
RN10#,110,13#..W T=1.92,MARK 12 |
1 | ||
| 90520-28014 |
RN10#,110,13#..W T=1.86,MARK 11 |
1 | ||
| 90520-28012 |
RN10#,110,13#..5F T=1.75-1.80,MARK C-1 |
1 | ||
| 90520-28018 |
RN10#,110,13#..W T=2.10,MARK 15 |
1 | ||
| 90520-28245 |
RN10#,110,13#..5F T=1.80-1.85,MARK D |
1 | ||
| 90520-28016 |
RN10#,110,13#..W T=1.98,MARK 13 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
RN10#,110,13#..W T=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35009 |
RN10#,110,13#..W |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33001 |
RN10#,110,13#..W T=2.61,MARK 17 |
1 | ||
| 90520-33002 |
RN10#,110,13#..W T=2.67,MARK 18 |
1 | ||
| 90520-33107 |
RN10#,110,13#..W T=2.30-2.35,MARK 11 |
1 | ||
| 90520-33003 |
RN10#,110,13#..W T=2.73,MARK 19 |
1 | ||
| 90520-33007 |
RN10#,110,13#..W T=2.97,MARK 23 |
1 | ||
| 90520-33005 |
RN10#,110,13#..W T=2.85,MARK 21 |
1 | ||
| 90520-33004 |
RN10#,110,13#..W T=2.79,MARK 20 |
1 | ||
| 90520-33108 |
RN10#,110,13#..W T=2.40,MARK 13 |
1 | ||
| 90520-33006 |
RN10#,110,13#..W T=2.91,MARK 22 |
1 | ||
| 90520-33109 |
RN10#,110,13#..W T=2.50,MARK 15 |
1 | ||
| 90520-33172 |
RN10#,110,13#..W T=2.25,MARK 5 |
1 | ||
| 90520-33133 |
RN10#,110,13#..W T=2.45,MARK 14 |
1 | ||
| 90520-33134 |
RN10#,110,13#..W T=2.55,MARK 16 |
1 | ||
| 90520-33132 |
RN10#,110,13#..W T=2.35-2.40,MARK 12 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22030 |
RN10#,110,13#..W |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-22030 |
RN10#,110,13#..W |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-22021 |
RN10#,110,13#..W |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22030 |
RN10#,110,13#..W |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43004 |
RN10#,110,13#..W |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-22021 |
RN10#,110,13#..W |
1 | ||
| 33336-22021 |
RN10#,110,130..W |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 90364-27002 |
RN10#,110,13#..W |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
RN10#,110,13#..W |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
RN10#,110,13#..W |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
RN10#,110,13#..W |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
RN10#,110,13#..W |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-22021 |
RN10#,110,13#..W |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-22021 |
RN10#,110,13#..W |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
RN10#,110,13#..W |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22021 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20013 |
RN10#,110,13#..W |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33367-14010 |
RN10#,110,13#..5F |
1 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RN10#,110,13#..W |
2 | ||
| 33392-22010 |
RN10#,110,130..W |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33371-14010 |
RN10#,110,13#..W |
2 | ||
| 33392-22010 |
RN10#,110,130..W |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33366-14010 |
RN10#,110,13#..W |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-22010 |
RN10#,110,13#..W |
1 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-22020 |
RN10#,110,13#..W |
1 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-24002 |
RN10#,110,13#..W T=2.06-2.11 |
1 | ||
| 90520-24004 |
RN10#,110,13#..W T=2.18-2.23 |
1 | ||
| 90520-24005 |
RN10#,110,13#..W T=2.24-2.29 |
1 | ||
| 90520-24003 |
RN10#,110,13#..W T=2.12-2.17 |
1 | ||

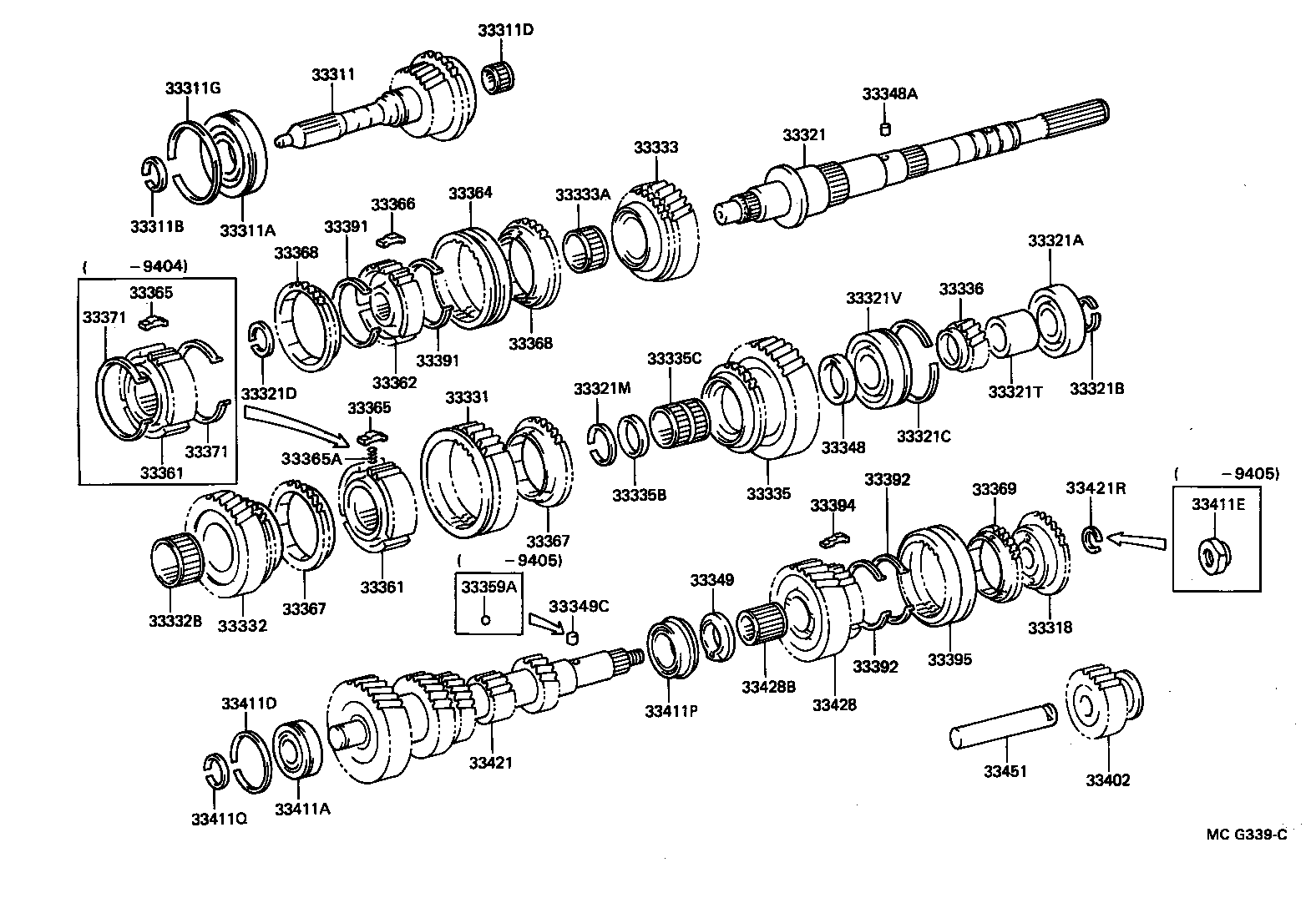

| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-22011 |
RN10#,110,13#..W |
1 | ||
| 33399 - YOKE, TRANSMISSION SLEEVE (MTM) | ||||
| 33399-35030 |
RN10#,110,13#..W |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-22023 |
RN10#,110,13#..W |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25014 |
RN10#,110,13#..W |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
RN10#,110,13#..5F T=1.07,OD=55.6 |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90363-22003 |
RN10#,110,13#..W |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 33430-22010 |
RN10#,110,13#..W |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23115 |
RN10#,110,13#..5F T=2.05-2.10 |
1 | ||
| 90520-23090 |
RN10#,110,13#..5F T=2.20-2.25 |
1 | ||
| 90520-23089 |
RN10#,110,13#..5F T=2.10-2.15 |
1 | ||
| 90520-23144 |
RN10#,110,13#..5F T=2.25-2.30 |
1 | ||
| 90520-23146 |
RN10#,110,13#..W T=2.35-2.40 |
1 | ||
| 90520-23145 |
RN10#,110,13#..5F T=2.30-2.35 |
1 | ||
| 90520-23143 |
RN10#,110,13#..5F T=2.15-2.20 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90520-20009 |
RN10#,110,13#..W T=1.96-2.01,MARK 2 |
1 | ||
| 90520-20010 |
RN10#,110,13#..W T=2.02-2.07,MARK 3 |
1 | ||
| 90520-20012 |
RN10#,110,13#..W T=2.14-2.19,MARK 5 |
1 | ||
| 90520-20008 |
RN10#,110,13#..W T=1.90-1.95,MARK 1 |
1 | ||
| 90520-20011 |
RN10#,110,13#..W T=2.08-2.13,MARK 4 |
1 | ||
| 90520-20013 |
RN10#,110,13#..W T=2.20-2.25,MARK 6 |
1 | ||
| 90520-20014 |
RN10#,110,13#..W T=2.26-2.31,MARK 7 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22050 |
RN10#,110,13#..W |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-35080 |
RN10#,110,130..W |
1 | ||
| 33046-22013 |
RN10#,110,13#..W |
1 | ||
| 33046-22013 |
RN10#,110,130..W |
1 | ||
| 33431 - SPACER, COUNTER GEAR, NO.1 | ||||
| 33431-22030 |
RN10#,110,13#..W |
1 | ||
| 33431A - SPACER, COUNTER GEAR, NO.2 | ||||
| 33431-22020 |
RN10#,110,13#..W |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
RN10#,110,13#..W |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
RN10#,110,13#..W |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-22020 |
RN10#,110,13#..W |
1 | ||
| 33452-30020 |
RN10#,110,130..W |
1 | ||
| Common parts | ||||
| 91611-61022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
