RN106L-TRMDEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1992
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9208)22RE

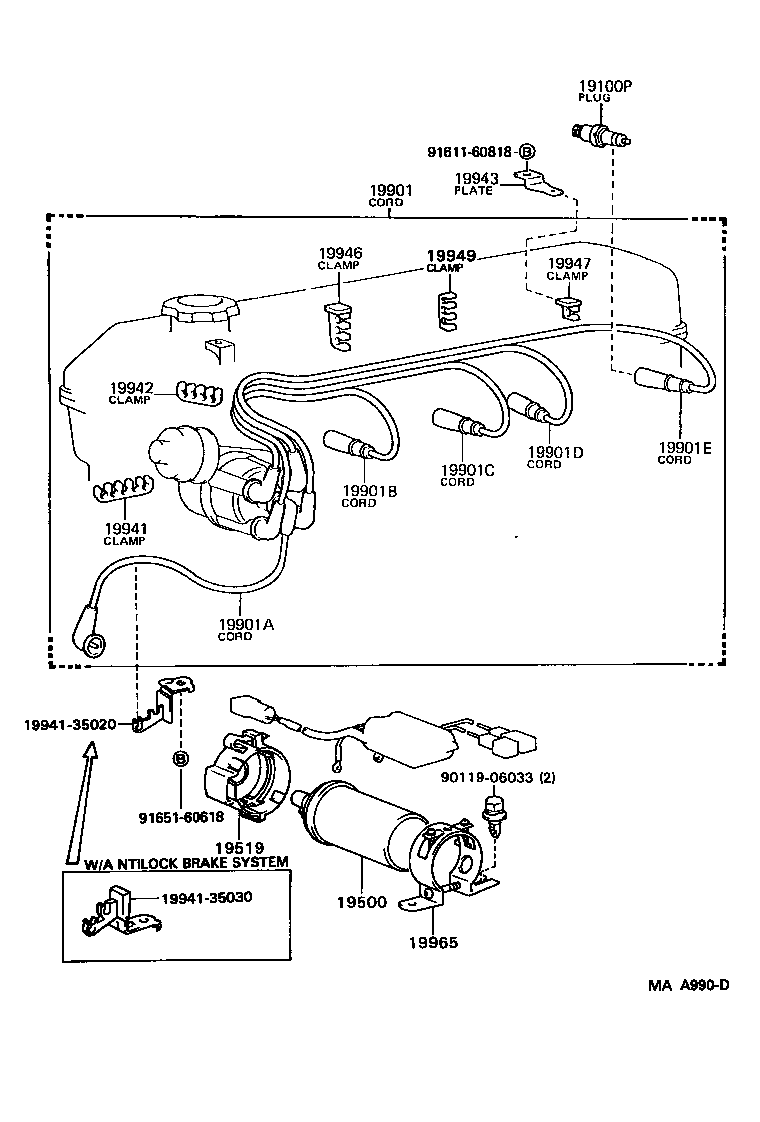

Click highlighted areas on diagram

diagram 19100P 19500 19519 19901 19901A 19901B 19901C 19901D 19901E 19941 1994135020 1994135030 19942 19943 19946 19947 19949 19965 9011906033 9161160818 9165160618
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

22RE..RN10#,110,13#

W16EXR-U

 4
19500 - COIL ASSY, IGNITION
90919-02190

22RE..RN10#,110,13#

 1
19519 - COVER, IGNITION COIL
19519-28020

22RE..RN10#,110,130..USA

COLD SPEC

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21431

22RE..RN10#,110,13#

 1
19901A - CORD, COIL RESISTIVE
90919-13293

22RE..RN10#,110,13#

 1
90919-13404

22RE..RN10#,110,13#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12457

22RE..RN10#,110,13#

 1
90919-15243

22RE..RN10#,110,13#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15244

22RE..RN10#,110,13#

 1
90919-12458

22RE..RN10#,110,13#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12459

22RE..RN10#,110,13#

 1
90919-15245

22RE..RN10#,110,13#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15246

22RE..RN10#,110,13#

 1
90919-12460

22RE..RN10#,110,13#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

22RE..RN10#,110,13#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

22RE..RN10#,110,13#

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-35010

22RE..RN10#,110,13#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00303

22RE..RN10#,110,13#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

22RE..RN10#,110,13#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00144

22RE..RN10#,110,13#

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03111

22RE..RN10#,110,13#

 1
Common parts
19941-35020
19941-35030
90119-06033
91611-60818
91651-60618
