RN106L-TRLDEA (1990)

Toyota 4-Runner Truck (Jpp)

Production Aug 1990 - Aug 1992
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

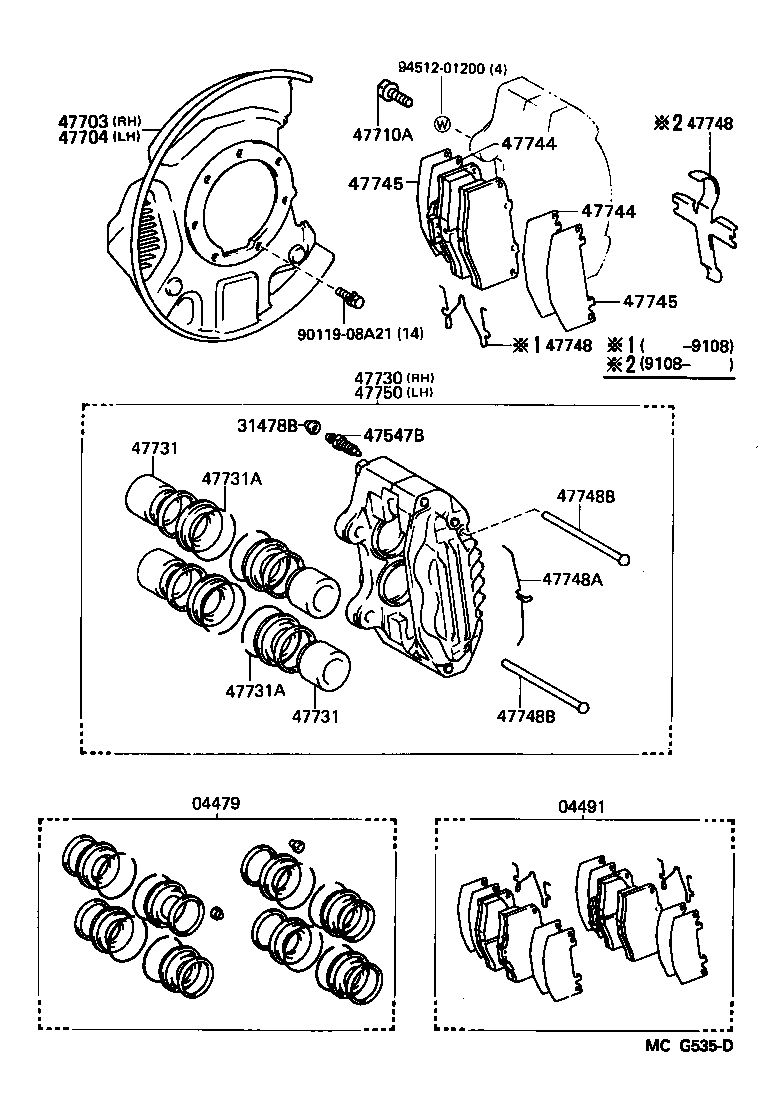

ILLUST NO. 1 OF 2(8808-9511)

Click highlighted areas on diagram

diagram 04479 04491 31478B 47547B 47703 47704 47710A 47730 47731 47731 47731A 47731A 47744 47744 47745 47745 47748 47748 47748A 47748B 47748B 47750 9011908A21 9451201200
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-35010

RN10#,110,13#,VZN10#,110,13#

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-35190

RN10#,110,13#,VZN10#,110,13#

 1
04491-35190

RN10#,110,VZN10#,110

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

RN10#,110,13#,VZN10#,110,13#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20030

RN10#,110,13#,VZN10#,110,13#

 2
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47703-35060

RN10#,110,13#,VZN10#,110,13#

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47704-35060

RN10#,110,13#,VZN10#,110,13#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12144

RN10#,110,13#,VZN10#,110,13#

*12-1.25PX38-23

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35080

RN10#,110,13#,VZN10#,110,13#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-35010

RN10#,110,13#,VZN10#,110,13#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-35010

RN10#,110,13#,VZN10#,110,13#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

RN10#,110,13#,VZN10#,110,13#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

RN10#,110,13#,VZN10#,110,13#

 8
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-35020

RN10#,110,13#,VZN10#,110,13#

 4
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-35020

RN10#,110,13#,VZN10#,110,13#

 4
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-35020

RN10#,110,13#,VZN10#,110,13#

 4
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47745-35020

RN10#,110,13#,VZN10#,110,13#

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

RN10#,110,13#,VZN10#,110,13#

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

RN10#,110,13#,VZN10#,110,13#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12015

RN10#,110,13#,VZN10#,110,13#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

RN10#,110,13#,VZN10#,110,13#

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

RN10#,110,13#,VZN10#,110,13#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35080

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90119-08A21
94512-01200

ILLUST NO. 2 OF 2(8808-9511)

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-35040

RN10#,110,13#,VZN10#,110,13#

MARK AISIN PC513

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-35040

RN10#,110,13#,VZN10#,110,13#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

RN10#,110,13#,VZN10#,110,13#

 1
