RN101L-TRMSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

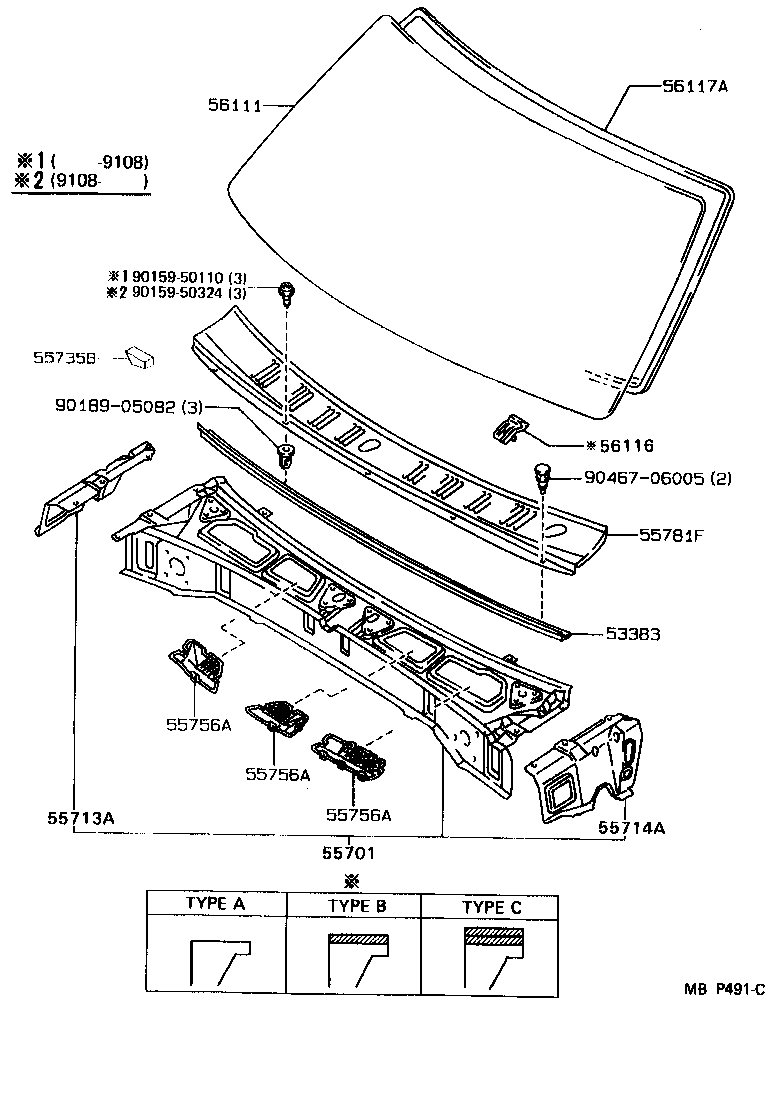

Click highlighted areas on diagram

diagram 53383 55701 55713A 55714A 55735B 55756A 55756A 55756A 55781F 56111 56116 56117A 9015950110 9015950324 9018905082 9046706005
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-89106

RN10#,110,13#,VZN10#,110,13#

 1
55701 - PANEL SUB-ASSY, COWL
55700-89146

RN10#,110

 1
55700-89145

RN10#,110,13#

PLANT NO. A51,A52

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89105

RN10#,110,13#,VZN10#,110,13#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89106

RN10#,110,13#,VZN10#,110,13#

 1
55735B - SEAL, FRONT AIR SHUTTER
55735-89101

RN10#,110,13#,VZN10#,110,13#

 2
55756A - SCREEN, HEATER AIR DUCT
55756-89108

RN10#,110,130,VZN10#,110,130..USA

LH

 1
55756-89109

RN10#,110,130,VZN10#,110,130..USA

CENTER

 1
55756-89111

RN10#,110,130,VZN10#,110,130..USA

RH

 1
55756A - SCREEN, HEATER AIR DUCT
55756-89108

RN10#,110,130,VZN10#,110,130..USA

LH

 1
55756-89109

RN10#,110,130,VZN10#,110,130..USA

CENTER

 1
55756-89111

RN10#,110,130,VZN10#,110,130..USA

RH

 1
55756A - SCREEN, HEATER AIR DUCT
55756-89108

RN10#,110,130,VZN10#,110,130..USA

LH

 1
55756-89109

RN10#,110,130,VZN10#,110,130..USA

CENTER

 1
55756-89111

RN10#,110,130,VZN10#,110,130..USA

RH

 1
55781F - LOUVER, COWL TOP VENTILATOR
55781-89103

RN10#,110,13#,VZN10#,110,13#

 1
56111 - GLASS, WINDSHIELD
56111-89147

VZN100,110..DLX;RN10#,110,13#,VZN105

*TL,T=5.3,BLUE

 1
56111-89150

VZN100,110..DLX;RN10#,110,13#,VZN105

*LAM,T=5.3

 1
56116 - SPACER, WINDSHIELD GLASS
56116-89106

RN10#,110,13#,VZN10#,110,13#

TYPE C

 2
56116-89105

RN10#,110,13#,VZN10#,110,13#

TYPE B

 2
56116-89104

RN10#,110,13#,VZN10#,110,13#

TYPE A

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-89104

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90159-50110
90159-50324
90189-05082
90467-06005
