RN101L-TRMDEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

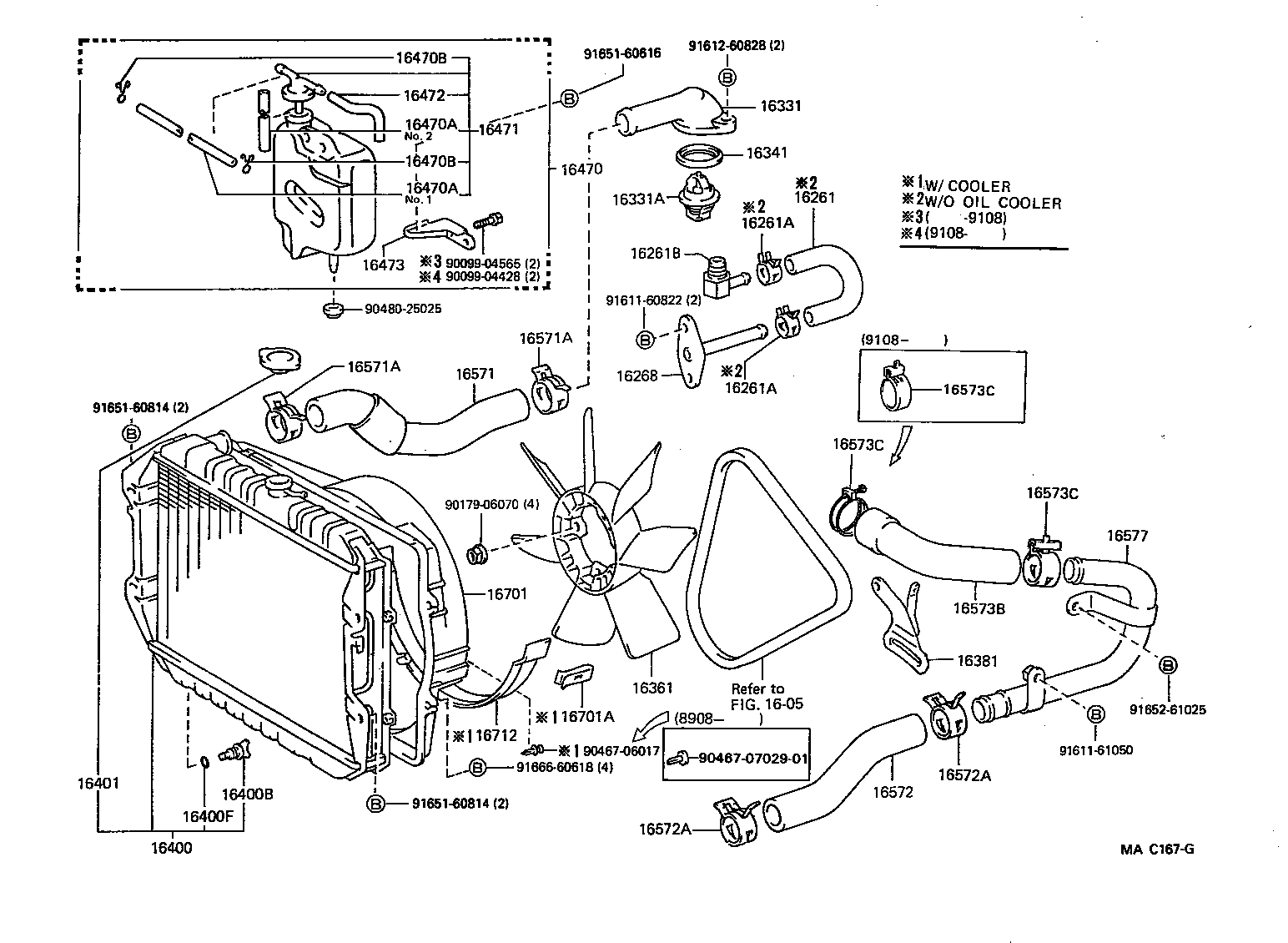

Click highlighted areas on diagram

diagram 1605 16261 16261A 16261A 16261B 16268 16331 16331A 16341 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16473 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16573C 16577 16701 16701A 16712 9009904428 9009904565 9017906070 9046706017 904670702901 9048025025 9161160822 9161161050 9161260828 9165160616 9165160814 9165160814 9165261025 9166660618
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-35030

22RE..RN10#,110;22RE..RN13#..5F

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

22RE..RN10#,110;22RE..RN13#..5F

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-20005

22RE..RN10#,110;22RE..RN13#..5F

 2
16261B - UNION(FOR WATER BY-PASS HOSE)
90407-53007

22RE..RN10#,110,13#

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-35030

22RE..RN10#,110,13#

 1
16331 - OUTLET, WATER
16331-35040

22RE..RN10#,110,13#

 1
16331A - THERMOSTAT
90916-03078

22RE..RN10#,110,13#

*WAX 88-100

 1
16341 - GASKET, WATER OUTLET
16341-35010

22RE..RN10#,110,13#

 1
16361 - FAN
16361-38010

22RE..RN10#,110,13#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-35021

22RE..RN10#,110,13#

 1
16400 - RADIATOR ASSY
16400-35350

22RE..RN10#,110..5F

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

22RE..RN10#,110,13#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

22RE..RN10#,110,13#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-63010

22RE..RN10#,110,13#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-35070

22RE..RN10#,110,13#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

22RE..RN10#,110,13#

L=600,NO.1,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

22RE..RN10#,110,13#

L=600,NO.1,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

22RE..RN10#,110,13#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

22RE..RN10#,110,13#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-35010

22RE..RN10#,110,13#

 1
16472 - HOSE, BREATHER
85338-71030

22RE..RN10#,110,13#

 1
16571 - HOSE, RADIATOR, INLET
16571-35080

22RE..RN10#,110..5F

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

22RE..RN10#,110,13#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37003

22RE..RN10#,110,13#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-35030

22RE..RN10#,110..5F

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-38001

22RE..RN10#,110,13#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-38001

22RE..RN10#,110,13#

 2
16573B - HOSE, RADIATOR, NO.3
16573-38020

22RE..RN10#,110,13#

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96111-10490

22RE..RN10#,110,13#

CHAIN COVER SIDE

 1
90467-38001

22RE..RN10#,110,13#

PIPE SIDE

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96111-10490

22RE..RN10#,110,13#

CHAIN COVER SIDE

 1
90467-38001

22RE..RN10#,110,13#

PIPE SIDE

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96111-10490

22RE..RN10#,110,13#

CHAIN COVER SIDE

 1
90467-38001

22RE..RN10#,110,13#

PIPE SIDE

 1
16577 - PIPE, RADIATOR, NO.7
16577-35030

22RE..RN10#,110,13#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-35020

22RE..RN10#,110..5F

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

22RE..RN10#,110

 2
16712 - SHROUD, FAN, NO.2
16712-54050

22RE..RN10#,110

 1
Common parts
90099-04428
90099-04565
90179-06070
90467-06017
90467-0702901
90480-25025
91611-60822
91611-61050
91612-60828
91651-60616
91651-60814
91652-61025
91666-60618
Linked diagrams
1605
