RN101L-TRMDEA (1988)
Toyota 4-Runner Truck (Jpp)

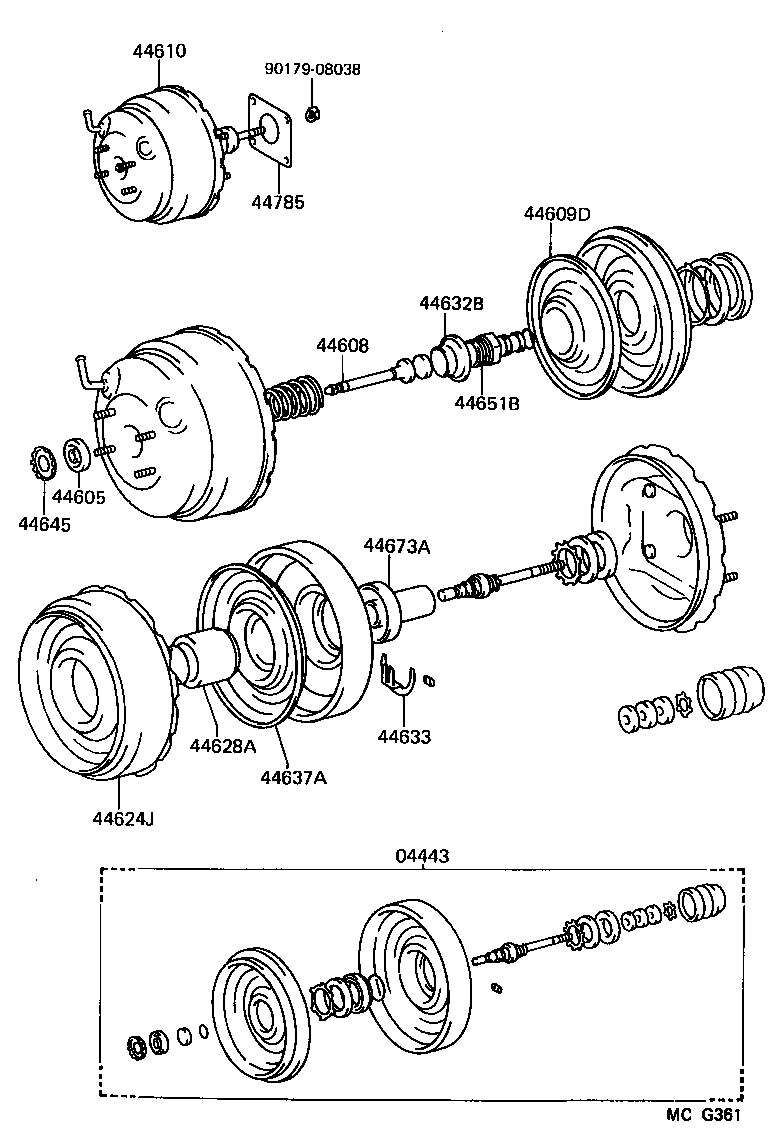

ILLUST NO. 1 OF 2(8808-9511)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-35860 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 04443-35860 |
RN10#,110,VZN10#,110 |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-30350 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44605-30350 |
RN10#,110,VZN10#,110 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-17090 |
RN10#,110,VZN10#,110 |
1 | ||
| 44608-17090 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-26380 |
RN10#,110,VZN10#,110 |
1 | ||
| 44609-26380 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-3D470 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44610-3D330 |
RN10#,110,VZN10#,110 |
1 | ||
| 44610-3D580 |
RN10#,110,VZN100,110 |
1 | ||
| 44610-3D580 |
RN10#,110,13#,VZN100,110,13# |
1 | ||
| 44610-3D330 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44610-3D330 |
RN10#,110,VZN10#,110 |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-28300 |
RN10#,110,VZN10#,110 |
1 | ||
| 44624-28300 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44628-20810 |
RN10#,110,VZN10#,110 |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-30730 |
RN10#,110,VZN10#,110 |
1 | ||
| 44632-30730 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20811 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44633-20811 |
RN10#,110,VZN10#,110 |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-28300 |
RN10#,110,VZN10#,110 |
1 | ||
| 44637-28300 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
RN10#,110,VZN10#,110 |
1 | ||
| 44645-10080 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
RN10#,110,VZN10#,110 |
1 | ||
| 44651-20810 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44673-20810 |
RN10#,110,VZN10#,110 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

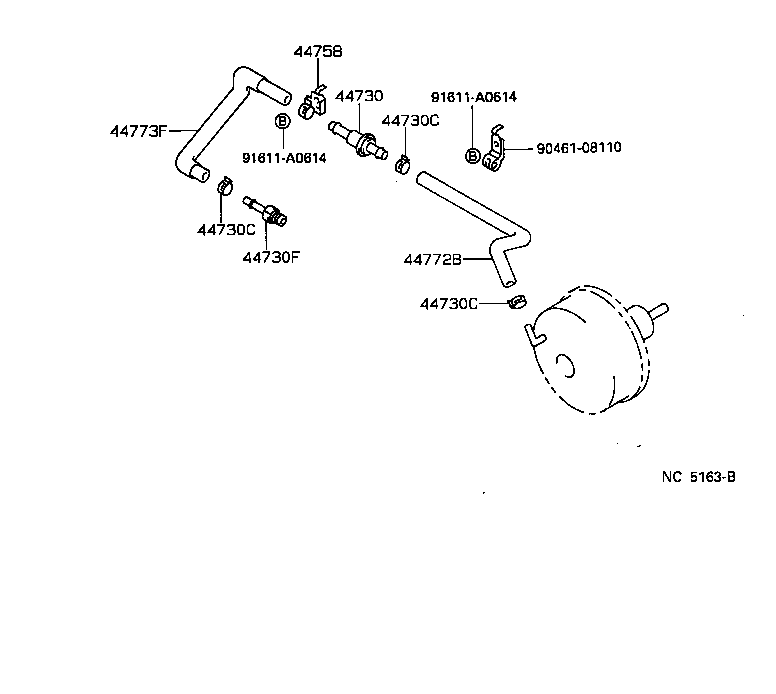

ILLUST NO. 2 OF 2(8808-9511)RN10#,110,13#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
RN10#,110,13# |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN10#,110,13# |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN10#,110,13# |
3 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
RN10#,110,13# |
3 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RN10#,110,13#,VZN10#,110,13# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN10#,110,13# |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-35230 |
RN10#,110,13# |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35400 |
RN10#,110 |
1 | ||
| Common parts | ||||
| 90461-08110 | ||||
| 91611-A0614 | ||||
