RN101L-TRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

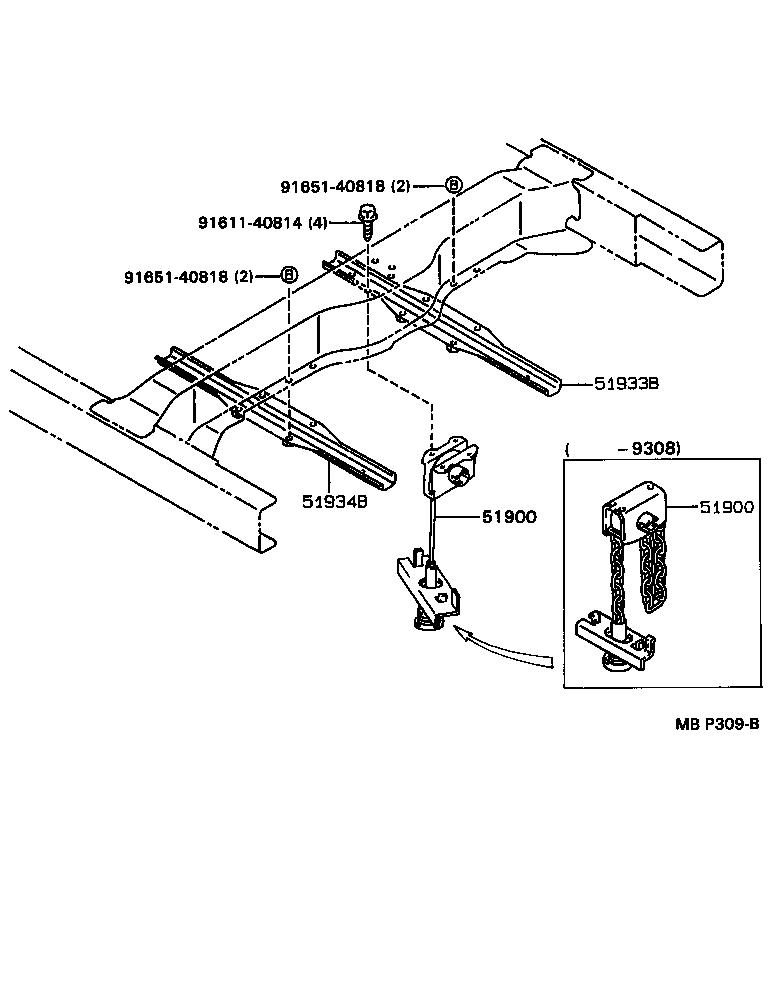

Click highlighted areas on diagram

diagram 51900 51900 51933B 51934B 9161140814 9165140818 9165140818
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

RN10#,110,13#,VZN10#,110,13#

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35121

RN10#,110,13#,VZN10#,110,13#

 1
51933B - STOPPER, SPARE WHEEL CARRIER, RH
51933-35040

RN10#,110,VZN10#,110

 1
51934B - STOPPER, SPARE WHEEL CARRIER, LH
51933-35040

RN10#,110,VZN10#,110

 1
Common parts
91611-40814
91651-40818
