RN101L-TRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-8908) ; (8908- )RN10#,110,VZN10#,110

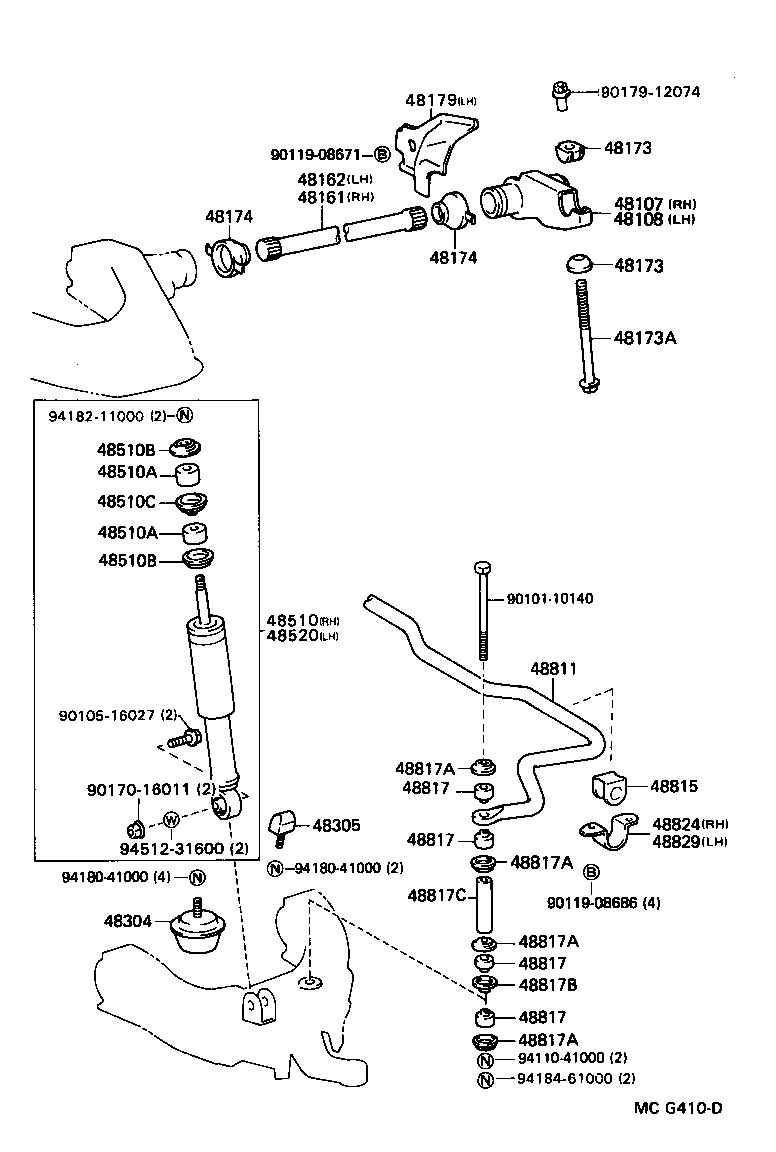

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48173 48173 48173A 48174 48174 48179 48304 48305 48510 48510A 48510A 48510B 48510B 48510C 48520 48811 48815 48817 48817 48817 48817 48817A 48817A 48817A 48817A 48817B 48817C 48824 48829 9010110140 9010516027 9011908671 9011908686 9017016011 9017912074 9411041000 9418041000 9418041000 9418211000 9418461000 9451231600
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-35050

RN10#,110,13#,VZN10#,110,13#

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-35050

RN10#,110,13#,VZN10#,110,13#

 1
48161 - SPRING, TORSION BAR, RH
48161-35110

RN10#,110

 1
48162 - SPRING, TORSION BAR, LH
48162-35110

RN10#,110

 1
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35010

RN10#,110,13#,VZN10#,110,13#

LWR

 2
48173-35020

RN10#,110,13#,VZN10#,110,13#

UPR

 2
48173 - SEAT, ANCHOR ARM ADJUSTER
48173-35010

RN10#,110,13#,VZN10#,110,13#

LWR

 2
48173-35020

RN10#,110,13#,VZN10#,110,13#

UPR

 2
48173A - BOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
90101-12159

RN10#,110,13#,VZN10#,110,13#

 2
48174 - COVER, TORSION BAR DUST
48174-26010

RN10#,110,13#,VZN10#,110,13#

 4
48174 - COVER, TORSION BAR DUST
48174-26010

RN10#,110,13#,VZN10#,110,13#

 4
48179 - PROTECTOR, TORSION BAR DUST COVER, LH
48179-35030

RN10#,110,13#,VZN10#,110,13#

 1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48304-35120

RN10#,110,13#,VZN10#,110,13#

 4
48305 - BUMPER SUB-ASSY, FRONT SPRING, NO.2
48305-35020

RN10#,110,13#,VZN10#,110,13#

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-39795

RN10#,110

 1
48511-39625

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48511-39626

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48511-39616

RN10#,110

 1
48511-39615

RN10#,110

 1
48511-39805

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

RN10#,110,VZN10#,110

 4
48510A - CUSHION, FRONT SHOCK ABSORBER
90948-01003

RN10#,110,VZN10#,110

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

RN10#,110,VZN10#,110

 4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02002

RN10#,110,VZN10#,110

 4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02087

RN10#,110,VZN10#,110

 2
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-39615

RN10#,110

 1
48511-39616

RN10#,110

 1
48511-39626

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48511-39625

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48511-39795

RN10#,110

 1
48511-39805

RN10#,110

W(GAS SHOCK ABSORBER)

 1
48811 - BAR, STABILIZER, FRONT
48811-35320

RN10#,110,13#,VZN10#,110,13#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-24020

RN10#,110,13#,VZN10#,110,13#

 2
48817 - CUSHION, FRONT STABILIZER
90948-01002

RN10#,110,13#,VZN10#,110,13#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

RN10#,110,13#,VZN10#,110,13#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

RN10#,110,13#,VZN10#,110,13#

 8
48817 - CUSHION, FRONT STABILIZER
90948-01002

RN10#,110,13#,VZN10#,110,13#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

RN10#,110,13#,VZN10#,110,13#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

RN10#,110,13#,VZN10#,110,13#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

RN10#,110,13#,VZN10#,110,13#

 8
48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
90948-02004

RN10#,110,13#,VZN10#,110,13#

 8
48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
90948-02034

RN10#,110,13#,VZN10#,110,13#

 2
48817C - COLLAR(FOR STABILIZER BAR)
90440-14003

RN10#,110,13#,VZN10#,110,13#

 2
48824 - BRACKET, STABILIZER, FRONT
48824-35080

RN10#,110,13#,VZN10#,110,13#

 1
48829 - BRACKET, STABILIZER
48829-35050

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90101-10140
90105-16027
90119-08671
90119-08686
90170-16011
90179-12074
94110-41000
94180-41000
94182-11000
94184-61000
94512-31600
