RN101L-TRLSEA3 (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1989
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

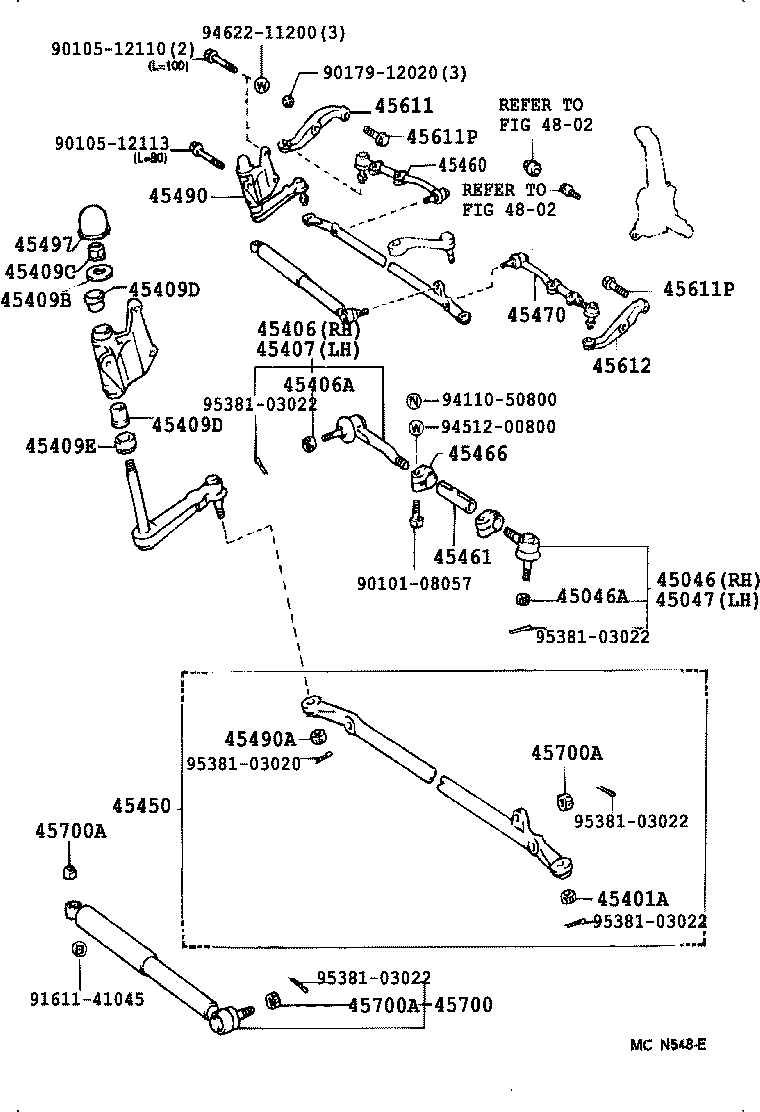

ILLUST NO. 1 OF 3(8808-9511)

Click highlighted areas on diagram

diagram 45046 45046A 45047 45401A 45406 45406A 45407 45409B 45409C 45409D 45409D 45409E 45450 45460 45461 45466 45470 45490 45490A 45497 45611 45611P 45611P 45612 45700 45700A 45700A 45700A 4802 4802 9010108057 9010512110 9010512113 9017912020 9161141045 9411050800 9451200800 9462211200 9538103020 9538103022 9538103022 9538103022 9538103022 9538103022
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29125

RN10#,110,VZN10#,110

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

RN10#,110,13#,VZN10#,110,13#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-29125

RN10#,110,VZN10#,110

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042

RN10#,110,13#,VZN10#,110,13#

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-39135

RN10#,110,VZN10#,110

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

RN10#,110,VZN10#,110

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-39135

RN10#,110,VZN10#,110

 1
45409C - NUT(FOR IDLER ARM SUPPORT)
94184-61400

RN10#,110,VZN10#,110

 1
45409D - BUSH(FOR IDLER ARM)
90386-18002

RN10#,110,VZN10#,110

 2
45409D - BUSH(FOR IDLER ARM)
90386-18002

RN10#,110,VZN10#,110

 2
45409E - SEAL, DUST(FOR IDLER ARM SUPPORT)
90304-31012

RN10#,110,VZN10#,110

 1
45450 - ROD ASSY, STEERING RELAY
45451-39015

RN10#,110,VZN10#,110

 1
45460 - ROD ASSY, TIE, RH
45460-39245

RN10#,110,VZN10#,110

 1
45461 - ROD, STEERING TIE
45465-35030

RN10#,110,VZN10#,110

 2
45466 - CLAMP, TIE ROD END
45466-30020

RN10#,110,VZN10#,110

 4
45470 - ROD ASSY, TIE, LH
45470-39055

RN10#,110,VZN10#,110

 1
45490 - ARM ASSY, STEERING IDLER
45490-39325

RN10#,110,VZN10#,110

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-12028

RN10#,110,VZN10#,110

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-35180

RN10#,110,VZN10#,110

 1
45611P - BOLT(FOR STEERING KNUCKLE)
90105-14043

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

 4
45611P - BOLT(FOR STEERING KNUCKLE)
90105-14043

RN101,110..W;RN106..W..USA;RN106..5F..CND;RN10#,110..4FC;RN101,110..G..CND;RN101,110..G..SR5;RN13#,VZN10#,110,13#

 4
45612 - ARM, STEERING KNUCKLE, LH
45612-35200

RN10#,110,VZN10#,110

 1
45700 - DAMPER ASSY, STEERING
45700-39046

RN10#,110,13#,VZN10#,110,13#

 1
45700A - NUT(FOR STEERING DAMPER)
90171-12028

RN10#,110,13#,VZN10#,110,13#

TIE ROD X DAMPER

 1
94110-41000

RN10#,110,13#,VZN10#,110,13#

HOUSING X DAMPER

 1
45700A - NUT(FOR STEERING DAMPER)
90171-12028

RN10#,110,13#,VZN10#,110,13#

TIE ROD X DAMPER

 1
94110-41000

RN10#,110,13#,VZN10#,110,13#

HOUSING X DAMPER

 1
45700A - NUT(FOR STEERING DAMPER)
90171-12028

RN10#,110,13#,VZN10#,110,13#

TIE ROD X DAMPER

 1
94110-41000

RN10#,110,13#,VZN10#,110,13#

HOUSING X DAMPER

 1
Common parts
90101-08057
90105-12110
90105-12113
90179-12020
91611-41045
94110-50800
94512-00800
94622-11200
95381-03020
95381-03022
Linked diagrams
4802

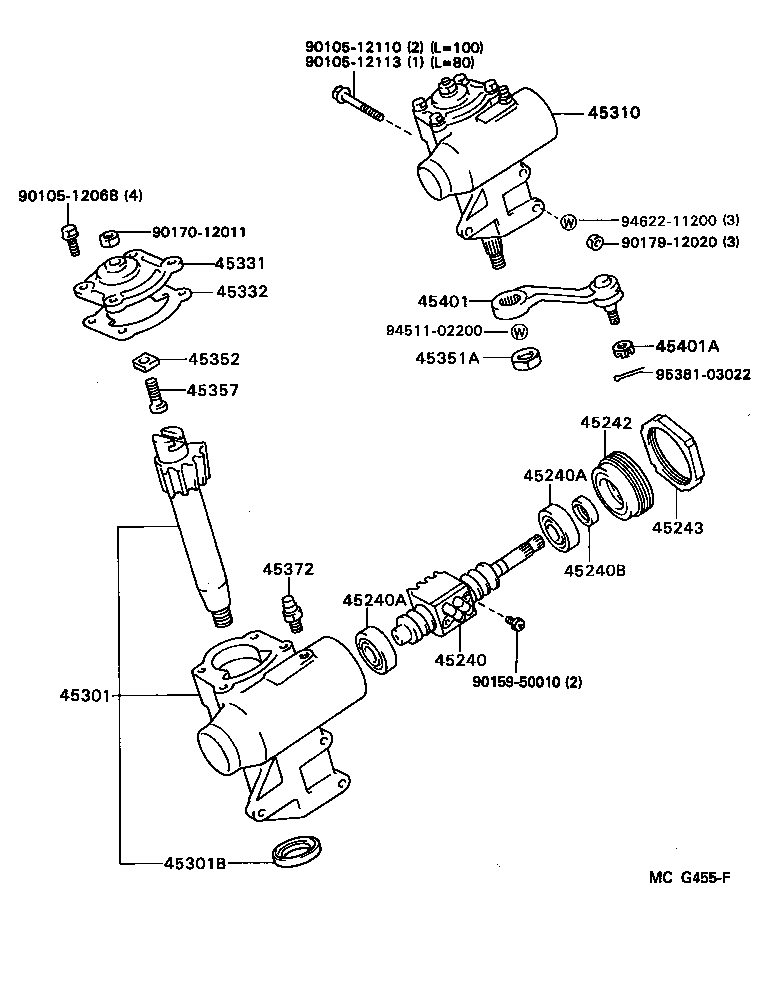

ILLUST NO. 2 OF 3(8808-9511)

Click highlighted areas on diagram

MANUAL STEERING

diagram 45240 45240A 45240A 45240B 45242 45243 45301 45301B 45310 45331 45332 45351A 45352 45357 45372 45401 45401A 9010512068 9010512110 9010512113 9015950010 9017012011 9017912020 9451102200 9462211200 9538103022
Part # Description Qty Price
45240 - WORM ASSY, STEERING
45240-60040

RN10#,110,13#

 1
45240A - BEARING(FOR STEERING WORM)
90363-20024

RN10#,110,13#

 2
45240A - BEARING(FOR STEERING WORM)
90363-20024

RN10#,110,13#

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18010

RN10#,110,13#

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-60020

RN10#,110,13#

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-60020

RN10#,110,13#

 1
45301 - HOUSING SUB-ASSY, STEERING GEAR
45301-35190

RN10#,110,13#

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-36004

RN10#,110,13#

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-35200

RN10#,110,13#

 1
45331 - COVER, SECTOR SHAFT END
45304-26030

RN10#,110,13#

NO.3

 1
45304-26040

RN10#,110,13#

NO.4

 1
45304-26010

RN10#,110,13#

NO.1

 1
45304-26020

RN10#,110,13#

NO.2

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-26010

RN10#,110,13#

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

RN10#,110,13#,VZN10#,110,13#

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-37010

RN10#,110,13#

T=1.95

 1
45353-37010

RN10#,110,13#

T=2.00

 1
45354-37010

RN10#,110,13#

T=2.05

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-22010

RN10#,110,13#

W(POWER STEERING)

 1
45357-36010

RN10#,110,13#

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

RN10#,110,13#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-35190

RN10#,110,VZN10#,110

 1
45401A - NUT, CASTLE(FOR PITMAN ARM)
90171-14042

RN10#,110,13#,VZN10#,110,13#

 1
Common parts
90105-12068
90105-12110
90105-12113
90159-50010
90170-12011
90179-12020
94511-02200
94622-11200
95381-03022

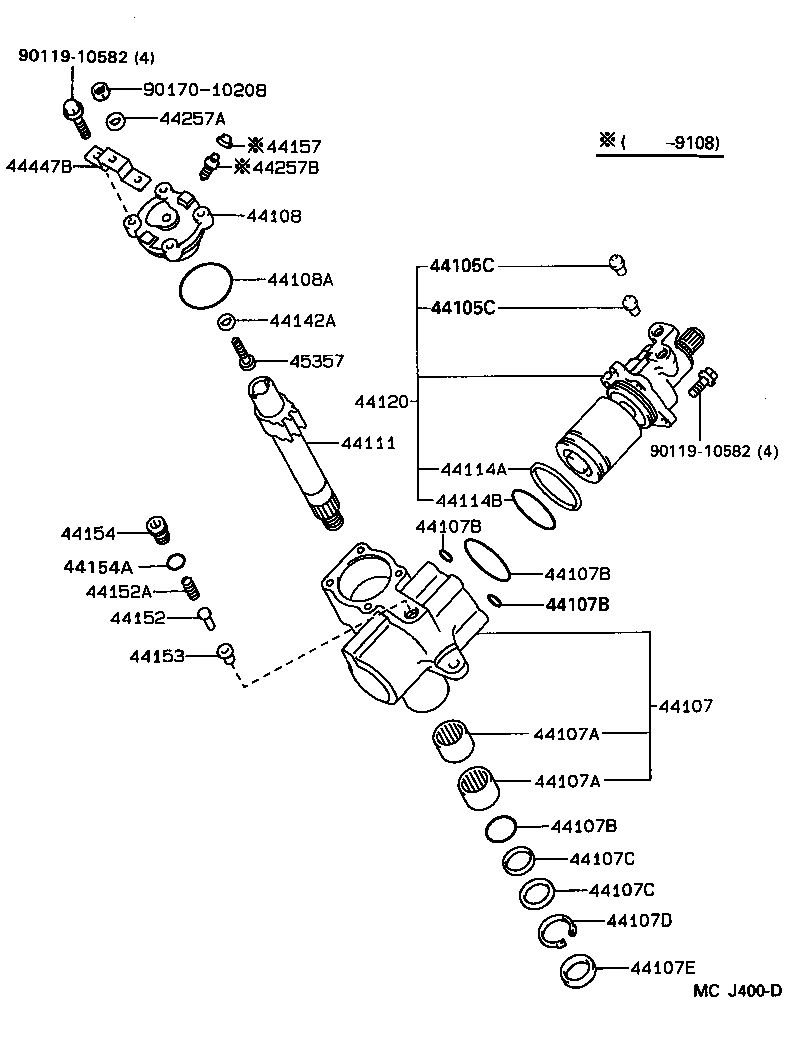

ILLUST NO. 3 OF 3(8808-9511)

Click highlighted areas on diagram

POWER STEERING

diagram 44105C 44105C 44107 44107A 44107A 44107B 44107B 44107B 44107B 44107C 44107C 44107D 44107E 44108 44108A 44111 44114A 44114B 44120 44142A 44152 44152A 44153 44154 44154A 44157 44257A 44257B 44447B 45357 9011910582 9011910582 9017010208
Part # Description Qty Price
44105C - SEAT, UNION(FOR VALVE BODY HOUSING)
90410-06005

RN10#,110,13#,VZN10#,110,13#

 2
44105C - SEAT, UNION(FOR VALVE BODY HOUSING)
90410-06005

RN10#,110,13#,VZN10#,110,13#

 2
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-35140

RN10#,110,13#,VZN10#,110,13#

 1
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-36006

RN10#,110,13#,VZN10#,110,13#

 2
44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
90364-36006

RN10#,110,13#,VZN10#,110,13#

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

RN10#,110,13#,VZN10#,110,13#

ID=65.0,OD=70.0

 1
90301-37006

RN10#,110,13#,VZN10#,110,13#

ID=37.7,OD=44.7

 1
96711-19010

RN10#,110,13#,VZN10#,110,13#

ID=9.8,OD=13.6

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

RN10#,110,13#,VZN10#,110,13#

ID=65.0,OD=70.0

 1
90301-37006

RN10#,110,13#,VZN10#,110,13#

ID=37.7,OD=44.7

 1
96711-19010

RN10#,110,13#,VZN10#,110,13#

ID=9.8,OD=13.6

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

RN10#,110,13#,VZN10#,110,13#

ID=65.0,OD=70.0

 1
90301-37006

RN10#,110,13#,VZN10#,110,13#

ID=37.7,OD=44.7

 1
96711-19010

RN10#,110,13#,VZN10#,110,13#

ID=9.8,OD=13.6

 2
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90301-65145

RN10#,110,13#,VZN10#,110,13#

ID=65.0,OD=70.0

 1
90301-37006

RN10#,110,13#,VZN10#,110,13#

ID=37.7,OD=44.7

 1
96711-19010

RN10#,110,13#,VZN10#,110,13#

ID=9.8,OD=13.6

 2
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-36002

RN10#,110,13#,VZN10#,110,13#

ID=36.0,OD=44.0

 1
90562-35001

RN10#,110,13#,VZN10#,110,13#

ID=35.7,OD=38.1

 1
44107C - RING(FOR POWER STEERING GEAR HOUSING)
90562-36002

RN10#,110,13#,VZN10#,110,13#

ID=36.0,OD=44.0

 1
90562-35001

RN10#,110,13#,VZN10#,110,13#

ID=35.7,OD=38.1

 1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90521-48002

RN10#,110,13#,VZN10#,110,13#

 1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90312-36001

RN10#,110,VZN10#,110

 1
44108 - COVER SUB-ASSY, SIDE
44108-35040

RN10#,110,13#,VZN10#,110,13#

 1
44108A - RING, O(FOR SIDE COVER)
90301-64002

RN10#,110,13#,VZN10#,110,13#

 1
44111 - SHAFT, CROSS
44111-35021

RN10#,110,13#,VZN10#,110,13#

 1
44114A - RING(FOR POWER PISTON NUT)
90562-67002

RN10#,110,13#,VZN10#,110,13#

 1
44114B - RING, O(FOR POWER PISTON NUT)
90301-64005

RN10#,110,13#,VZN10#,110,13#

 1
44120 - VALVE ASSY, W/BALL NUT
44120-35180

RN10#,110,13#,VZN10#,110,13#

 1
44142A - NUT, LOCK, NO.1
44142-22020

RN10#,110,13#,VZN10#,110,13#

 1
44152 - PLUNGER, POWER PISTON
44152-30020

RN10#,110,13#,VZN10#,110,13#

 1
44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)
90501-20095

RN10#,110,13#,VZN10#,110,13#

 1
44153 - GUIDE, POWER PISTON PLUNGER
44153-30020

RN10#,110,13#,VZN10#,110,13#

 1
44154 - NUT, POWER PISTON PLUNGER GUIDE
44154-30020

RN10#,110,13#,VZN10#,110,13#

 1
44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)
96711-19014

RN10#,110,13#,VZN10#,110,13#

 1
44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING)
44157-30010

RN10#,110,13#,VZN10#,110,13#

 1
44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
90210-10001

RN10#,110,13#,VZN10#,110,13#

 1
44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING)
47547-20010

RN10#,110,13#,VZN10#,110,13#

 1
44447B - BRACKET, HOSE SUPPORT, NO.1
44447-35020

RN10#,110,13#,VZN10#,110,13#

 1
45357 - SCREW, SECTOR SHAFT ADJUSTING
45357-22010

RN10#,110,13#

W(POWER STEERING)

 1
45357-36010

RN10#,110,13#

 1
Common parts
90119-10582
90170-10208

ILLUST NO. 2 OF 3(8808-9511)

Click highlighted areas on diagram

POWER STEERING

diagram 04445 04455A 44110 45351A 45401 9010112153 9010512110 9010512113 9017012027 9017912020 9451102200 9462211200 9462211200
Part # Description Qty Price
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-35110

RN10#,110,13#,VZN10#,110,13#

 1
04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE
04455-35080

RN10#,110,13#,VZN10#,110,13#

 1
44110 - GEAR ASSY, POWER STEERING
44110-35190

RN10#,110,13#,VZN10#,110,13#

 1
45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058

RN10#,110,13#,VZN10#,110,13#

 1
45401 - ARM SUB-ASSY, PITMAN
45401-35190

RN10#,110,VZN10#,110

 1
Common parts
90101-12153
90105-12110
90105-12113
90170-12027
90179-12020
94511-02200
94622-11200
