RN101L-TRLSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )RN10#,110,VZN10#,110

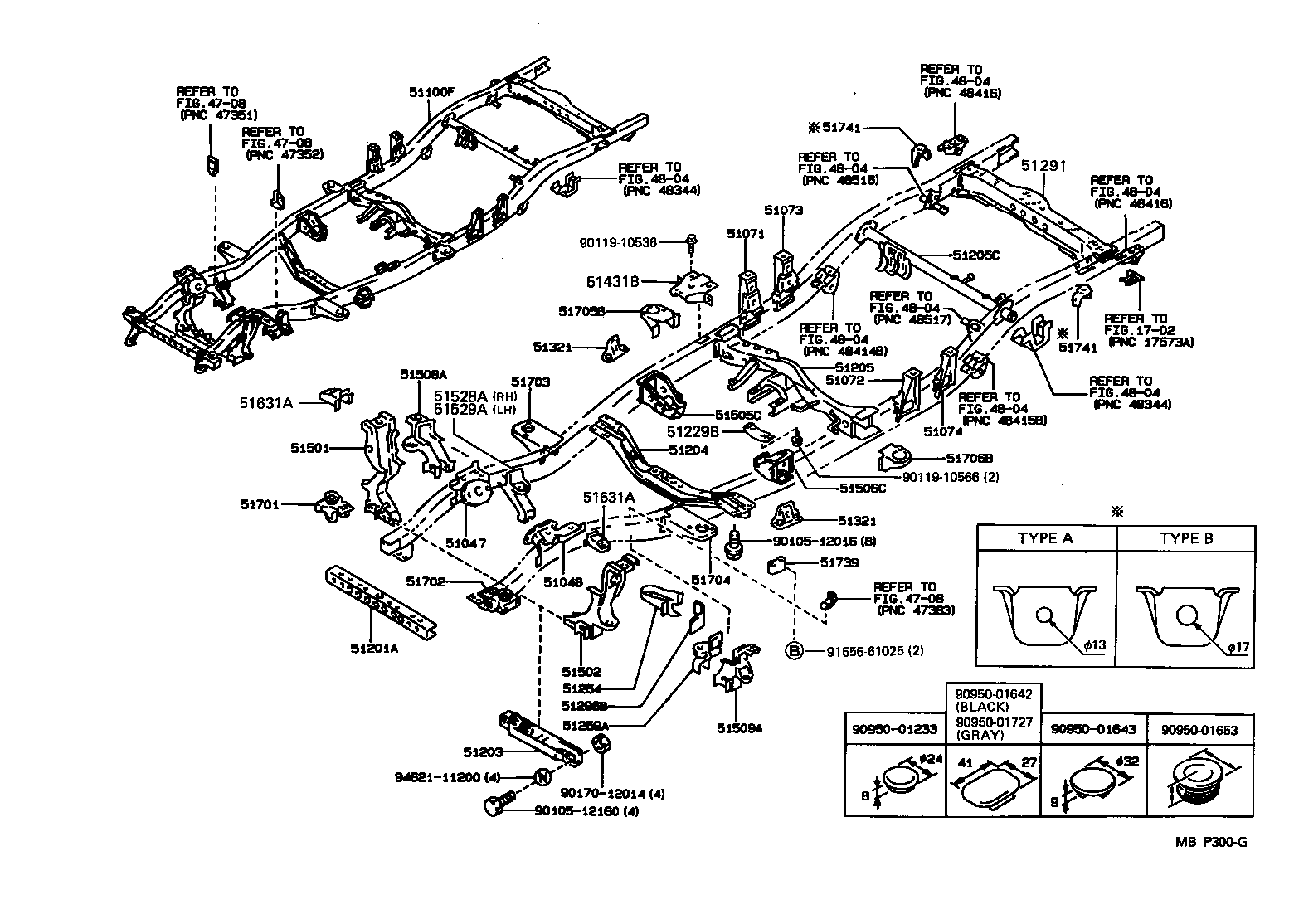

Click highlighted areas on diagram

diagram 1702 4708 4708 4708 4804 4804 4804 4804 4804 4804 4804 4804 51047 51048 51071 51072 51073 51074 51100F 51201A 51203 51204 51205 51205C 51229B 51254 51259A 51291 51296B 51321 51321 51431B 51501 51502 51505C 51506C 51508A 51509A 51528A 51529A 51631A 51631A 51701 51702 51703 51704 51705B 51706B 51739 51741 51741 9010512016 9010512160 9011910536 9011910566 9017012014 9095001233 9095001642 9095001643 9095001653 9095001727 9165661025 9462111200
Part # Description Qty Price
51047 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, RH
51047-35070

RN10#,110,13#

 1
51048 - BRACKET SUB-ASSY, ENGINE MOUNTING & UPPER ARM, LH
51048-35070

RN10#,110,13#

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-35040

RN101,110,VZN100,110

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51072-35020

RN101,110,VZN100,110

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-35020

RN10#,110,VZN10#,110

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-35020

RN10#,110,VZN10#,110

 1
51100F - FRAME SUB-ASSY
51001-3D580

RN101..5F

 1
51001-3D750

RN101..5F..USA

CALIFORNIA SPEC

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-35180

RN10#,110,13#,VZN10#,110,13#

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51203-35270

RN10#,110,13#,VZN10#,110,13#

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51202-35240

RN10#,110,13#..5F

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35410

RN101

 1
51204-35420

RN101..USA

CALIFORNIA SPEC

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35131

RN10#,110,VZN10#,110

 1
51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51229-35020

RN10#,13#

 1
51254 - BRACKET, DIFFERENTIAL SUPPORT, LH
51254-35010

RN10#,110,13#,VZN10#,110,13#

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35120

RN10#,110,VZN10#,110

 1
51296B - REINFORCEMENT, DIFFERENTIAL BRACKET, LH
51296-35010

RN10#,110,13#,VZN10#,110,13#

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

RN10#,110,VZN10#,110

RH

 1
51321-35090

RN10#,110,VZN10#,110

LH

 1
51321 - GUSSET, CROSSMEMBER, NO.2 RH
51321-35050

RN10#,110,VZN10#,110

RH

 1
51321-35090

RN10#,110,VZN10#,110

LH

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-35030

RN10#,110,13#,VZN10#,110,13#

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-35030

RN10#,110,13#,VZN10#,110,13#

 1
51505C - SUPPORT SUB-ASSY, ANCHOR ARM, RH
51505-35080

RN101,13#,VZN100,13#

 1
51506C - SUPPORT SUB-ASSY, ANCHOR ARM, LH
51506-35020

RN10#,110,13#,VZN10#,110,13#

 1
51508A - BRACKET SUB-ASSY, LOWER ARM, RH
51508-35900

RN10#,110,13#,VZN10#,110,13#

 1
51509A - BRACKET SUB-ASSY, LOWER ARM, LH
51509-35900

RN10#,110,13#,VZN10#,110,13#

 1
51528A - REINFORCEMENT, LOWER ARM BRACKET, RH
51528-35900

RN10#,110,13#,VZN10#,110,13#

 1
51529A - REINFORCEMENT, LOWER ARM BRACKET, LH
51529-35900

RN10#,110,13#,VZN10#,110,13#

 1
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35040

RN10#,110,VZN10#,110

 2
51631A - STOPPER, FRONT SUSPENSION REBOUND, NO.1
51631-35040

RN10#,110,VZN10#,110

 2
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35130

RN10#,110,13#,VZN10#,110,13#

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51702-35110

RN10#,110,13#,VZN10#,110,13#

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35080

RN10#,110,13#,VZN10#,110,13#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35100

RN10#,110,13#,VZN10#,110,13#

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-35100

RN10#,110,13#,VZN10#,110,13#

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-35020

RN10#,110,13#,VZN10#,110,13#

 1
51739 - WEIGHT, CAB MOUNTING NO.2 BRACKET
51739-35020

RN10#,VZN10#

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51715-35020

RN10#,110,VZN10#,110

TYPE A

 1
51741-35050

RN10#,110,VZN10#,110

TYPE B

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51715-35020

RN10#,110,VZN10#,110

TYPE A

 1
51741-35050

RN10#,110,VZN10#,110

TYPE B

 2
Common parts
90105-12016
90105-12160
90119-10536
90119-10566
90170-12014
90950-01233
90950-01642
90950-01643
90950-01653
90950-01727
91656-61025
94621-11200
Linked diagrams
1702
4708
4804
