RN101L-TRLSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

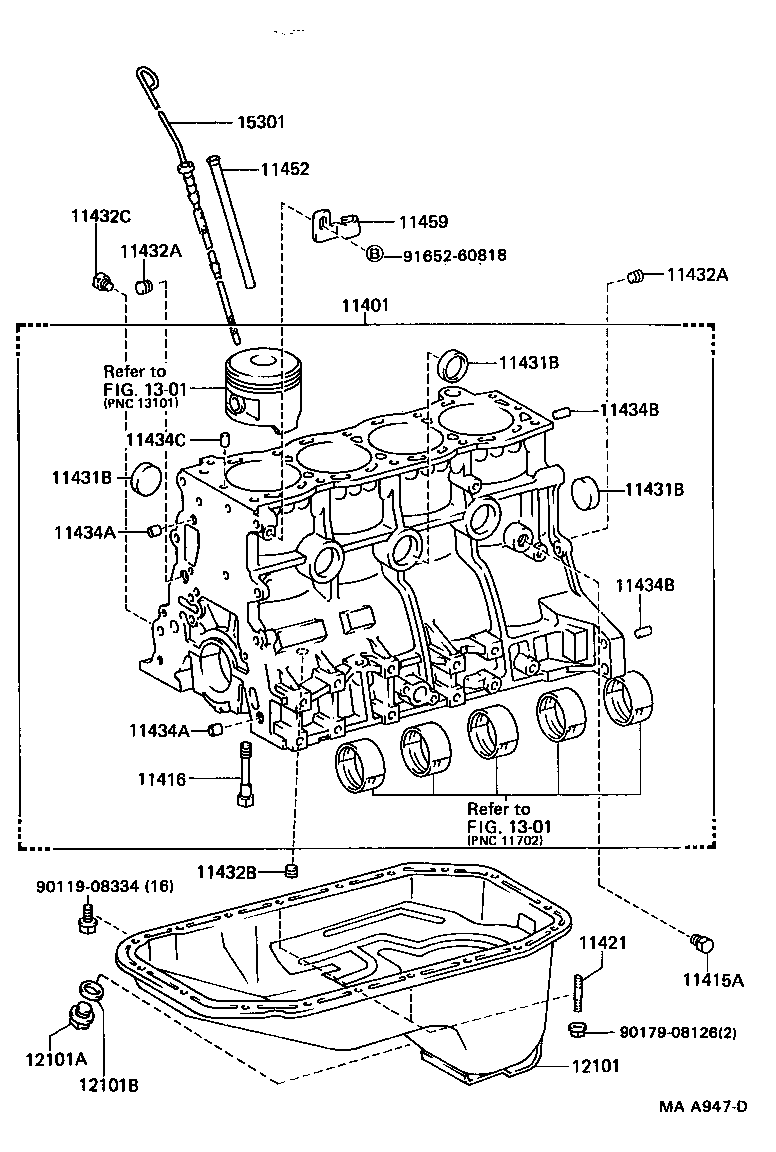

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431B 11431B 11431B 11432A 11432A 11432B 11432C 11434A 11434A 11434B 11434B 11434C 11452 11459 12101 12101A 12101B 1301 1301 15301 9011908334 9017908126 9165260818
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-39447

22RE..RN10#,110,13#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-53007

22RE..RN10#,110,13#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02042

22RE..RN10#,110,13#

 10
11421 - BOLT, STUD(FOR OIL PAN)
92122-40814

22RE..RN10#,110,13#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

22RE..RN10#,110,13#

 6
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

22RE..RN10#,110,13#

 6
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

22RE..RN10#,110,13#

 6
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53002

22RE..RN10#,110,13#

RR

 1
90344-53008

22RE..RN10#,110,13#

FR

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53002

22RE..RN10#,110,13#

RR

 1
90344-53008

22RE..RN10#,110,13#

FR

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-52003

22RE..RN10#,110,13#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-51006

22RE..RN10#,110,13#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

22RE..RN10#,110,13#

L=8,OD=11

 4
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90253-11021

22RE..RN10#,110,13#

L=8,OD=11

 4
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

22RE..RN10#,110,13#

L=22,OD=10

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

22RE..RN10#,110,13#

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

22RE..RN10#,110,13#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-35010

22RE..RN10#,110,13#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-35010

22RE..RN10#,110,13#

 1
12101 - PAN SUB-ASSY, OIL
12101-35040

22RE..RN101..5F;22RE..RN106,110,13#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

22RE..RN10#,110,13#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12021

22RE..RN10#,110,13#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-35020

22RE..RN10#,110,13#

 1
Common parts
90119-08334
90179-08126
91652-60818
Linked diagrams
1301
