RN101L-TRLSEA (1988)

Toyota 4-Runner Truck (Jpp)

Production Aug 1988 - Aug 1990
Engine 22RE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )22RE

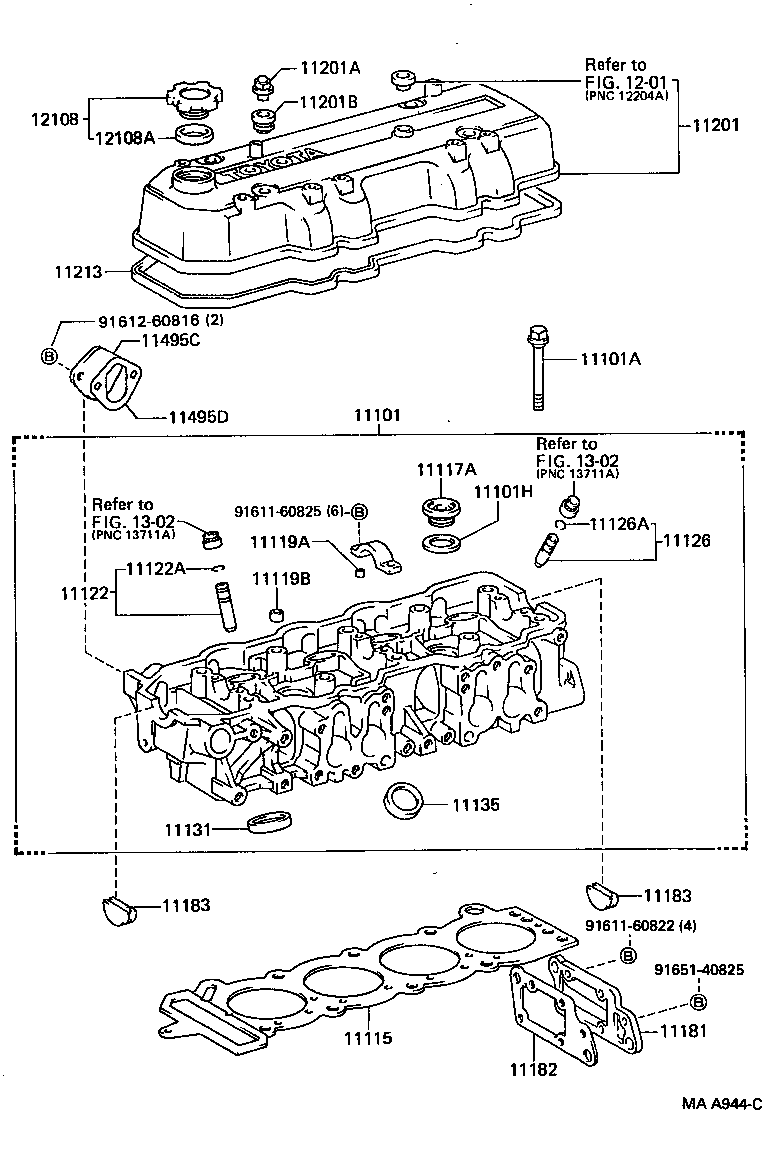

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11181 11182 11183 11183 11201 11201A 11201B 11213 11495C 11495D 1201 12108 12108A 1302 1302 9161160822 9161160825 9161260816 9165140825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-35060

22RE..RN10#,110,13#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12092

22RE..RN10#,110,13#

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-33133

22RE..RN10#,110,13#

 1
11115 - GASKET, CYLINDER HEAD
11115-35060

22RE..RN10#,110,13#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

22RE..RN10#,110,13#

 1
11119A - PIN, STRAIGHT, NO.1
90253-11021

22RE..RN10#,110,13#

L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

22RE..RN10#,110,13#

L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11123-35020

22RE..RN10#,110,13#

O/S 0.05

 4
11122-35020

22RE..RN10#,110,13#

STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

22RE..RN10#,110,13#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

22RE..RN10#,110,13#

STD

 4
11123-38021

22RE..RN10#,110,13#

O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

22RE..RN10#,110,13#

 4
11131 - SEAT, INTAKE VALVE
11131-35010

22RE..RN10#,110

STD

 4
11132-35010

22RE..RN10#,110

O/S 0.03

 4
11135 - SEAT, EXHAUST VALVE
11135-35010

22RE..RN10#,110,13#

STD

 4
11136-35010

22RE..RN10#,110,13#

O/S 0.03

 4
11181 - PLATE, CYLINDER HEAD, REAR
11181-35050

22RE..RN10#,110,13#

 1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-35050

22RE..RN10#,110,13#

 1
11183 - PLUG, SEMICIRCULAR
11183-38010

22RE..RN10#,110,13#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

22RE..RN10#,110,13#

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-35031

22RE..RN10#,110,13#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08041

22RE..RN10#,110,13#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08026

22RE..RN10#,110,13#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-35010

22RE..RN10#,110,13#

 1
11495C - PLUG, PLATE(FOR CYLINDER HEAD)
11495-40010

22RE..RN10#,110,13#

 1
11495D - GASKET(FOR CYLINDER HEAD)
11496-35010

22RE..RN10#,110,13#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

22RE..RN101..5F;22RE..RN106,110,13#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

22RE..RN101..5F;22RE..RN106,110,13#

 1
Common parts
91611-60822
91611-60825
91612-60816
91651-40825
Linked diagrams
1201
1302
