VZN66L-PSCEA3 (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )VZN6#..4FC

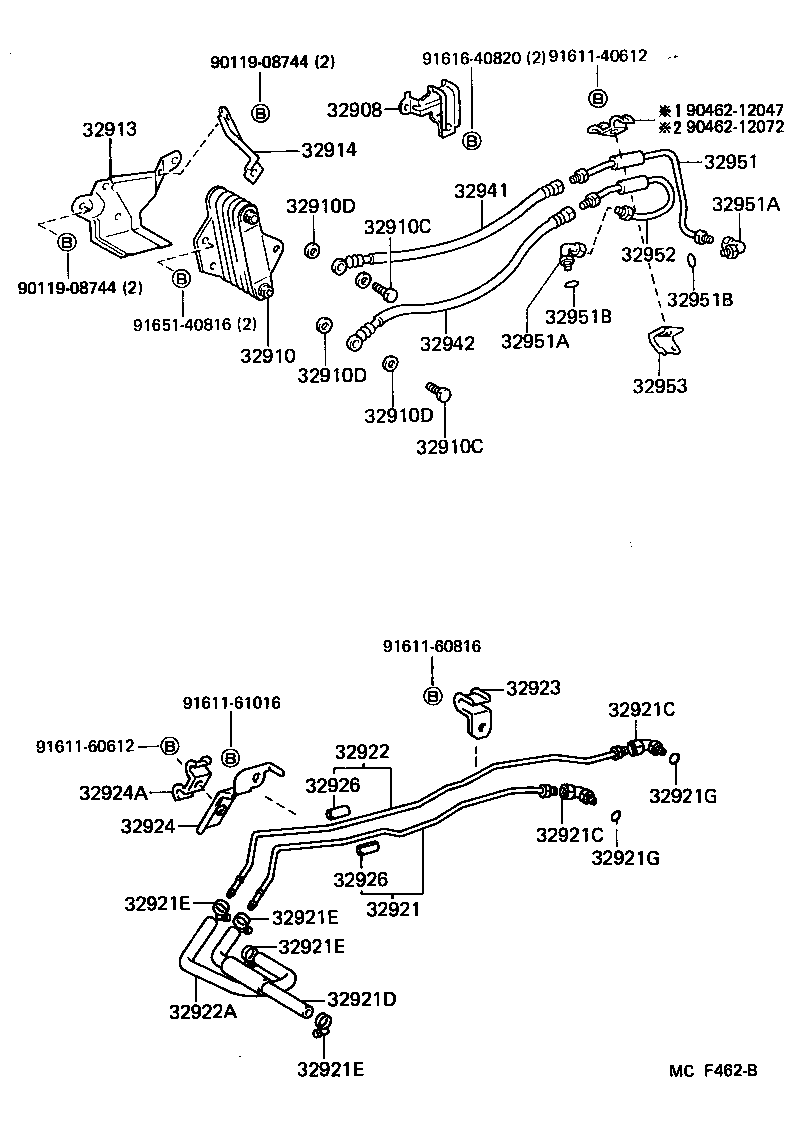

Click highlighted areas on diagram

diagram 32908 32910 32910C 32910C 32910D 32910D 32910D 32913 32914 32921 32921C 32921C 32921D 32921E 32921E 32921E 32921E 32921G 32921G 32922 32922A 32923 32924 32924A 32926 32926 32941 32942 32951 32951A 32951A 32951B 32951B 32952 32953 9011908744 9011908744 9046212047 9046212072 9161140612 9161160612 9161160816 9161161016 9161640820 9165140816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-35130

VZN6#..4FC

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-35020

VZN6#..4FC

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-35120

VZN6#..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-16023

VZN6#..4FC

 1
Common parts
90119-08744
90462-12047
90462-12072
91611-40612
91611-60612
91611-60816
91611-61016
91616-40820
91651-40816
