VZN66L-PDEK (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )VZN6#

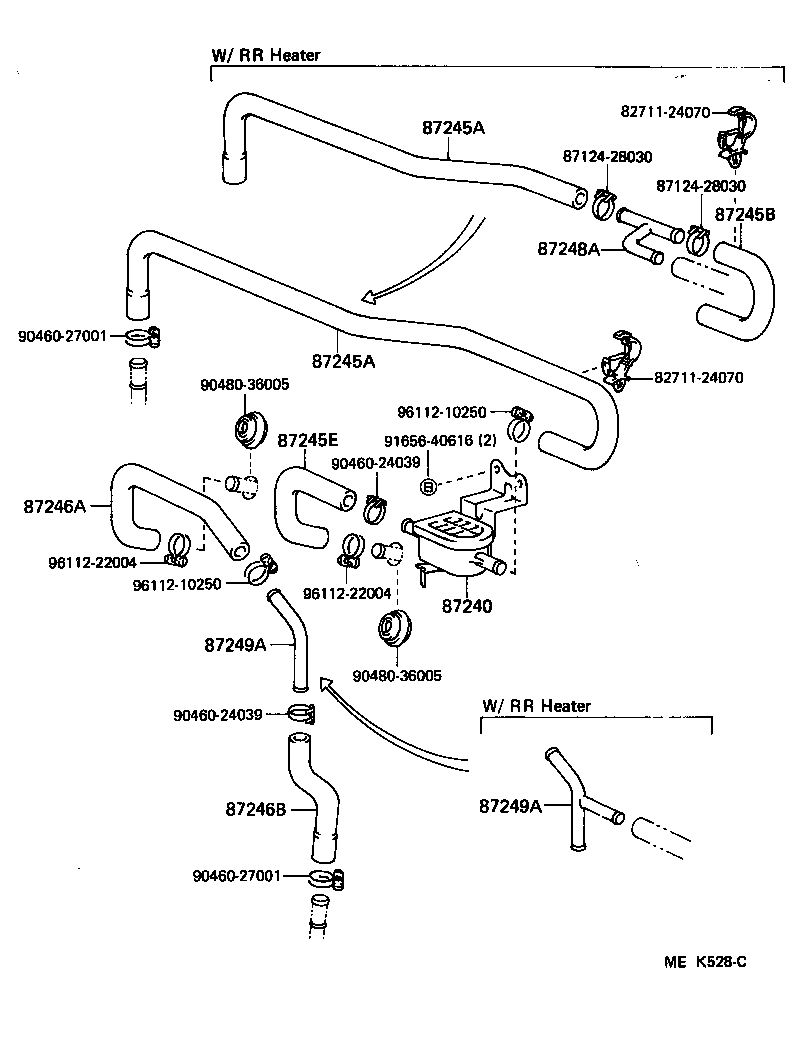

Click highlighted areas on diagram

diagram 8271124070 8271124070 8712428030 8712428030 87240 87245A 87245A 87245B 87245E 87246A 87246B 87248A 87249A 87249A 9046024039 9046024039 9046027001 9046027001 9048036005 9048036005 9165640616 9611210250 9611210250 9611222004 9611222004
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-89116

LN5#,6#

 1
87240-89117

RN5#,6#,7#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89156

RN5#,6#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-89156

RN5#,6#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-89146

LN5#,6#,RN5#,6#,7#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-89163

RN5#,6#,7#..CBR,EFI

 1
87246B - HOSE, HEATER WATER, OUTLET B
99556-30050

RN5#,6#..CBR,EFI

*H,L=50

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN5#,6#,7#..CBR,EFI

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-89121

RN5#,6#,7#..CBR,EFI

 1
Common parts
82711-24070
87124-28030
90460-24039
90460-27001
90480-36005
91656-40616
96112-10250
96112-22004
