VZN66L-PDEK (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

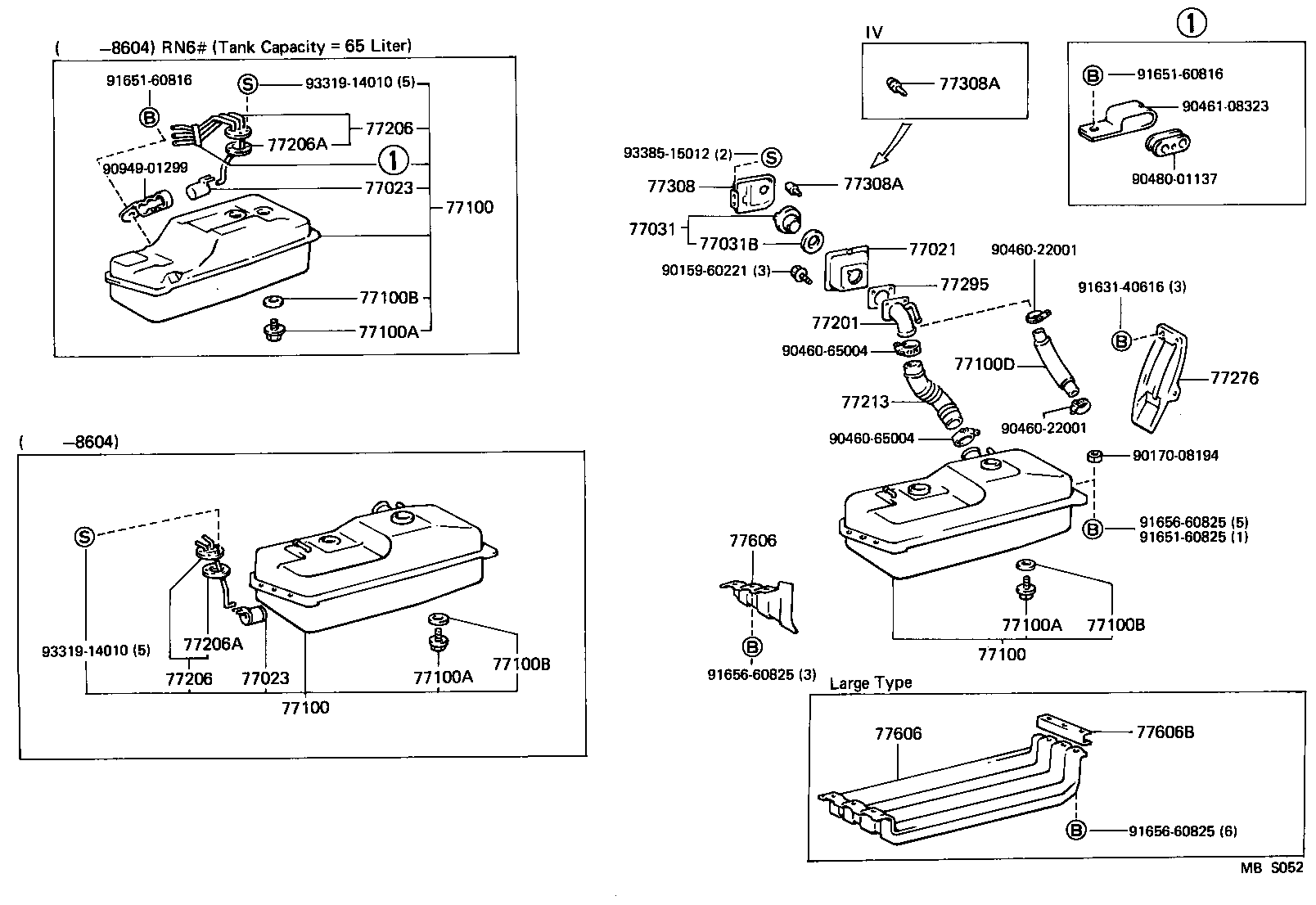

Click highlighted areas on diagram

diagram 77021 77023 77023 77031 77031B 77100 77100 77100 77100A 77100A 77100A 77100B 77100B 77100B 77100D 77201 77206 77206 77206A 77206A 77213 77276 77295 77308 77308A 77308A 77606 77606 77606B 9015960221 9017008194 9046022001 9046022001 9046065004 9046065004 9046108323 9048001137 9094901299 9163140616 9165160816 9165160816 9165160825 9165660825 9165660825 9165660825 9331914010 9331914010 9338515012
Part # Description Qty Price
77021 - BOX ASSY, FUEL TANK INLET
61709-89102

LN6#,RN6#,VZN6#..HLF..CBU

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

LN5#,6#

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

LN5#,6#

 1
77031 - CAP ASSY, FUEL TANK
77310-32010

LN5#,6#

 1
77310-16010

RN5#,6#,7#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010

RN5#,6#,7#,VZN6#

 1
77316-32010

LN5#,6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LN5#,6#,RN5#,6#,7#,VZN6#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77408-35020

LN5#,6#,RN5#,6#,7#,VZN6#..T1

L=340

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35250

RN6#,VZN6#..HLF..CBU

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

LN5#,6#

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14020

LN5#,6#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-35130

LN6#,RN6#,VZN6#..HLF..CBU

 1
77276 - PROTECTOR, FUEL HOSE
77276-89102

LN6#,RN6#,VZN6#..HLF..CBU

 1
77295 - SHIELD, FUEL FILLER PIPE
77291-35010

LN5#,65,RN5#,6#,70,VZN6#..T1..CBU

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77305-89104

LN6#,RN6#,VZN6#..HLF..CBU

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003

LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-08003

LN5#,6#,RN5#,6#,70,VZN6#..T1..CBU

 1
Common parts
90159-60221
90170-08194
90460-22001
90460-65004
90461-08323
90480-01137
90949-01299
91631-40616
91651-60816
91651-60825
91656-60825
93319-14010
93385-15012
