VZN66L-PDEA3 (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

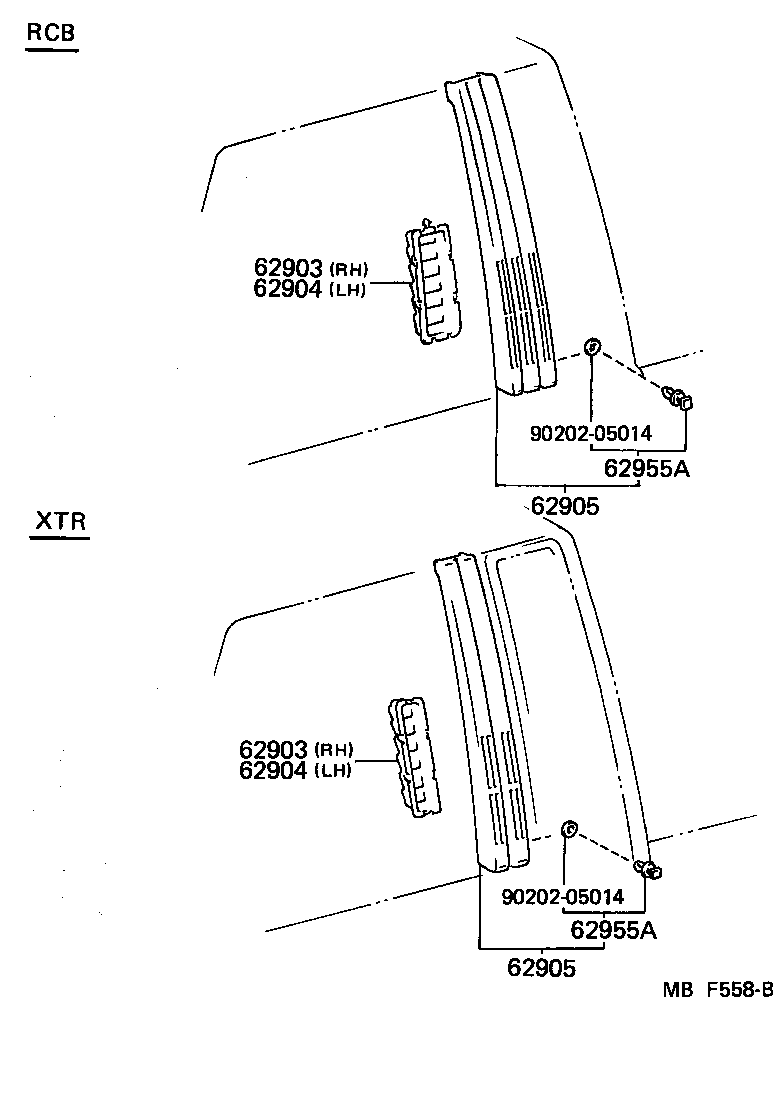

Click highlighted areas on diagram

diagram 62903 62903 62904 62904 62905 62905 62955A 62955A 9020205014 9020205014
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-89101

LN51,RN50,60,61,75,VZN61;LN56,65,RN55,65,66,VZN66..RCB

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-89101

LN51,RN50,60,61,75,VZN61;LN56,65,RN55,65,66,VZN66..RCB

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-89101

LN51,RN50,60,61,75,VZN61;LN56,65,RN55,65,66,VZN66..RCB

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-89101

LN51,RN50,60,61,75,VZN61;LN56,65,RN55,65,66,VZN66..RCB

 1
62905 - LOUVER, QUARTER VENTILATION
62905-89101

LN5#,65,RN5#,6#,75..RCB

RH

 1
62906-89101

LN5#,65,RN5#,6#,75,VZN6#..RCB

LH

 1
62905 - LOUVER, QUARTER VENTILATION
62905-89101

LN5#,65,RN5#,6#,75..RCB

RH

 1
62906-89101

LN5#,65,RN5#,6#,75,VZN6#..RCB

LH

 1
Common parts
90202-05014
