VZN66L-MSCEA3 (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )3VZE

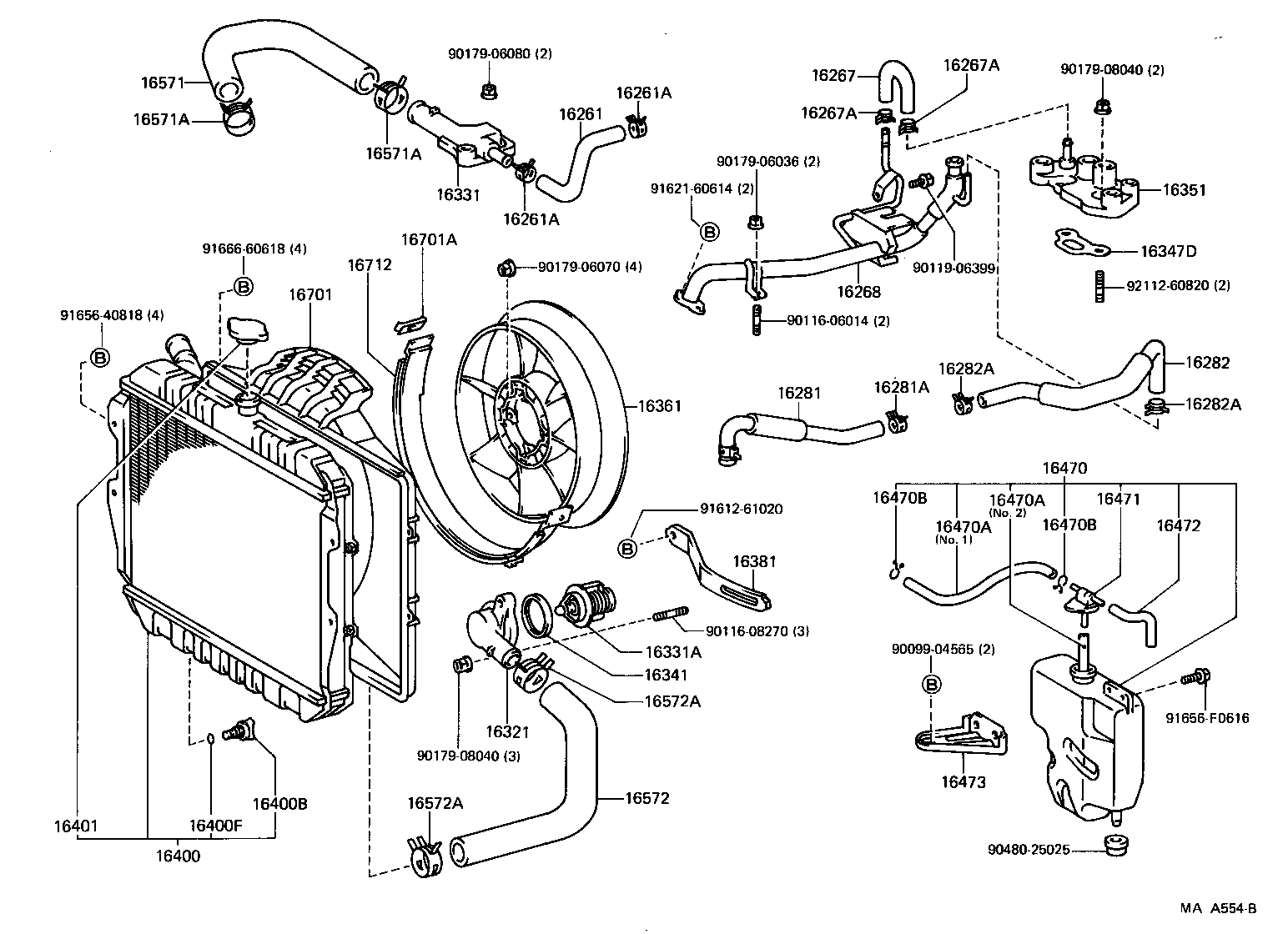

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16267 16267A 16267A 16268 16281 16281A 16282 16282A 16282A 16321 16331 16331A 16341 16347D 16351 16361 16381 16400 16400B 16400F 16401 16470 16470A 16470A 16470B 16470B 16471 16472 16473 16571 16571A 16571A 16572 16572A 16572A 16701 16701A 16712 9009904565 9011606014 9011608270 9011906399 9017906036 9017906070 9017906080 9017908040 9017908040 9048025025 9161261020 9162160614 9165640818 91656F0616 9166660618 9211260820
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-65010

3VZE..VZN6#

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-65010

3VZE..VZN6#

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-65010

3VZE..VZN6#

 1
16331 - OUTLET, WATER
16331-65010

3VZE..VZN6#

 1
16400B - PLUG, RADIATOR DRAIN COCK
90910-09054

3VZE..VZN6#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

3VZE..VZN6#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3VZE..VZN6#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

3VZE..VZN6#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3VZE..VZN6#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

3VZE..VZN6#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

3VZE..VZN6#

RADIATOR SIDE

 1
96111-10460

3VZE..VZN6#

WATER PUMP SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37001

3VZE..VZN6#

RADIATOR SIDE

 1
96111-10460

3VZE..VZN6#

WATER PUMP SIDE

 1
Common parts
90099-04565
90116-06014
90116-08270
90119-06399
90179-06036
90179-06070
90179-06080
90179-08040
90480-25025
91612-61020
91621-60614
91656-40818
91656-F0616
91666-60618
92112-60820
