VZN66L-MSCEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )VZN6#

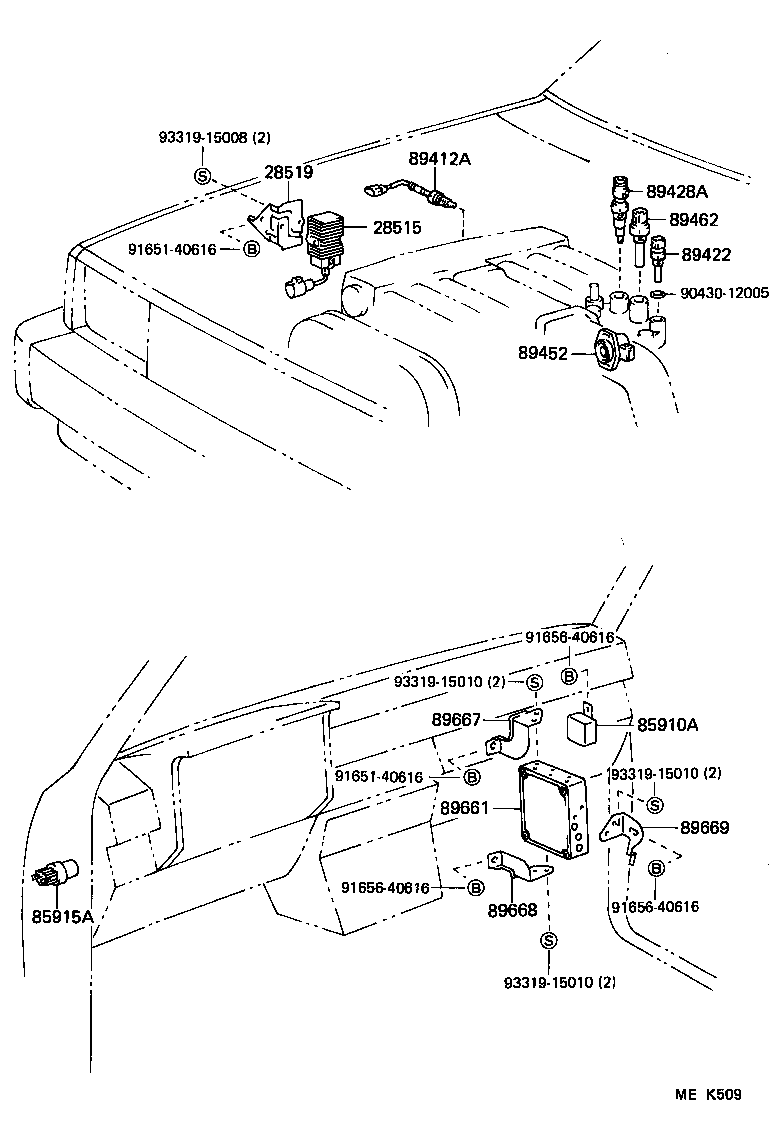

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 89412A 89422 89428A 89452 89462 89661 89667 89668 89669 9043012005 9165140616 9165140616 9165640616 9165640616 9165640616 9331915008 9331915010 9331915010 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-70010

3VZE..VZN6#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-35040

3VZE..VZN6#

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-14020

RN5#,6#,75..EFI,TBO

 1
85915A - RELAY, MAIN
90987-02004

RN5#,6#,75..EFI,TBO

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

RN5#,6#,75..EFI,TBO

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

RN5#,6#,75..EFI,TBO

 1
89661 - COMPUTER, ENGINE CONTROL
89661-35120

VZN6#

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89567-35010

RN5#,6#..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89568-35010

RN5#,6#..EFI,TBO

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89569-35010

RN55,6#,7#,VZN6#..EFI,TBO

 1
Common parts
90430-12005
91651-40616
91656-40616
93319-15008
93319-15010
