VZN66L-MSCEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)

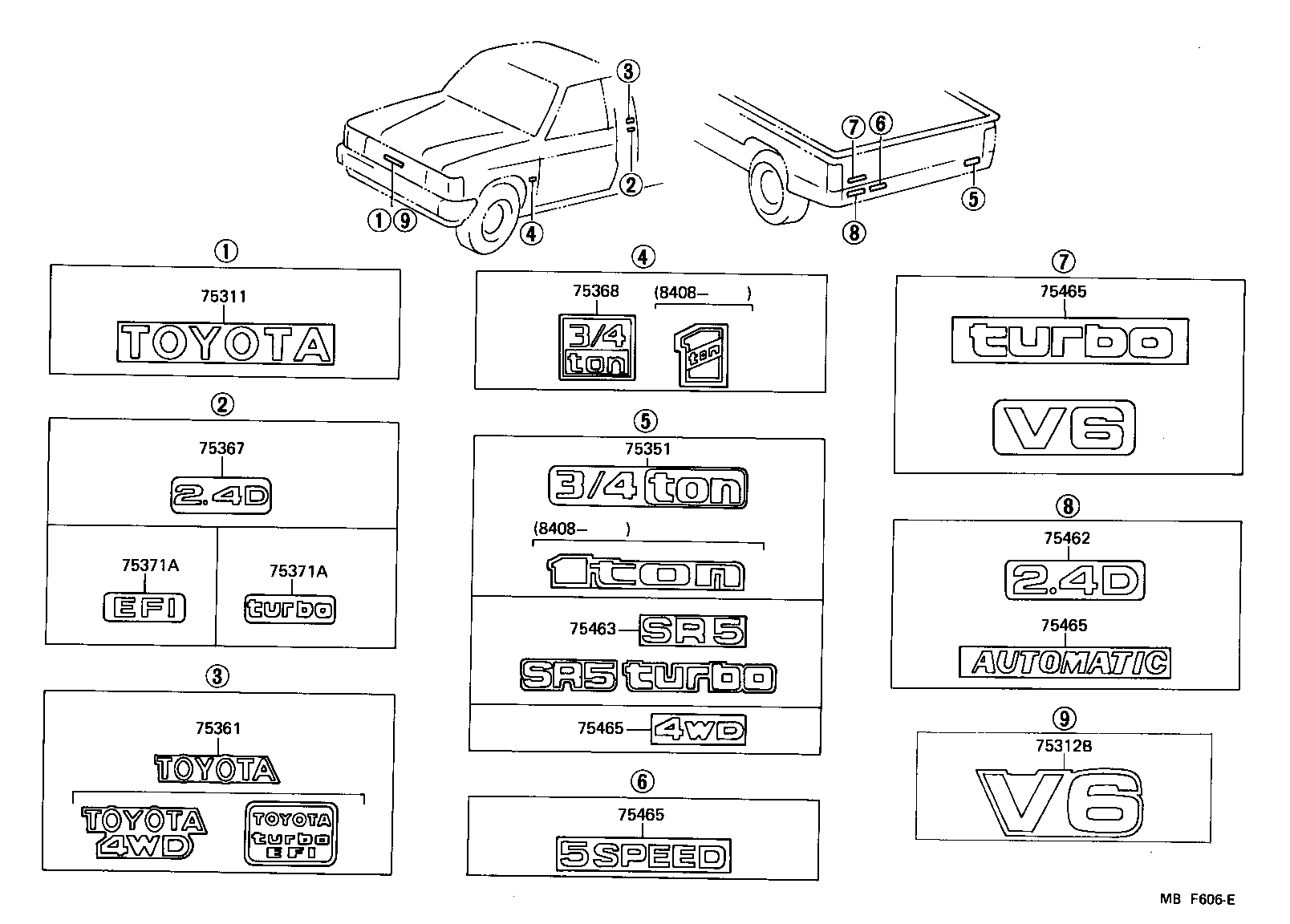

Click highlighted areas on diagram

diagram 75311 75312B 75351 75361 75367 75368 75371A 75371A 75462 75463 75465 75465 75465 75465
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-89109

LN5#,6#,RN5#,6#,7#

 1
75371A - EMBLEM, QUARTER PANEL
75371-89102

RN5#,6#,75,VZN6#..T1..EFI

EFI

 2
75371A - EMBLEM, QUARTER PANEL
75371-89102

RN5#,6#,75,VZN6#..T1..EFI

EFI

 2
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75473-89117

VZN6#..HLF..CBU

V6

 1
75473-89106

LN56,6#..CBU

2.4D

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75472-89121

RN5#,6#,VZN6#..SR5..HLF..CBU

SR5,SR5

 1
