VZN66L-MSCEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )3VZE

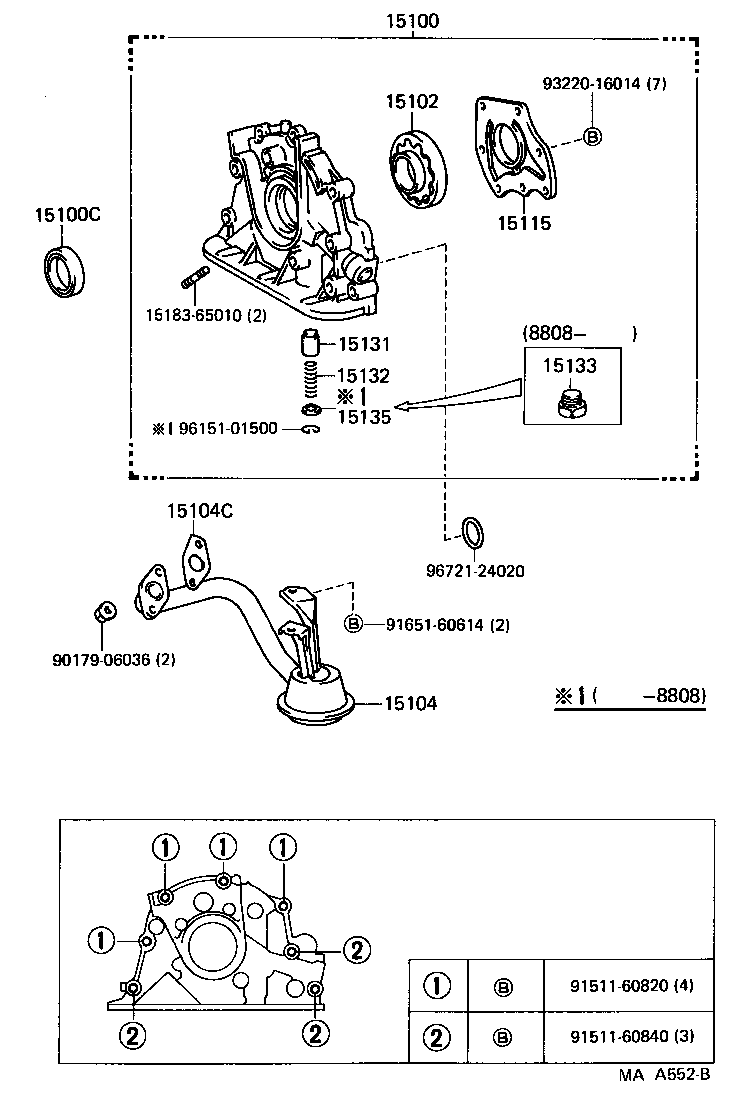

Click highlighted areas on diagram

diagram 15100 15100C 15102 15104 15104C 15115 15131 15132 15133 15135 1518365010 9017906036 9151160820 9151160840 9165160614 9322016014 9615101500 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-65010

3VZE..VZN6#

 1
15100-65011

3VZE..VZN6#

 1
15102 - ROTOR SET, OIL PUMP
15103-65010

3VZE..VZN6#

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62010

3VZE..VZN6#

 1
15115 - COVER, OIL PUMP
15115-65010

3VZE..VZN6#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010

3VZE..VZN6#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

3VZE..VZN6#

 1
Common parts
15183-65010
90179-06036
91511-60820
91511-60840
91651-60614
93220-16014
96151-01500
96721-24020
