VZN66L-MDEK (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )3VZE

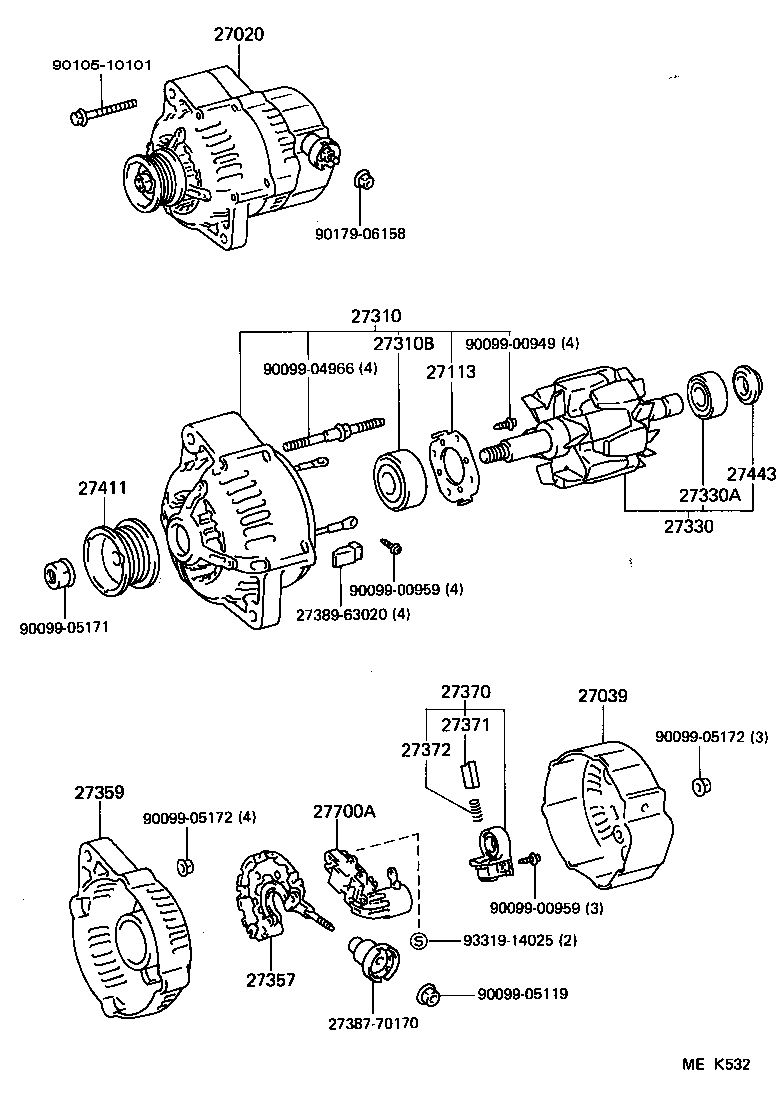

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738770170 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010510101 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-65010

3VZE..VZN6#

12V 60A,W/REGULATOR-IC TYPE

 1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90105-10101
90179-06158
93319-14025
