VZN66L-MDEK (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )3VZE

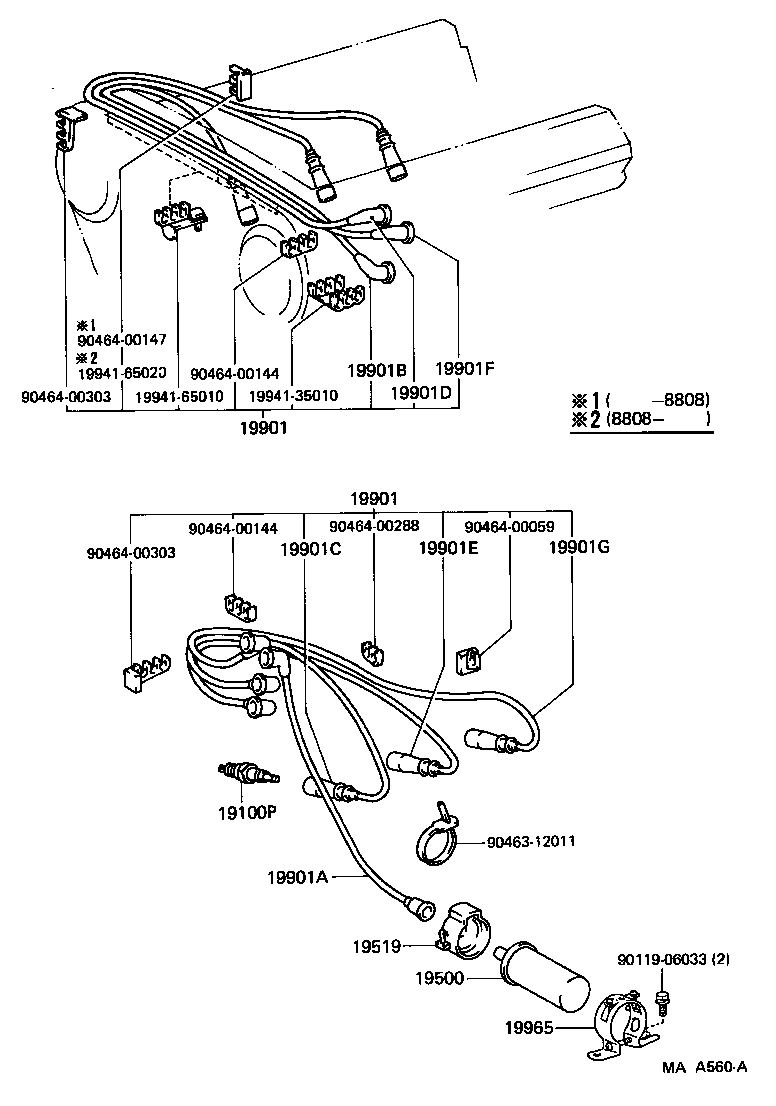

Click highlighted areas on diagram

diagram 19100P 19500 19519 19901 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 1994135010 1994165010 1994165020 19965 9011906033 9046312011 9046400059 9046400144 9046400144 9046400147 9046400288 9046400303 9046400303
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01153

3VZE..VZN6#

Q16R-U,Q16R-U

 6
19519 - COVER, IGNITION COIL
19519-28020

3VZE..VZN6#..CND

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21416

3VZE..VZN6#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21416

3VZE..VZN6#

 1
Common parts
19941-35010
19941-65010
19941-65020
90119-06033
90463-12011
90464-00059
90464-00144
90464-00147
90464-00288
90464-00303
