VZN61LV-MSEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )3VZE

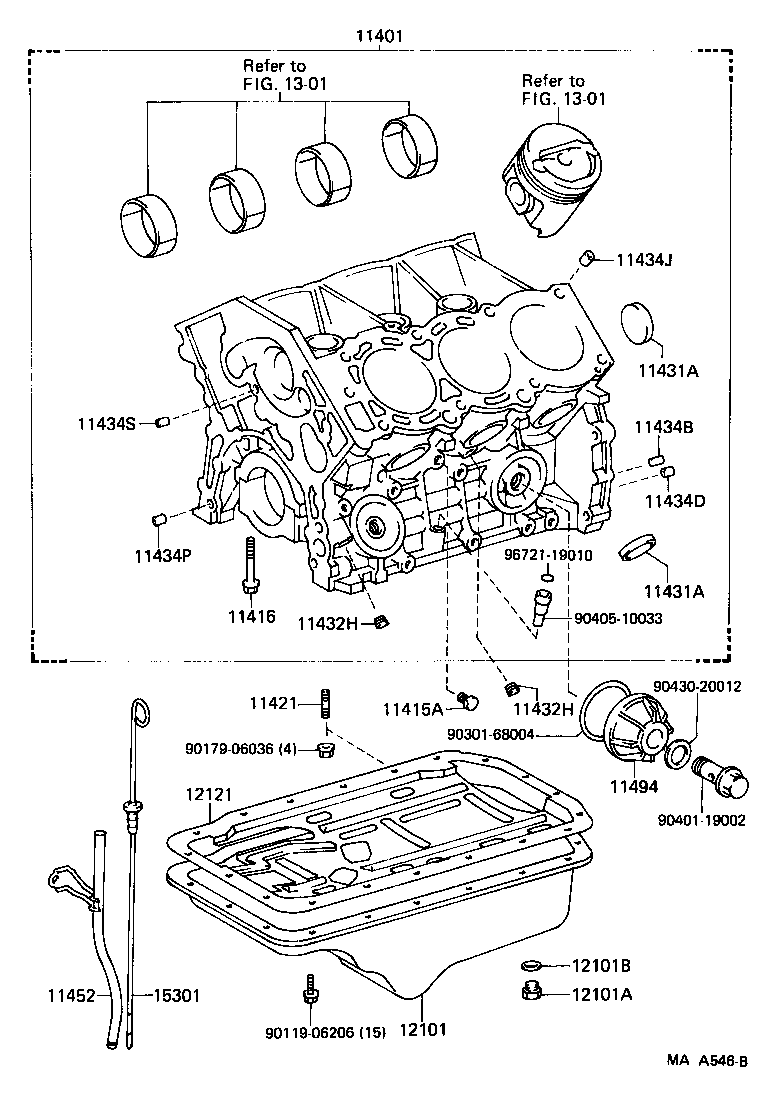

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11431A 11431A 11432H 11432H 11434B 11434D 11434J 11434P 11434S 11452 11494 12101 12101A 12101B 12121 1301 1301 15301 9011906206 9017906036 9030168004 9040119002 9040510033 9043020012 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69335

3VZE..VZN6#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

3VZE..VZN6#

L=22,OD=10,L=22,OD=10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-65010

3VZE..VZN6#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12019

3VZE..VZN6#

 1
Common parts
90119-06206
90179-06036
90301-68004
90401-19002
90405-10033
90430-20012
96721-19010
Linked diagrams
1301
