VZN61LG-PSEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Mar 1989
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8711- )VZN6#..R

Click highlighted areas on diagram

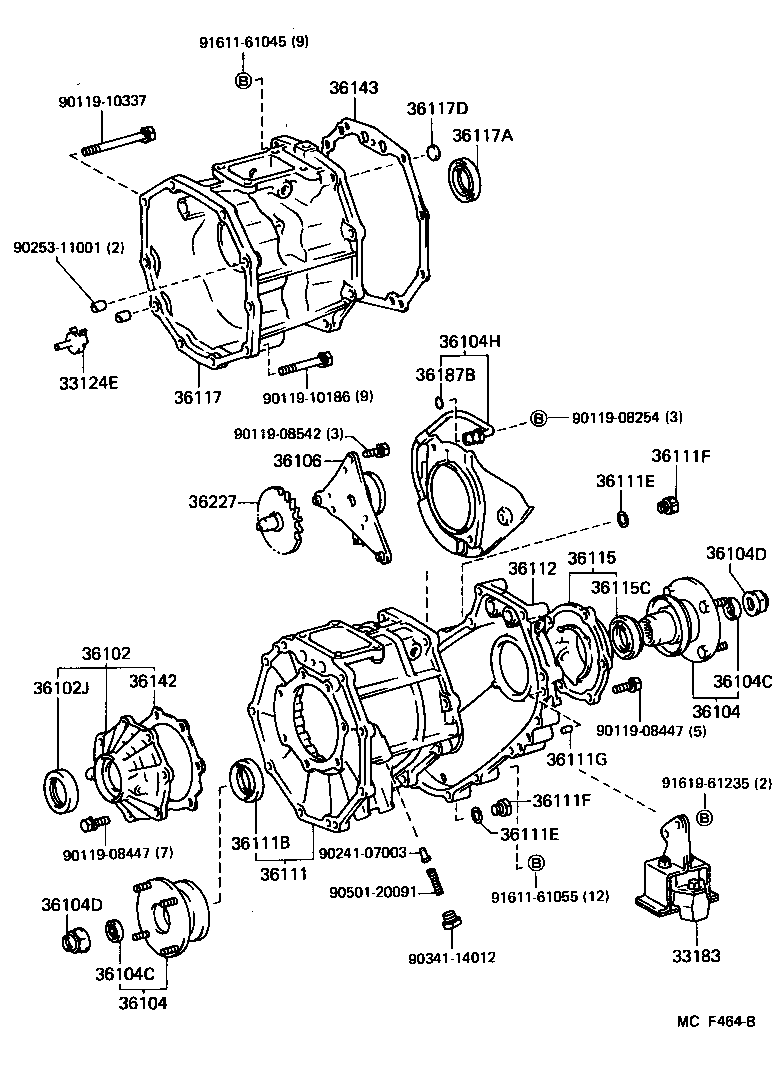

diagram 33124E 33183 36102 36102J 36104 36104 36104C 36104C 36104D 36104D 36104H 36106 36111 36111B 36111E 36111E 36111F 36111F 36111G 36112 36115 36115C 36117 36117A 36117D 36142 36143 36187B 36227 9011908254 9011908447 9011908447 9011908542 9011910186 9011910337 9024107003 9025311001 9034114012 9050120091 9161161045 9161161055 9161961235
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-36010

VZN6#..R

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-35032

VZN6#..4FC

 1
33183-35010

VZN6#..R

 1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-35011

VZN6#..R

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40007

VZN6#..R

 1
36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
33309-35070

VZN6#..R

RR DRIVE

 1
33309-35061

VZN6#..R

FR DRIVE

 1
33309-35080

VZN61..R

RR DRIVE

 1
36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)
33309-35070

VZN6#..R

RR DRIVE

 1
33309-35061

VZN6#..R

FR DRIVE

 1
33309-35080

VZN61..R

RR DRIVE

 1
36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT)
90312-23001

VZN6#..R

 2
36104C - SEAL, DUST (FOR TRANSFER OUTPUT SHAFT)
90312-23001

VZN6#..R

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

VZN6#..R

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

VZN6#..R

 2
36104H - SEPARATOR SUB-ASSY, TRANSFER OIL
36104-35010

VZN6#..R

 1
36106 - BODY SUB-ASSY, TRANSFER OIL PUMP
36106-35021

VZN6#..R

 1
36111 - CASE, TRANSFER
36101-35010

VZN6#..R

 1
36101-35020

VZN61..R

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-41006

VZN6#..R

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

VZN6#..R

L=14,OD=10

 1
36112 - CASE, TRANSFER, REAR
36112-35020

VZN6#..R

 1
36115 - HOUSING, TRANSFER EXTENSION
36105-35020

VZN6#..R

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41005

VZN6#..R

 1
36117 - ADAPTER, TRANSFER
36117-35071

VZN6#..R

 1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-40007

VZN6#..R

 1
36117D - PLUG(FOR TRANSFER ADAPTER)
90311-18010

VZN6#..R

 1
36142 - GASKET, TRANSFER COVER
36142-35010

VZN6#..R

 1
36143 - GASKET, TRANSFER CASE, FRONT
36143-35020

VZN6#..R

T=0.3

 1
36143-35030

VZN61..R

T=0.3

 1
36187B - RING, O (FOR TRANSFER OIL STRAINER)
96721-19012

VZN6#..R

 1
36227 - GEAR, TRANSFER OIL PUMP
36227-35010

VZN6#..R

 1
Common parts
90119-08254
90119-08447
90119-08542
90119-10186
90119-10337
90241-07003
90253-11001
90341-14012
90501-20091
91611-61045
91611-61055
91619-61235

(8711- )VZN6#..4FC

Click highlighted areas on diagram

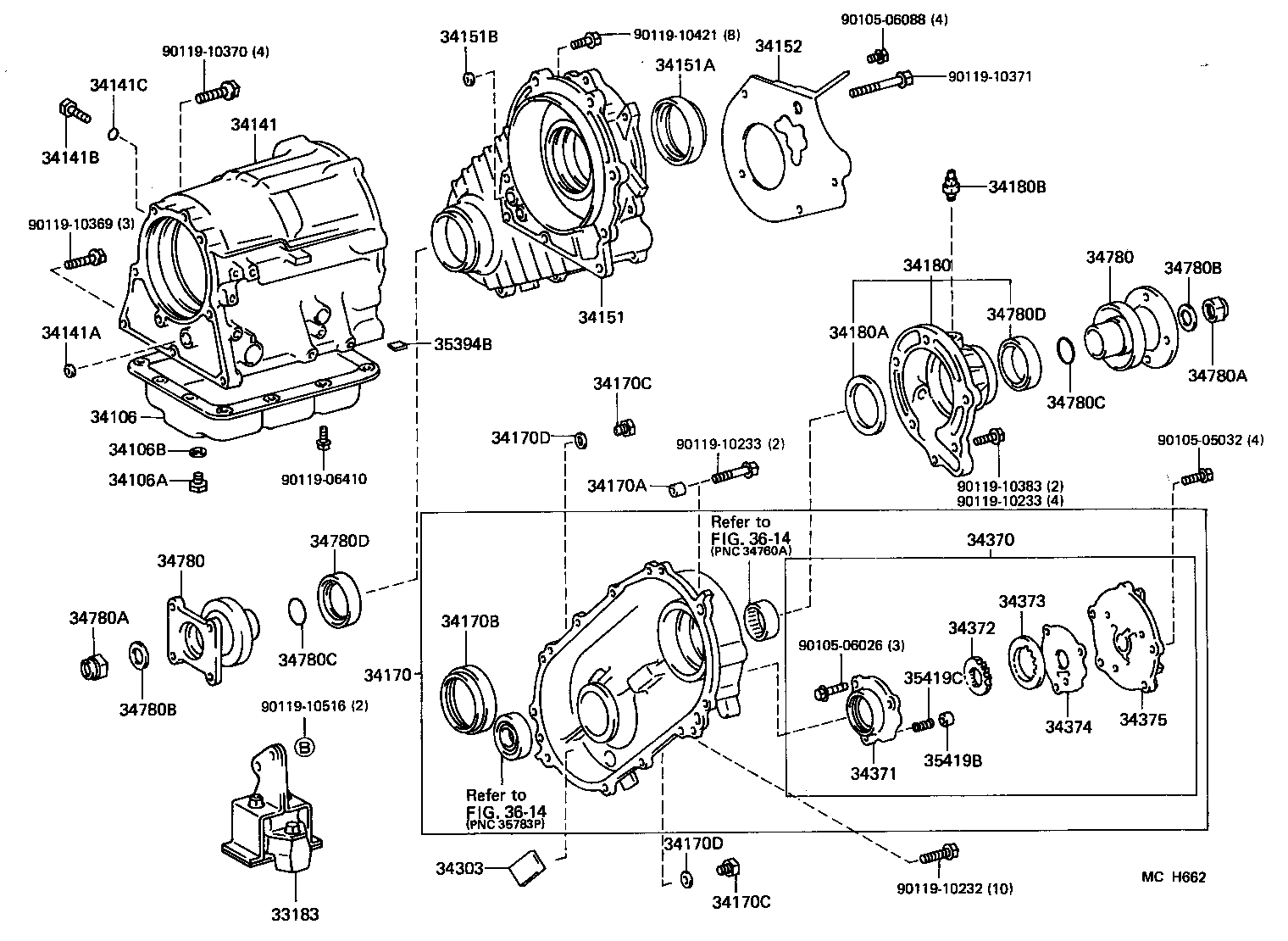

diagram 33183 34106 34106A 34106B 34141 34141A 34141B 34141C 34151 34151A 34151B 34152 34170 34170A 34170B 34170C 34170C 34170D 34170D 34180 34180A 34180B 34303 34370 34371 34372 34373 34374 34375 34780 34780 34780A 34780A 34780B 34780B 34780C 34780C 34780D 34780D 35394B 35419B 35419C 3614 3614 9010505032 9010506026 9010506088 9011906410 9011910232 9011910233 9011910233 9011910369 9011910370 9011910371 9011910383 9011910421 9011910516
Part # Description Qty Price
33183 - DAMPER, TRANSFER DYNAMIC
33183-35032

VZN6#..4FC

 1
33183-35010

VZN6#..R

 1
34151 - CASE, TRANSFER CHAIN, FRONT
34151-35040

VZN6#..4FC

 1
34151-35041

VZN6#..4FC

 1
34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE)
90310-77001

VZN6#..4FC

OD=77

 1
90310-58001

VZN6#..4FC

OD=75

 1
34152 - RECEIVER, TRANSFER CHAIN OIL
34152-35020

VZN6#..4FC

 1
34170 - CASE ASSY, TRANSFER CHAIN, REAR
34170-35030

VZN6#..4FC

 1
34170-35031

VZN6#..4FC

 1
34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE)
90310-77001

VZN6#..4FC

FR,OD=77

 1
90310-58001

VZN6#..4FC

RR,OD=75

 1
34780 - YOKE ASSY, FLANGE
34780-35030

VZN6#..4FC

FR

 1
34780 - YOKE ASSY, FLANGE
34780-35030

VZN6#..4FC

FR

 1
Common parts
90105-05032
90105-06026
90105-06088
90119-06410
90119-10232
90119-10233
90119-10369
90119-10370
90119-10371
90119-10383
90119-10421
90119-10516
Linked diagrams
