VZN61LG-MSEA (1987)
Toyota 4-Runner Truck
Production
Nov 1987
-
Mar 1989
Engine
3VZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8711- )3VZE

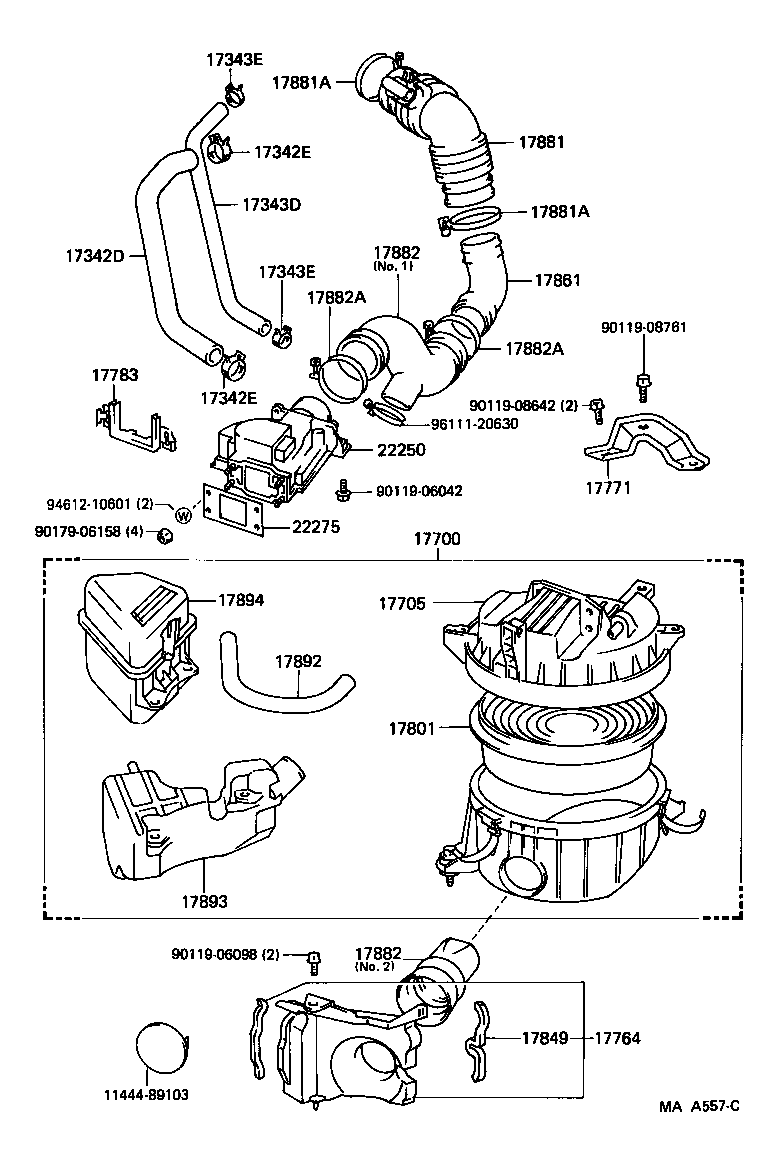

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-65010 |
3VZE..VZN6# |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90467-23007 |
3VZE..VZN6# |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90467-23007 |
3VZE..VZN6# |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-65010 |
3VZE..VZN6# |
1 | ||
| 17343-65011 |
3VZE..VZN61 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-15004 |
3VZE..VZN61 |
2 | ||
| 90467-13036 |
3VZE..VZN6# |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-15004 |
3VZE..VZN61 |
2 | ||
| 90467-13036 |
3VZE..VZN6# |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-65011 |
3VZE..VZN61 |
1 | ||
| 17700-65010 |
3VZE..VZN6# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-65010 |
3VZE..VZN6# |
1 | ||
| 17764 - DUCT, AIR CLEANER | ||||
| 53207-89107 |
3VZE..VZN6# |
1 | ||
| 17771 - BRACKET, AIR CLEANER INLET DUCT | ||||
| 17771-65010 |
3VZE..VZN6# |
1 | ||
| 17783 - PLATE, AIR CLEANER BAFFLE | ||||
| 17783-65010 |
3VZE..VZN6# |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70020 |
3VZE..VZN6# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-65010 |
3VZE..VZN6# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-65010 |
3VZE..VZN6# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
3VZE..VZN6# |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
3VZE..VZN6# |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-65010 |
3VZE..VZN6# NO.1 |
1 | ||
| 17882-89114 |
3VZE..VZN6# NO.2 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-65010 |
3VZE..VZN6# NO.1 |
1 | ||
| 17882-89114 |
3VZE..VZN6# NO.2 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3VZE..VZN6# |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3VZE..VZN6# |
2 | ||
| 17892 - HOSE, INTAKE AIR RESONATOR | ||||
| 17892-65010 |
3VZE..VZN6# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-65010 |
3VZE..VZN6# |
1 | ||
| 17893-65011 |
3VZE..VZN61 |
1 | ||
| 17894 - BRACKET, RESONATOR | ||||
| 17894-65010 |
3VZE..VZN6# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-65010 |
3VZE..VZN6# |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-41010 |
3VZE..VZN6# |
1 | ||
| Common parts | ||||
| 11444-89103 | ||||
| 90119-06042 | ||||
| 90119-06098 | ||||
| 90119-08642 | ||||
| 90119-08761 | ||||
| 90179-06158 | ||||
| 94612-10601 | ||||
| 96111-20630 | ||||
