VZN61LG-MSEA (1987)
Toyota 4-Runner Truck
Production
Nov 1987
-
Mar 1989
Engine
3VZE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

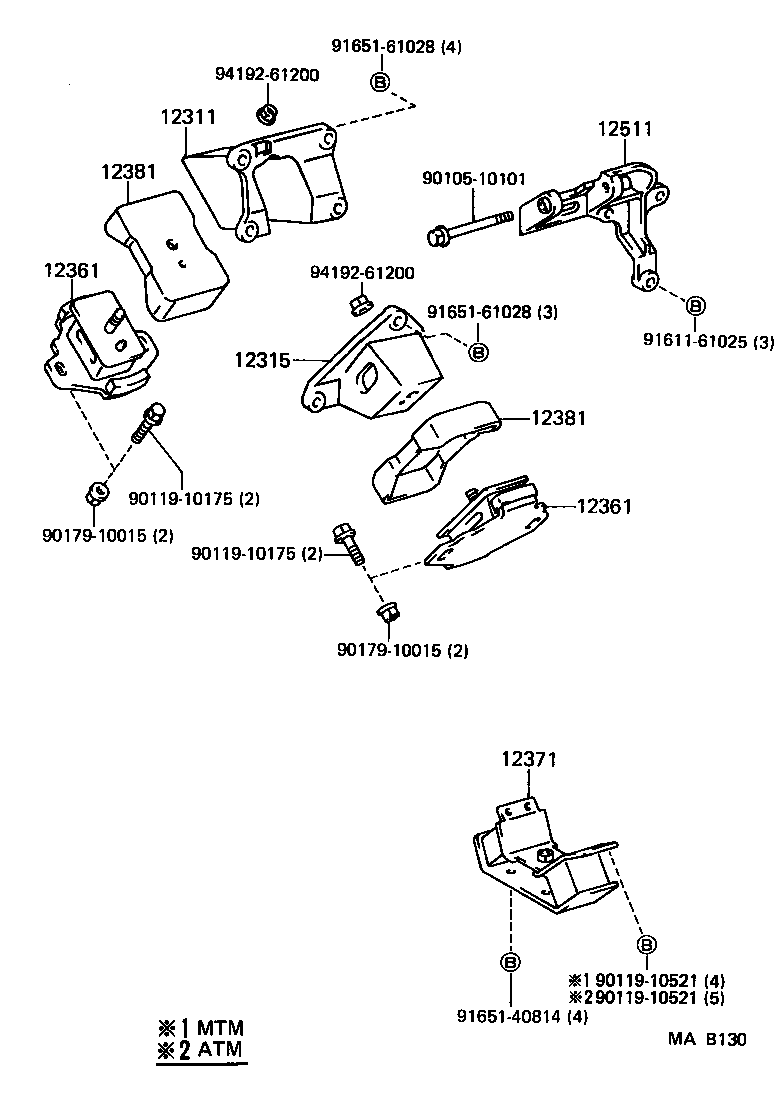

(8711-8808)3VZE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-65010 |
3VZE..VZN6# |
1 | ||
| 12311-65020 |
3VZE..VZN61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-65010 |
3VZE..VZN6# |
1 | ||
| 12315-65020 |
3VZE..VZN61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-65010 |
3VZE..VZN6# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-65010 |
3VZE..VZN6# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-65010 |
3VZE..VZN6#..R |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65011 |
3VZE..VZN61 |
2 | ||
| 12381-65010 |
3VZE..VZN6# |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65011 |
3VZE..VZN61 |
2 | ||
| 12381-65010 |
3VZE..VZN6# |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-65010 |
3VZE..VZN6# |
1 | ||
| Common parts | ||||
| 90105-10101 | ||||
| 90119-10175 | ||||
| 90119-10521 | ||||
| 90179-10015 | ||||
| 91611-61025 | ||||
| 91612-61020 | ||||
| 91651-40814 | ||||
| 94192-61200 | ||||

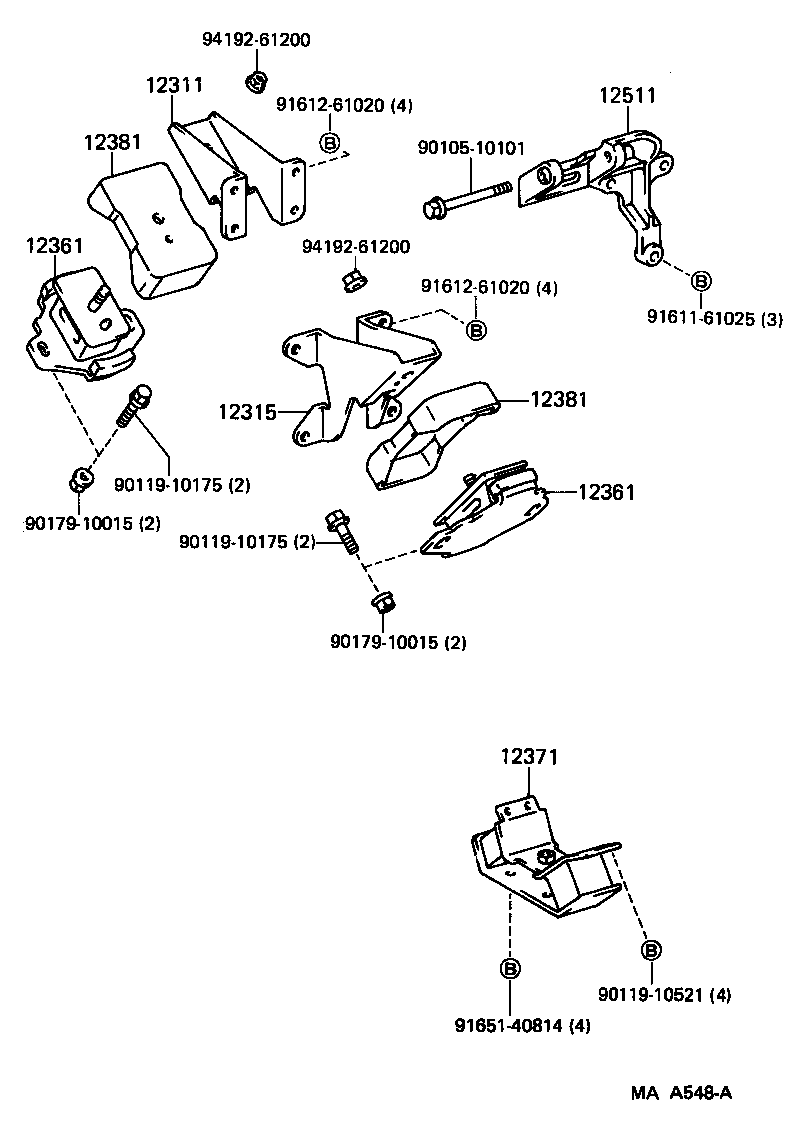

(8808- )3VZE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-65010 |
3VZE..VZN6# |
1 | ||
| 12311-65020 |
3VZE..VZN61 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-65010 |
3VZE..VZN6# |
1 | ||
| 12315-65020 |
3VZE..VZN61 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-65010 |
3VZE..VZN6# |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-65010 |
3VZE..VZN6# |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-65010 |
3VZE..VZN6#..R |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65011 |
3VZE..VZN61 |
2 | ||
| 12381-65010 |
3VZE..VZN6# |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-65011 |
3VZE..VZN61 |
2 | ||
| 12381-65010 |
3VZE..VZN6# |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-65010 |
3VZE..VZN6# |
1 | ||
| Common parts | ||||
| 90105-10101 | ||||
| 90119-10175 | ||||
| 90119-10521 | ||||
| 90179-10015 | ||||
| 91611-61025 | ||||
| 91651-40814 | ||||
| 91651-61028 | ||||
| 94192-61200 | ||||
