VZN61L-MBEA (1987)

Toyota 4-Runner Truck

Production Nov 1987 - Aug 1988
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8808)T1

Click highlighted areas on diagram

diagram 82151 82151A 82151B 82152 82152A 82152B 82164 82164 82171 82171 82187 82187 9011906005 9011906005
Part # Description Qty Price
82171 - WIRE, ROOF, NO.1
82171-89105

LN5#,65,RN5#,6#..T1

 1
82171 - WIRE, ROOF, NO.1
82171-89105

LN5#,65,RN5#,6#..T1

 1
Common parts
90119-06005

(8711- )VZN6#

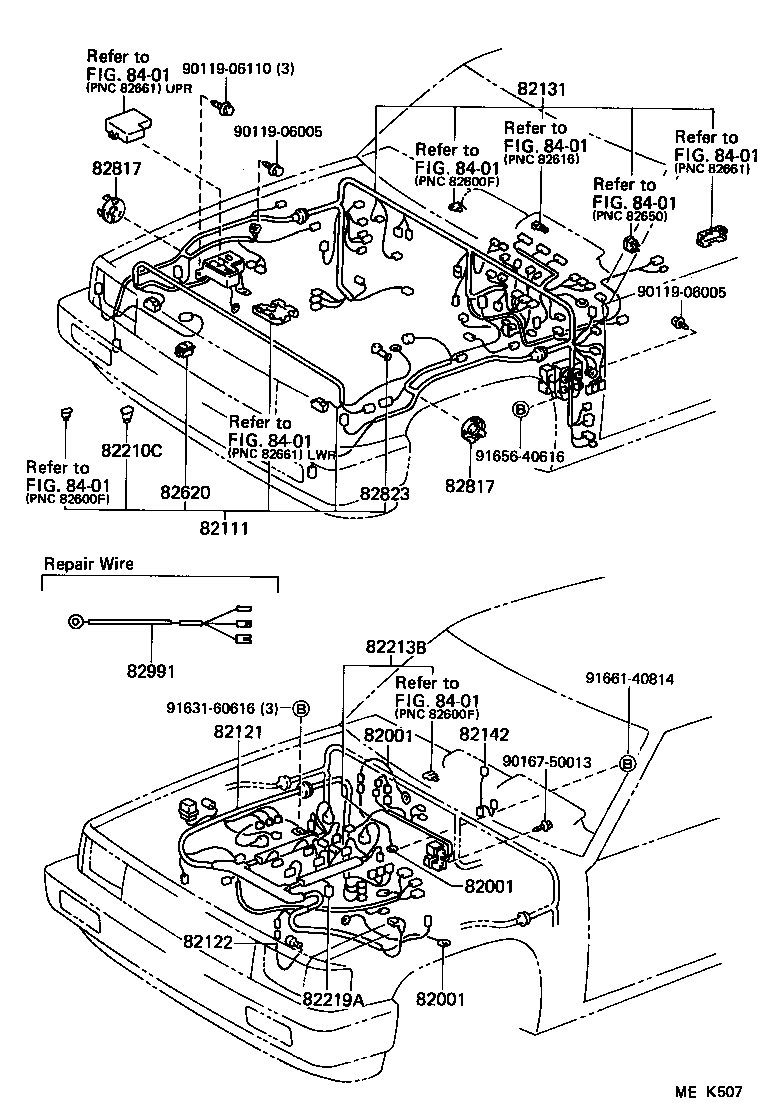

Click highlighted areas on diagram

diagram 82001 82001 82001 82111 82121 82122 82131 82142 82210C 82213B 82219A 82620 82817 82817 82823 82991 8401 8401 8401 8401 8401 8401 8401 8401 9011906005 9011906005 9011906110 9016750013 9163160616 9165640616 9166140814
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07297

VZN6#

ENGINE-SURGE TANK

 1
90980-07224

RN5#,6#

ENGINE-FENDER APRON RH

 1
90980-07269

VZN6#

ENGINE-DASH PANEL

 1
90980-07108

RN5#,6#,7#

ENGINE-DASH PANEL

 1
82001 - CABLE, BOND, NO.1
90980-07297

VZN6#

ENGINE-SURGE TANK

 1
90980-07224

RN5#,6#

ENGINE-FENDER APRON RH

 1
90980-07269

VZN6#

ENGINE-DASH PANEL

 1
90980-07108

RN5#,6#,7#

ENGINE-DASH PANEL

 1
82001 - CABLE, BOND, NO.1
90980-07297

VZN6#

ENGINE-SURGE TANK

 1
90980-07224

RN5#,6#

ENGINE-FENDER APRON RH

 1
90980-07269

VZN6#

ENGINE-DASH PANEL

 1
90980-07108

RN5#,6#,7#

ENGINE-DASH PANEL

 1
82121 - WIRE, ENGINE
82121-89177

VZN6#..R

 1
82121-89109

RN5#,6#..(DLX,STD)..(3QT,HLF)

 1
82122 - WIRE, ENGINE, NO.2
82122-89106

VZN6#..DLX,STD

 1
82122-89107

VZN6#..(DLX,STD)..USA

*CAL OR W/TACHOMETER

 1
82131 - WIRE, COWL
82131-89584

VZN61..(V,WG)..R

POWER PACKAGE

 1
82131-89585

VZN61..(V,WG)..R..USA

W/*CRC,POWER PACKAGE

 1
82131-89565

VZN61..STD

 1
82131-89583

VZN61..(V,WG)..R

W/*CRC

 1
82131-89582

VZN61..(V,WG)..R

 1
82210C - FUSIBLE LINK
90982-08203

LN5#,6#

80A,TERM.:MALE,BLK,80A

 1
90982-08190

RN5#,6#

60A,TERM.:FEMALE,YEL,60A

 1
90982-08202

LN5#,6#

60A,TERM.:MALE,YEL,60A

 1
90982-08188

LN5#,6#,RN5#,6#,7#,VZN6#

30A,TERM.:FEMALE,PNK,30A

 1
82213B - WIRE, HEATER
82213-89102

LN5#,6#,RN5#,6#,7#

FR

 1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-30020

LN5#,6#

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16020

LN5#,6#,RN5#,6#,7#,VZN6#

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16020

LN5#,6#,RN5#,6#,7#,VZN6#

 2
82823 - CAP, TERMINAL, NO.1
82823-22040

RN5#,6#,75..EFI,TBO

OD=27

 1
82823-30020

RN5#,6#,75..EFI,TBO

OD=33

 1
82823-22020

LN5#,65,RN5#,6#

ALTERNATOR

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-89102

LN5#,6#

 1
82991-89101

RN5#,6#,7#

 1
Common parts
90119-06005
90119-06110
90167-50013
91631-60616
91656-40616
91661-40814
Linked diagrams
8401
